LED Driver Controller from Diodes Incorporated Handles More Demanding Lighting Applications

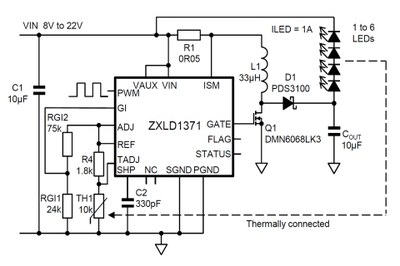

Typical application diagram for buck-boost solution utilizing a thermistor and TADJ
Features:
• 0.5% typical output current accuracy
• 5 to 60V operating voltage range
• LED driver supports Buck, Boost and Buck-boost
• configurations
• Wide dynamic range dimming
10:1 DC dimming
1000:1 dimming rangeat500Hz
• Up to 1 MHz switching
• High temperature control of LED current using TADJ
• Available in Automotive Grade with AEC-Q100 and TS16949 certification
• Available in “Green” Molding Compound (No Br, Sb) with lead Free Finish! RoHS Compliant (Note 1)
Note 1: EU Directive 20021951EC (RoHS) & 2011/65/EU (R0HS 2). All applicable RoHS exemptions applied.
Employing patent pending control loops and single resistor high-side current sensing, the ZXLD1371 will deliver a typical output current tolerance of 1%, helping to produce improvements in brightness control and lamp luminance matching. The LED driver controller offers users dimming over a wide dynamic range, through separate 20:1 DC dimming and 1000:1 PWM dimming options, resulting in higher accuracy light control particularly at lower brightness levels.
To further improve the reliability of LED lamp systems, the ZXLD1371 provides thermal management of LEDs via a dedicated external thermistor input, which combined with fault diagnostic outputs reporting LED load and driver status, helps to increase LED longevity. Switching at up to 1MHz, the TSSOP-16EP packaged LED driver controller will also help minimize circuit size by reducing the value of the external inductor. For further information, visit the Company’s website at www.diodes.com or download the datasheet.
