Bridgelux Launches DriveLux ™ 3CCT and RGBW with Casambi Controls

Bridgelux, a leading innovator in LED lighting technologies, today announced the launch of its new DriveLux™ Bluetooth-controlled light engines. Developed in partnership with Casambi, a pioneer in wireless lighting control solutions, the DX3-C (triple CCT) and DX4-C (RGBW) models integrate…

Published by LED professional ·

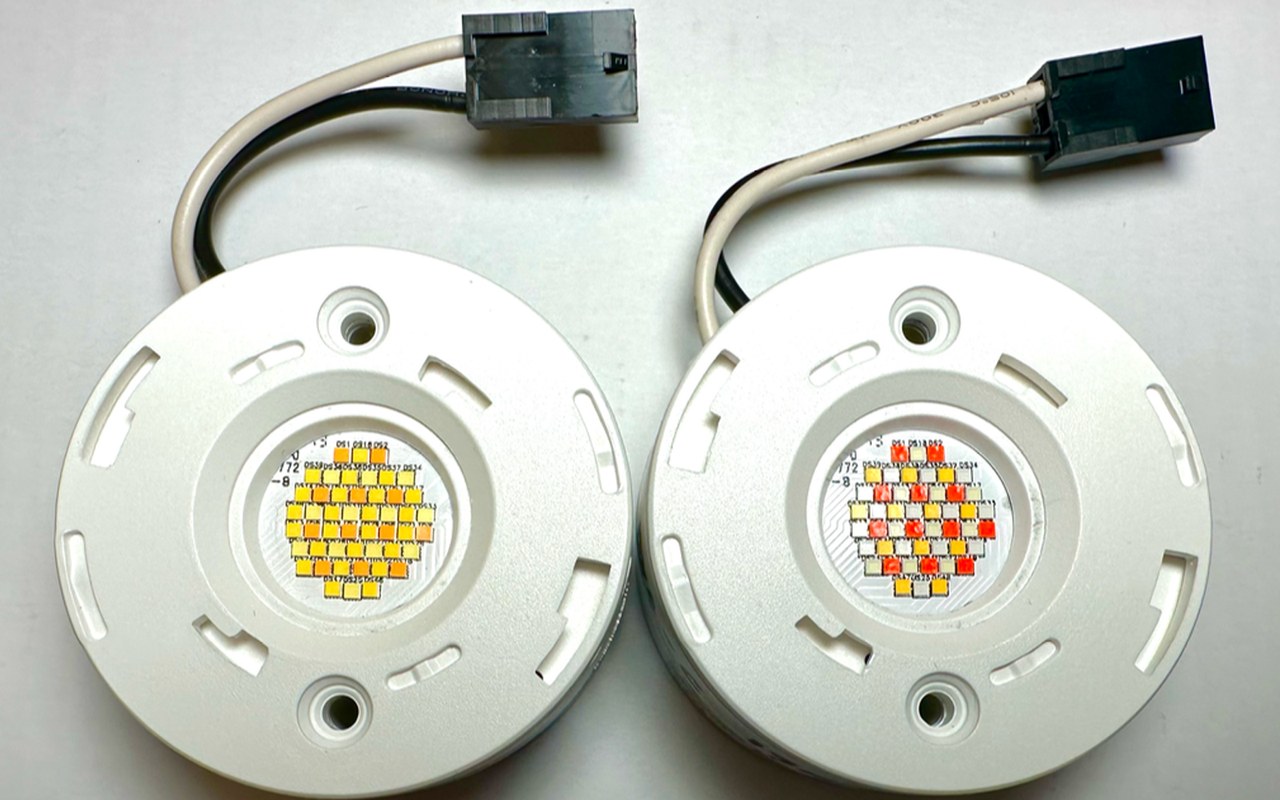

Bridgelux Launches DriveLux ™ 3CCT and RGBW with Casambi Controls

The DriveLux DX3-C-L13 triple CCT model enables smooth color temperature tuning from 1800K to 6500K along the Black Body Locus (BBL), maintaining tight color consistency within 2 MacAdam ellipse steps of ANSI CIE specifications. Operating at approximately 23W (13mm LES) with CRI 90, it delivers high lumen outputs of ~2400 lumens at 2700K and ~2600 lumens at 4000K. This makes it ideal for human-centric lighting in hospitality, retail, and residential settings requiring precise, high-quality white light adjustment.

The DriveLux DX4-C-L13 RGBW model extends versatility with tunable white from 1800K to 6500K along the BBL (within 3 MacAdam ellipse steps) plus full RGB color mixing for dynamic scenes and a wide color gamut. Powered by advanced CSP technology using blue and green GaN chips with narrow-band KSF-converted red, the tunable white is available in CRI 90 and CRI 95 options. At approximately 22W (13mm LES), it provides ~2050 lumens (CRI 90) or ~1950 lumens (CRI 95) at 2700K, and ~2350 lumens (CRI 90) or ~2250 lumens (CRI 95) at 4000K—perfect for accent lighting, immersive experiences, and applications in commercial, architectural, and entertainment environments.

“Partnering with Casambi has allowed us to create a fully integrated light engine that simplifies design while enabling powerful wireless control,” said Dr. Yiqun Li, CEO of Bridgelux. “The DriveLux DX3-C and DX4-C combine exceptional performance, a compact form factor, and easy configuration via the Casambi app—empowering designers and manufacturers to deliver smarter, more adaptable lighting solutions with reduced complexity and faster time-to-market.”

Key features of the DriveLux series include:

  • Seamless integration of COB array, driver, and Casambi Bluetooth wireless controls
  • Compact, replaceable design for straightforward installation and maintenance
  • High-efficacy tunable white along the BBL with excellent color consistency
  • Broad color gamut RGBW mixing for creative and functional applications
  • High-CRI options (up to 95) for superior color rendering

The new DriveLux light engines are now available for sampling and production orders through Bridgelux and authorized distributors. For more information, including datasheets, specifications, and Casambi integration details, visit www.bridgelux.com or contact Bridgelux sales. Visit us at Light+Building (March 8–13, 2026, Frankfurt, Germany) for live demonstrations in Hall 8, Stand C70.
