Home > Products & Services > Lumitronix Announces MiniController Casambi Classic and LED Modules for Ledil's Dark Light Optics Daisy-Mini
SSL | Smart Lighting + IoT | LED Modules | LED Drivers | Components | Mar 03, 2020

Lumitronix Announces MiniController Casambi Classic and LED Modules for Ledil's Dark Light Optics Daisy-Mini

Among the new products prepared for Light + Building 2020 by Lumitronix are the MiniController Casambi Classic and the MiniDaisy LED modules. The control unit for LED modules with Tunable White technology are extremely compact and can be conveniently operated via smartphone or tablet using the Casambi App, while the MiniDaisy LED modules which were designed in close cooperation with the Finnish optics manufacturer Ledil are compatible with the new Daisy-Mini linear optics and are intended for use in office or workplace luminaires.

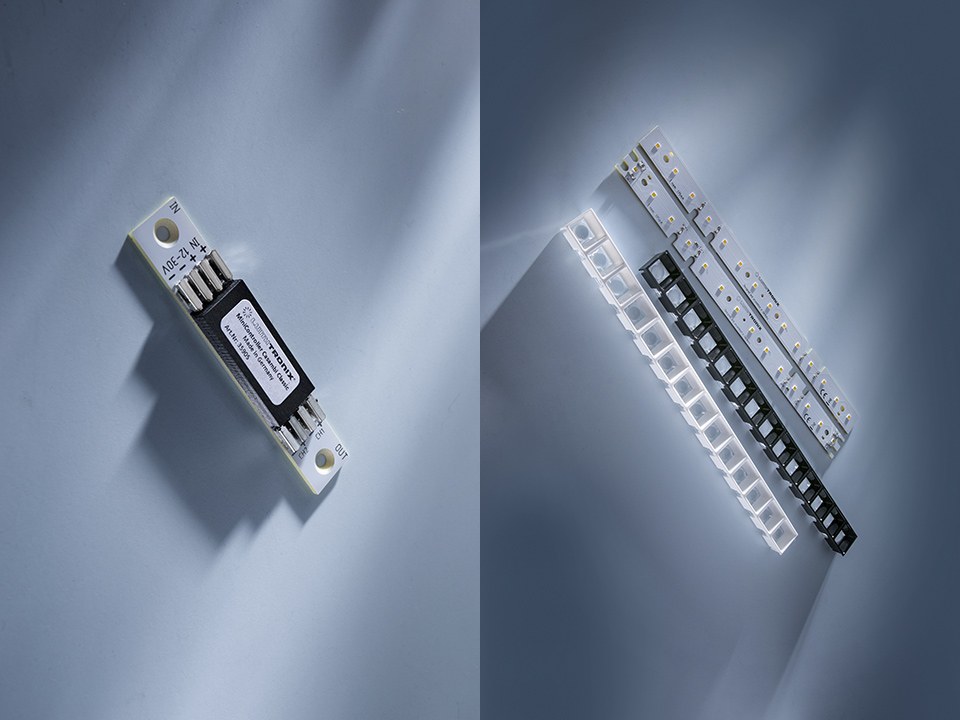

MiniController Casambi Classic for smart tunable white operation

The control unit for LED modules with Tunable White technology is just 8 cm long and 1.4 cm wide. Christian Hoffmann, CEO of the Swabian company, summarizes the features of the tiny control unit:

"Two channels can be used to control either one Tunable White module or two monochrome modules with a constant voltage of 12 to 24 V. The controller supports up to 3.5 A per channel. The standby power is approx. 150 mW at a voltage of 24 V. With the help of the Bluetooth-based app from the Finnish technology company Casambi, which is available free of charge for iOS and Android devices, the brightness and color temperature of the LED modules connected to the MiniController can be individually controlled. A Dim2Warm mode can also be implemented. Furthermore, the app can be used to determine whether the last selected brightness and color temperature values should be retained after a voltage interruption."

The very small dimensions of the MiniController Casambi Classic from Lumitronix make it ideal for an integration into a wide range of luminaire types. Moreover, the prepared drill holes with countersink for M3 screws make an installation easier.

LED modules for Ledil's dark light optics Daisy-Mini

Daisy-Mini is an extension of Ledil's Dark Light concept, which aims to provide unobtrusive and discreet lighting that creates a more natural atmosphere. Only 21 mm wide, it offers a linear solution for luminaires and is composed of a seamless and glare-free cover combined with 14 effective lenses. The plastic covers are available in black and white in a matt and glossy version and can be conveniently attached to the rod lenses with a click.

The modules from Lumitronix were produced in two versions. The first is equipped with 14 neutral white Nichia LEDs of the 757 series over a length of 279.65 mm. The second version contains 14 of the new 2in1 Tunable White LEDs from Nichia over the same length. This new type of light-emitting diode is the first in the world to combine a colour temperature range of 2700 to 6500 Kelvin under one phosphor layer, thus enabling finer colour matching and mixing. In combination with the Daisy-Mini linear lenses, the LED modules from Lumitronix allow particularly filigree luminaire designs to be created in the field of office lighting.

For additional information on Lumitronix's product innovations, please visit b2b.lumitronix.com/en/ or email to b2b@leds.de

About Lumitronix:

Lumitronix has been one of the leading specialists for LEDs and LED products for many years. As a competent partner for the industry, Lumitronix possesses broad application knowledge from numerous sectors. The Swabian company, based in Hechingen, Germany, has ISO 9001 certification and is also the official distributor of market-leading manufacturers of LED technology. Lumitronix is not only involved in the distribution of LED products, but also develops and manufactures in-house according to customer-specific requirements. Two ultra-modern production lines with the latest machine technology allow the assembly of both rigid and flexible PCBs. A special feature of the flex production is the reel-to-reel processing, with which almost endless lengths can be realized. The production site in Hechingen furthermore provides the benefit of being able to respond quickly and reliably to individual customer wishes and requirements. Quality Made in Germany. https://b2b.lumitronix.com/en/
