High Bay LED Driver of Efficiency 95%

LIFUD just launched its 1ST generation of high bay driver, LF-FHBxxxYD/YE, for European market and Asian Pacific market. There’s a 12V cable reserved for connecting the driver to smart modules like sensors, Zigbee modules, DALI modules, etc. This 12V cable makes it flexible to meet various demands of smart control application.

Currently the latest featured solution consists of a high bay driver, a smart sensor and a remote control. When LF-FHBxxxYD/YE works with a smart sensor (microwave sensor and light sensor integrated), the light can turn on/off automatically. If you want to set the reaction of the high bay light according to your own preference, a remote control is provided. And it has on/off function, stage dimming bottom, 4 default scenes, also the light-on time, standby time, the active brightness, the standby brightness, the induction zone and the light sensor’s active threshold of luminescent intensity can all be set even after the high bay lights have been well installed up in the air. When daylight changes, the high bay lights’ brightness can be adjusted automatically. This solution provides not only excellent application experience but also secondary energy saving effect.

LF-FHBxxxYD/YE is of AC220-240V (max. 165-265V), DC80-130V. Six certificates: ENEC, TUV, CB, CE, RCM, SAA. Five years warranty. Four options of output power: 110W, 150W, 200W & 260W. 3 in 1 dimming mode: 0-10V dimming, PWM dimming & resistance dimming. Dimming range is from 0-100%. There’s a potentiometer on top of the driver, you can adjust the luminance of the light after the driver being installed to the light fixture. IP65 for high humidity indoor application, such as warehouse, supermarket, factory, exhibition hall, etc.

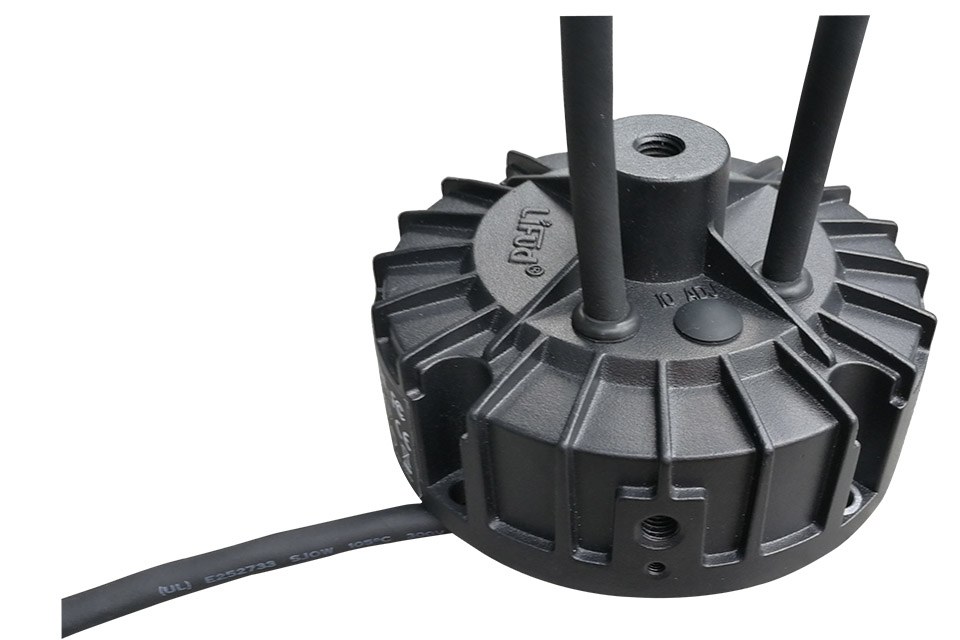

The structure design of the LED driver’s housing is ensures that the light fixture can be hung by a hanger rod, a hanging ring or a bracket. The bracket can be directly fixed on the housing with screws. No extra parts are needed. Less parts, less cost.

Non-isolated design of the driver makes it possible to reach higher efficiency, 95%. Higher efficiency means higher light efficacy and less energy consumption. By the way, it can be dimmed to OFF without cutting off the AC power. The stand-by power of the driver is less than 1W. This design plays a very important role in energy conservation. On the other hand, although LF-FHBxxxYD/YE is of non-isolated design, you don’t need worry about safety problem. LF-FHBxxxYD/YE is equipped with all-round protection, including surge protection, over voltage protection, short circuit protection and over-temperature protection.

Super high efficiency, branded components and excellent heat dissipation property strengthen the product quality and expand the product’s lifetime. Lifud has been specialized in LED drivers for indoor application for 11 years. And we are dedicated to providing the global clients with green lighting solutions and products of solid quality. (Email: sales@lifud.com, Web: www.lifud.com)
