Components | Electronics | Driver Modules | Outdoor Applications | Jan 16, 2019

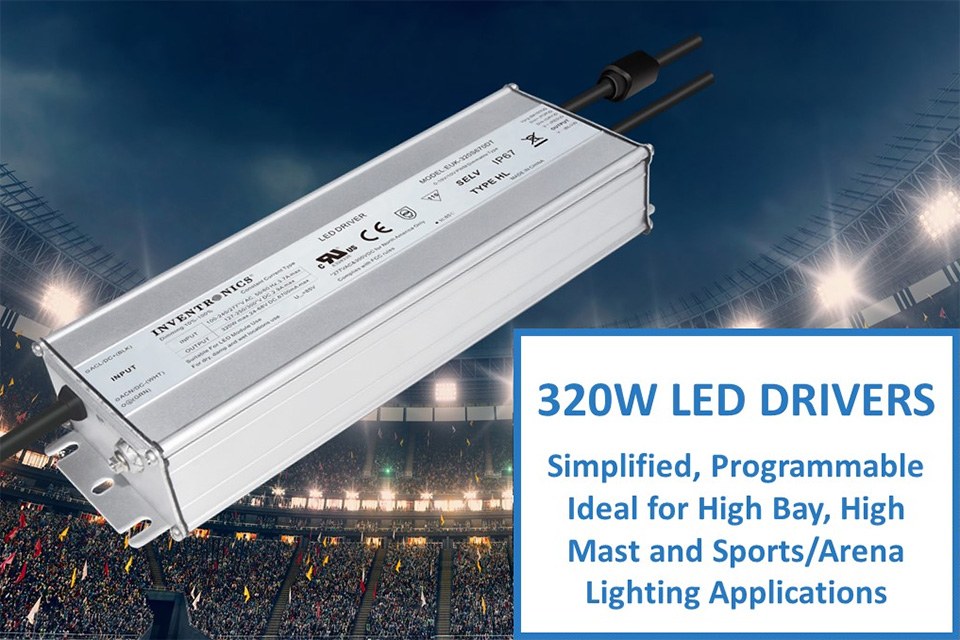

Inventronics Expands Cost-Effective, Programmable LED Driver Family

Inventronics has expanded their EUK family of programmable, constant-power and IP67 LED drivers to include models at power levels of 320 W. These new models are in addition to already extensive power level range which includes 75 W, 96 W, 150 W, 200 W and 240 W models. The EUK family is well suited for applications that do not require enhanced features such as always-on auxiliary power, controls-ready features or multiple timer dimming capabilities. By optimizing the features including isolated 0-10 V and 10 V PWM dimming, there is now a more cost-effective product that still offers design flexibility, high efficiency and a reliable performance.

Main Features:
•    Programmable, Enabling Hundreds of Configurations
•    Constant Power at a Wide Output Current Range
•    Dimming Controls:
     Isolated, 0-10 V, 10 V PWM
•    Input Surge Protection:
     6kV DM, 10 kV CM
•    SELV Output
•    UL Dry, Damp, Wet Location (DT Version only)
•    TYPE HL, for use in a Class I, Division 2 Hazardous Location

The EUK-320SxxxDT and EUK-320SxxxDV operate from 90-305 Vac input and the rugged, extruded-metal housing is IP67 rated which is ideal for harsh indoor and outdoor conditions such as high bay, high mast and sports/arena lighting. Each series offers five constant-power, programmable models delivering 320 W at output currents from 1050 mA to 6700 mA including SELV output.  The EUK-320SxxxDT is suitable for use in North America and offers TYPE HL, for use in a Class I, Division 2 Hazardous Location.  The EUK-320SxxxDV is suitable for use in Europe and other regions for built-in independent use.

The EUK-320 series is highly reliable with a superior level of built-in surge protection (6 kV DM, 10 kV CM). Additional protection features include: over-voltage, over-temperature, and short-circuit protection. The lifetime of these drivers is calculated to be at least 86,000 hours when operating at 80% load.

This new family is approved to UL, FCC, CE, ENEC, TUV, CB, CCC, PSE, KC, BIS and RCM certifications. Production quantities of the EUK-320SxxxDT and the EUK-320SxxxDV are available now.

For additional information, please visit www.inventronics-co.com/product/euk-320sxxxdt/ and  www.inventronics-co.com/product/euk-320sxxxdv/

About Inventronics:

Headquartered in Hangzhou, China, Inventronics is a world class enterprise specializing in the design, manufacture, marketing and sales of reliable & innovative LED driver products, now a leading supplier of LED drivers to the global market. Learn more at www.inventronics-co.com
