Products, Materials & Tools | May 24, 2012

The Most Comprehensive Range of Reflectors for LEDs from Khatod

An impressive series of Round Reflectors in many dimensions; Multi-Round-Reflectors based on modular systems in diverse configurations; Square Beam Reflectors for individual or modular use; Unique Anti-Glare Reflectors; LYRA Reflectors for HB COB LEDs equipped with adaptors; Ready-to-use multi-reflectors arrays allowing for linear or extensive structures of desired dimensions. Made of aluminum coated special PC with a protective lacquer; achieve a lighting efficiency over 85%.

Made of  aluminum coated PC with clear protective lacquer, the newest REFLECTORS from Khatod boast an excellent optical efficiency based on our exclusive VACUUM COATING TREATMENT PLANT, custom-designed for the specific optical  treatments of our Reflector Systems for LED applications. The variety of REFLECTORS offered by Khatod is one of the most comprehensive on the market, and that’s not all! They also offer the great opportunity to customize your end application: modular arrays as well as modular multi-reflectors realized in diverse configurations allow to shape your lighting structure as you desire.

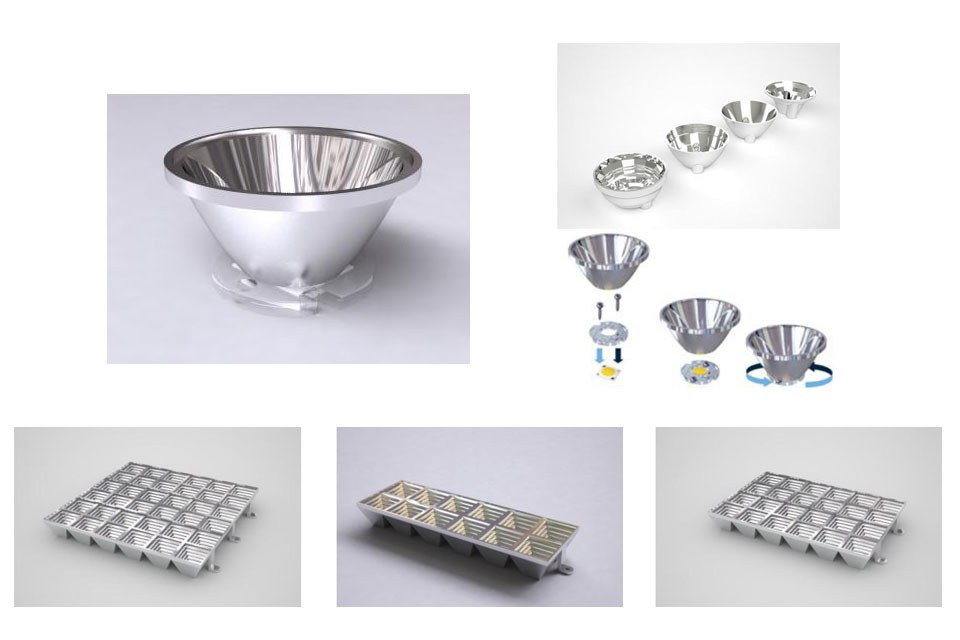

LYRA OPTICAL SYSTEMS for COB LEDs
Made of  aluminum coated special PCHT with a protective lacquer, boast an excellent optical efficiency • Specific for HB COB LEDs • High performance with warm white LEDs • Yellow ring effect totally eliminated • Maximize the luminous flux while achieving a lighting efficiency over 85% • No vibration problems • Easy fixing to the COB LEDs • UV protected and guaranteed for outdoor applications • Any applications in Wide Area Lighting: Industrial Lighting; Indoor Lighting;  Outdoor Lighting;  Architectural lighting • Complying with Zhaga Standards • Complying with UL94 Specifications • Patent pending

This new series of reflectors from Khatod are provided with a special adaptor, customized for the individual models of  COB LEDs, allowing an immediate easy assembling of the reflector by a simple twist & lock block system: first the adaptor is fixed onto the PCB  while the reflector is then fixed by simply twisting and locking it onto the adaptor.

ROUND REFLECTORS for HB and COB LEDs
Specific for High Brightness LEDs and COB LEDs • Available in a great variety of dimensions and in different finishings • Available in 2 different Beams: Narrow Beam (CR version) and Medium Beam (ST version) • Made of  aluminum coated special PCHT with a protective lacquer • High Uniformity • Maximize the luminous flux while achieving a lighting efficiency over 85% • No vibration problems • Applications: Wall Washer; Accent Lighting; Torches; Any applications in Wide Area Lighting: Industrial Lighting; Indoor Lighting;  Outdoor Lighting;  Architectural lighting • Complying with UL94 Specifications • Patent pending

MULTI-ROUND REFLECTORS based on MODULAR SYSTEMS in DIVERSE CONFIGURATIONS
Modular system made of a holder provided with holes able to accommodate diverse reflectors specific for HB and COB LEDs  • Holders: diverse configurations for the housing of 1 to 3-4-7-9-12 reflectors of 80°.  Holder+Reflectors modules offer a “plug-and-play” functionality, ready for use within seconds • Available in a variety of dimensions and finishings •  Made of  aluminum coated PC with a protective lacquer • High Uniformity •  Maximize the luminous flux while achieving a lighting efficiency over 85% • No vibration problems •  Any applications in General LED Lighting: Wall Washer; Accent Lighting; Torches • Applications where a compact light source is required • Complying with UL94  Specifications

ROUND REFLECTORS for POWER LEDs
Available in 2 different Beams: Narrow Beam (CR version) and Medium Beam (ST version) • Available in a  variety of dimensions and in different finishings • Standard 17mm Ø and 20mm Ø • High efficiency • No vibration problems • Typical applications: Portable lighting (flashlights, bicycle….); Lamps •   Architectural lighting; Applications where a compact light source is required • Complying with UL94 Specifications

SQUARE BEAM REFLECTORS for  INDIVIDUAL or MODULAR USE
Special Reflectors realized in rectangular and square shapes, all performing a particular Square Light Spot • High Uniformity • Net Cut-Off • Special design allowing for a dual option: can be used either INDIVIDUALLY or in MODULAR CONFIGURATIONS • Available in different finishings •  Made of  aluminum coated PC with a protective lacquer • Maximize the luminous flux while achieving a lighting efficiency over 85% • No vibration problems • Applications in General LED Lighting: Wall Washer; Accent Lighting; Applications where a compact light source is required • Complying with UL94 Specifications

PIXEL OPTICAL REFLECTOR SYSTEM for HIGH BRIGHTNESS LEDs
Ready-to-use multi-reflectors arrays, from 12  to  24 – 36 – 48 -60 square reflectors • Positioning pegs allow for a Dual Option: easy fixing onto the PCB - or - by removing them from one side, the arrays can be combined together obtaining linear or extensive structures of desired dimensions • Fit for HB LEDs from 100 to 600 lumens and over • Typical square beam • Made of  aluminum coated PC with a protective lacquer • High performance with warm white LEDs • Yellow ring totally eliminated •  High  lighting efficiency •  Excellent luminous flux • No vibration problems • Any applications in Wide Area Lighting, Indoor and Outdoor:  Industrial Lighting, Street Lighting, Architectural Lighting, Billbord Lighting •   Complying with UL94 Specifications • Patent pending

SQUARE REFLECTORS for POWER LEDs
Available in a  variety of beams, shapes and dimensions • Square Spot • High Uniformity • High efficiency • No vibration problems • Typical applications : Linear Lights; Lamps; Ceiling Fixtures; Architectural Lighting; applications where a compact light source is required • Complying with UL94 Specifications

DARK LENS for POWER LEDs
• Anti-glare faceted reflector, 30° beam, MR16, 50 mm Ø, for any Lambertian LED up to 8mm Ø dome • Homogeneous flux • High efficiency •  High performance with warm white LEDs • Operation mode: with 1 – 2 – 3 and 4 LEDs ( min. 100 lm/W each), or with multichip LEDs • Made of new special PC for high performance coating • Innovative design • No vibration problems •  Typical applications : Uplighting / Downlighting ; applications with LEDs in narrow or recessed spaces, or with LEDs in diverse  configurations • Applications where a compact light is required • Complying with UL94 Specifications • Patent pending

For additional information please visit Khatod's Reflector Website

When looking for high quality and innovation in Lighting, look for Khatod first!
- 100% in- house, under our full control, from project to object -
Our aim is to deliver our customers the highest quality level.

About Khatod Optoelectronic:
Khatod lenses have made the mark in the LED Industry for over 25 years.
Now more than ever, Khatod is investing its best engineering and economical efforts in new projects including not only innovative products but also the development of cutting-edge technologies customized by Khatod Engineering, in order to realize high technical optics for the most advanced specifications of the LED Industry. Unique on the international scene,  Khatod holds all of its operations in house (Milano, Italy):  a complete service that combines all of the manufacturing processes, from initial design to time to market. Khatod offers innovative Optical Systems for any application in WAL, a wide range of high technical optics for SSL applications, a proven capability to develop custom optics and a huge choice of optoelectronic components.

Via Monfalcone, 41- 20092 Cinisello B. (Milano) – ITALY - Tel: +39 02 66013695-
Fax: +39 02 66013500 -  Email: khatod@khatod.com - www.khatod.com
