Home > Technologies > LEDs & OLEDs > Epistar Improves Efficacy of Warm-white Light to 170 lm/W with Advanced High-voltage LED Technologies
Technology | Jan 14, 2011

Epistar Improves Efficacy of Warm-white Light to 170 lm/W with Advanced High-voltage LED Technologies

Epistar R & D Center have successfully developed several technologies including the new transparent substrate transfer process, the fine structure for increasing photon extraction efficiency and the improvement on the current spreading uniformity. Based on these technologies, the red LED chip with efficacy of 174 lm/W at Wd of 610 nm is realized.

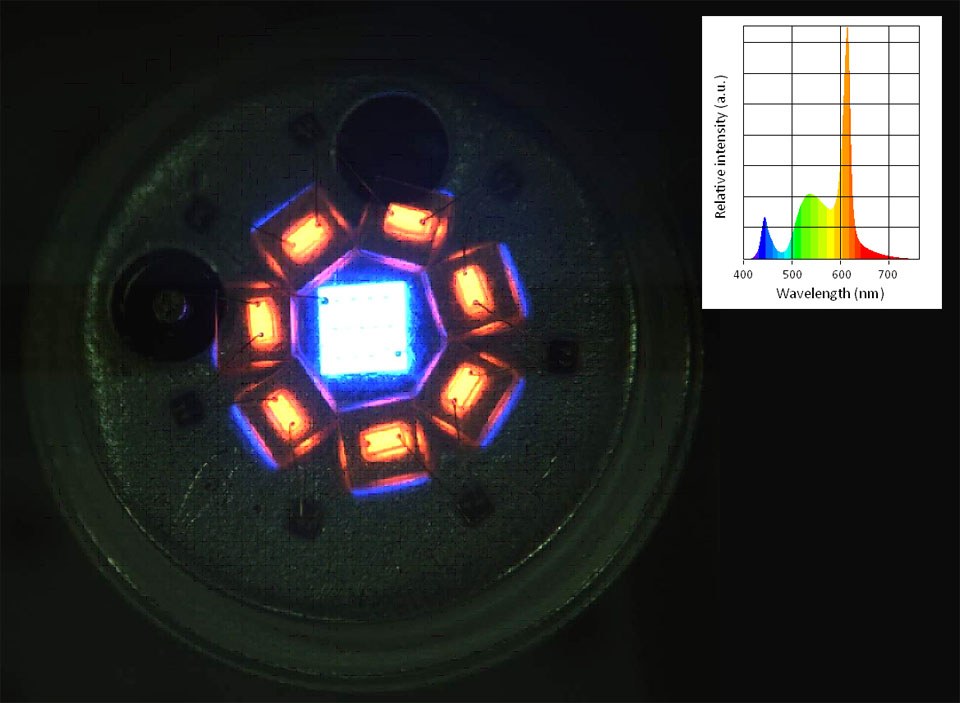

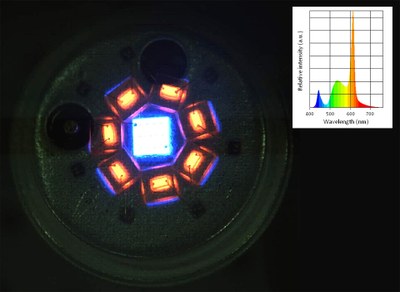

Meanwhile, the high voltage (HV) blue LED is used for exciting a new formula of wavelength conversion material which is different from the traditional composition. As a result, the warm-white light with efficacy of 170 lm/W and CRI of 88 Ra at CCT of 2800 K is achieved. The new records Epistar announced today not only transcend its established schedule but also continue its leadership in the industry. Epistar will continue developing more advanced technologies to enhance product performance and work together with our downstream customers for promoting LED light sources to lighting market.

About Epistar Corporation:
Epistar Corporation, headquartered in the Hsinchu Science-based Industrial Park, Taiwan since September 1996, focuses on developing, manufacturing and marketing high brightness Light Emitting Diode (LED) products. Applying its own proprietary Metal Organic Vapor Phase Epitaxy (MOVPE) technology, Epistar has successfully commercialized the full spectrum range of high brightness LEDs with the characteristics of compact size, low power consumption and long operation life. For further information, please visit: http://www.epistar.com.tw/_english/04_pr/01_overview.php
