Molex Lite-Trap™ SMT Wire-to-Board Connector System, Push-Button Type from Arrow Available

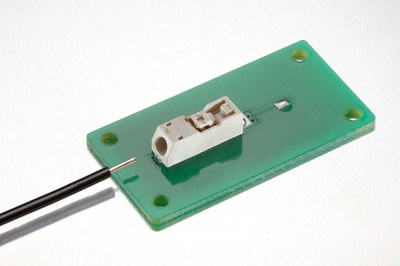

Ideal for thin LED lighting-module applications, Molex’s Lite-Trap™ SMT wire-to-board connectors offer a low profile, easy wire removal, and low wire insertion and high wire retention forces. The product is available at Arrow and samples can be requested.
Features:
• Low profile (4.20mm)
• User-friendly push-button latch
• Dual-contact gate-style terminal design
• Long wire insulation design
• Compact industry-standard PCB pattern layout
Applications:
• Lighting: Down Light and Strip Light
• Factory Automation Equipment
• Consumer Electronics
• Any application requiring an easy-to-use wire insertion/extraction method
The termination method of Molex’s Lite-Trap connector system is similar to Molex’s Wire Trap connectors, and also to certain competitive “Poke-In” style versions. A stripped wire is inserted into the connector and pushes open a gate-style terminal that “traps” the wire. To unmate, a button-style lever on the housing top is pushed down to allow the wire to be disengaged.
With a profile height of just 4.20mm, Molex’s Lite-Trap connectors offer the lowest profile available of similar wire-removable types. Other lower-profile versions are available in the market, but these are permanent one-time connection types that do not allow wire removal.
Molex’s wire-removable Lite-Trap connector offers lower wire insertion force than similar types. It also offers a user-friendly latch that is easy for operators to engage and disengage, even without the use of a tool. These features combine to offer easy field assembly and removal if needed for trained or untrained operators.
Other features of the Lite-Trap connector include a housing design that accepts more insulation-length range than competitive designs. This provides more stable wire seating for electrical contact assurance. The dual-contact wire-trap clamp design provides further mating assurance.
The datashet can be downloaded and further supplier information and services are available at the Arrow microsite
