Featured | Components | Electronics | Driver IC | Feb 26, 2018

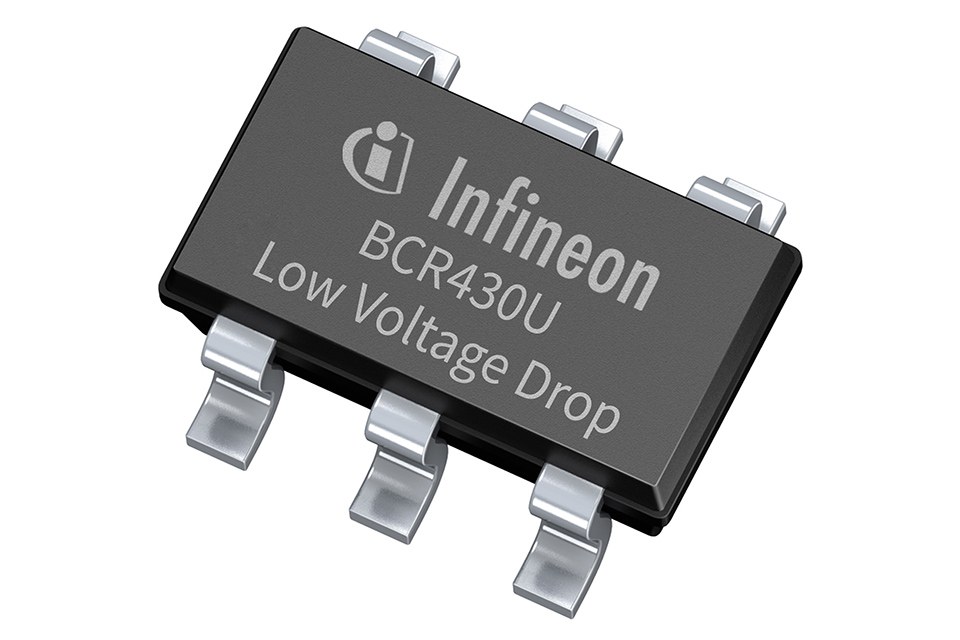

Infineon - BCR430U Linear Low Voltage Drop LED Driver IC

Infineon Technologies AG releases BCR430U, a constant current linear LED driver IC. The BCR430U provides industry-leading drop performance for regulating LED current in standalone operation. No external power transistor is needed. Typical applications for the BCR430U include LED strips, architectural LED lighting, LED displays as well as retail, appliance and emergency lighting.

The voltage drop at the integrated driver IC can go down to 135 mV at 50 mA. This improves overall efficiency and provides the voltage headroom required to compensate for LED forward voltage tolerances and variances in the supply voltage. Thus, more flexibility in the lighting design is possible. With the BRCU430U, additional LEDs can be added to lighting designs without changing the supply voltage.

The LED driver current ranges between 5 mA and 100 mA, and can be easily adjusted via high ohmic resistor on a dedicated pin. The supply voltage ranges between 6 V and 42 V. For safe and reliable operation and to extend the LED lifetime, a smart over-temperature controlling circuit reduces the LED current when the junction temperature is very high.

Availability:

The BCR430U is available now in a SOT-23-6 package. More information is available at www.infineon.com/bcr430u

About Infineon Technologies AG:

Infineon Technologies AG is a world leader in semiconductor solutions that make life easier, safer and greener. Microelectronics from Infineon is the key to a better future. In the 2015 fiscal year (ending September 30), the company reported sales of about €5.8 billion with some 35,400 employees worldwide. Infineon is listed on the Frankfurt Stock Exchange (ticker symbol: IFX) and in the USA on the over-the-counter market OTCQX International Premier (ticker symbol: IFNNY).
