45V, 2.3A LED Driver for Boost, Buck or Buck-Boost High Current LED Applications

Linear Technology announces the H-grade version of the LT3518. The LT3518 is a 45V, high-side current sense DC/DC converter designed to drive high current LEDs at constant current. Its 3V to 30V input voltage range with transient protection to 40V makes the LT3518 ideal for a wide variety of applications, including automotive, industrial and architectural lighting.

Summary of LT3518H Features:
• 150°C Maximum Junction Temperature
• 3,000:1 True Color PWMTM Dimming Ratio
• 2.3A, 45V Internal Switch
• 100mV High-Side Current Sense
• Open LED Protection
• Adjustable Frequency: 250kHz to 2.5MHz
• Wide Input Voltage Range:
o Operation from 3V to 30V
o Transient Protection to 40V
• Operates in Boost, Buck & Buck-Boost Mode
• Gate Driver for PMOS LED Disconnect
• Constant-Current & Constant-Voltage Regulation
• CTRL Pin Provides 10:1 Analog Dimming
• Low Shutdown Current: <1μA
• Tiny (4mm × 4mm) 16-Pin QFN Package

The H-grade version operates with a junction temperature up to 150°C, compared to the E- and I-grade versions’ 125°C maximum junction temperature. All electrical specifications are identical for the E, I and H. The H-grade parts are tested and guaranteed to the maximum junction temperature of 150°C. They are ideal for automotive and industrial applications, which are subjected to high ambient temperatures.

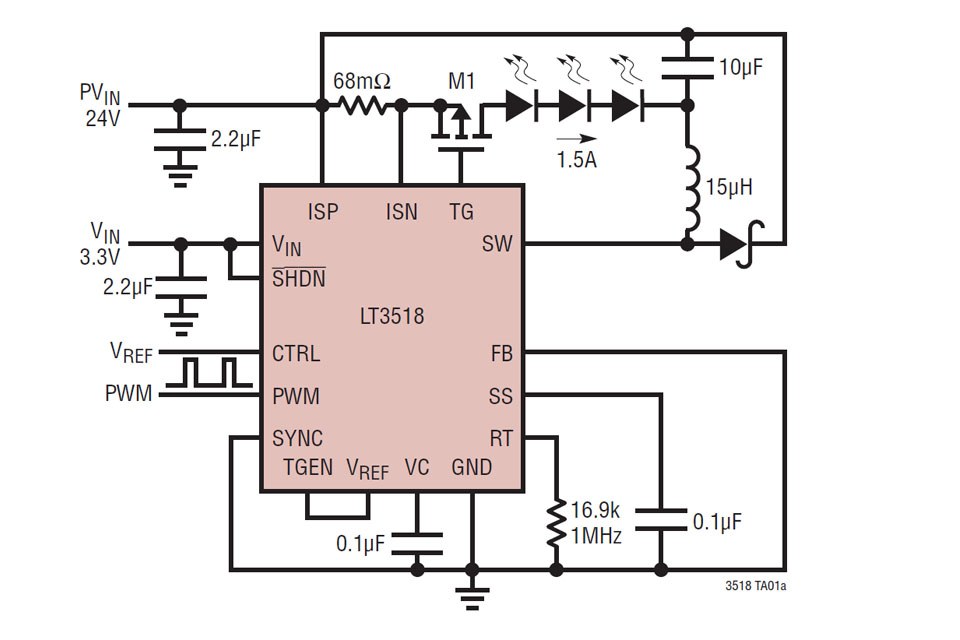

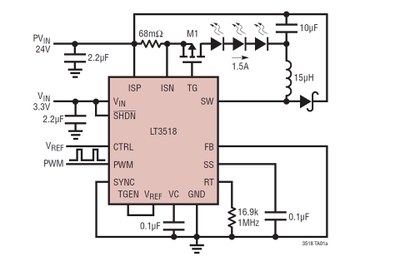

The LT3518 can drive up to eight 300mA white LEDs from a nominal 12V input, making it well suited for applications such as automotive display backlighting. The LT3518 senses output current at the high side of the LED, enabling buck, buck-boost or boost configurations. It can deliver efficiencies up to 90% in boost mode from a 4mm x 4mm QFN package. The LT3518 offers True Color PWM™ dimming, delivering constant LED color with dimming ranges of up to 3,000:1. For less demanding dimming requirements, the CNTRL pin can be used to offer 10:1 analog dimming. Its fixed frequency, current-mode architecture ensures stable operation over a wide range of supply and output voltages. A frequency adjust pin enables the user to program the frequency between 250kHz and 2.5MHz to optimize efficiency while minimizing external component size.

The LT3518HUF is available from stock in 16-pin QFN package, priced starting at $3.79 each in 1,000-piece quantities.
