Products, Materials & Tools | May 14, 2010

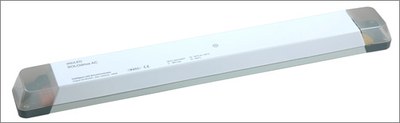

eldoLED Introduces SOLOdrive AC, a 100W Single-Channel Mains LED Driver/Controller for General Lighting

At Light + Building 2010, eldoLED introduced SOLOdrive AC, member of eldoLED’s family of AC mains integrated LED driver/controllers.

SOLOdrive is an AC mains integrated, constant current LED driver/controller, which is targeted at high-power, general white lighting applications.

SOLOdrive AC features a 20-bit resolution and offers both linear and gamma-corrected dimming curves.  SOLOdrive AC is ideally suited for both networked and standalone general white LED lighting applications.  It is DALI, 0-10V and switch-dim compatible. DALI is ideally suited for use in larger, flexible networked installations. In smaller (standalone) applications, you can use either 0-10V or switch-dim.

Features:
• DALI, 0-10V and switch-dim compatible
• Input voltage range: 100 - 277 VAC
• Power output: 100W
• LED output current setting: via LEDcode, in 50mA steps from 200mA up to 1050mA
• Linear and gamma-corrected dimming curve
• Excellent resolution: 20-bit

Advantages:
• Highly efficient (90%) over a wide power range
• Maximum (rated) power available over wide LED voltage and LED current range
• Combination of LED driver and power electronics simplifies setup and installation

For more information, please visit http://http//www.eldoled.com/solodriveAC

About eldoLED:
eldoLED develops, produces and markets high-performance Drive, Networking and Control solutions for general white lighting and full colour RGB-W/A LED lighting applications.  eldoLED proprietary digital technologies enable specific features such as small footprint, optimum power efficiency, configurability, high control resolution and robust thermal management.
The standard product portfolio includes LedSync/DMX/DALI/0-10V compatible LED driver/controllers,
and network and control accessories such as 0-10V/DALI/RF network bridges and DimWheel DMX dimmers. A dedicated team of engineers supports eldoLED’s customers by designing standard products, customized solutions and design-in developments:  your product, our drive.

Contact data:
For pricing information, please contact the eldoLED sales department at sales@eldoLED.com or +1 (408) 451 9333 (North America) or +31 40 2054050 (other countries).
For information regarding customized solutions, please contact the eldoLED OEM department at OEMdesk@eldoLED.com or +1 (408) 451 9333 (North America) or +31 40 2054050 (other countries).
