Fairchild 100V BoostPak Solution Provides Improved Reliability and Reduces System Costs in LED Applications

Fairchild Semiconductor, a leading global supplier of high performance power and mobile semiconductor solutions, optimizes the MOSFET and diode selection process by introducing a family of 100 V BoostPak devices that combines a MOSFET and diode in one package to replace discrete solutions currently used in LED TV / monitor backlight, LED lighting and DC-DC converter applications.

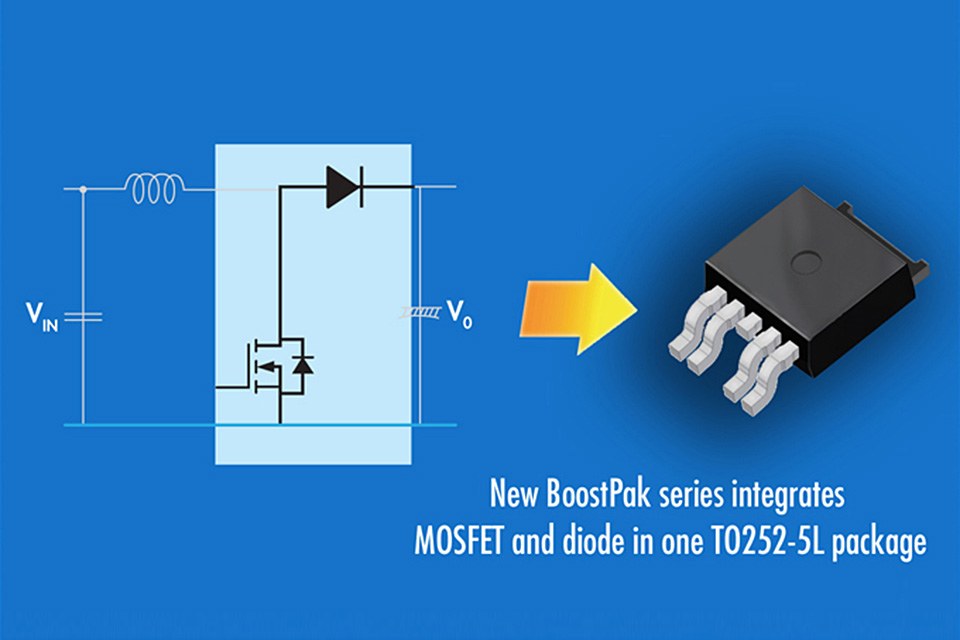

By integrating the MOSFET and diode into a single package, the FDD1600N10ALZD and FDD850N10LD devices save board space, simplify assembly, lower bill of material (BOM) costs and improve reliability of the application.

The devices feature an N-channel MOSFET produced using Fairchild’s PowerTrench® process that has been tailored to minimize the on-state resistance while maintaining superior switching performance. The NP diode is a hyperfast rectifier with low forward voltage drop and excellent switching performance. It has much lower leakage current than a Shottky diode, which improves system reliability in high temperature applications.

Features:
FDD1600N10ALZD:
•    RDS(ON) = 124 mΩ (Typ.)@ VGS = 10 V, ID = 3.4 A
•    RDS(ON) = 175 mΩ (Typ.)@ VGS = 5 V, ID = 2.1 A
•    Low Gate Charge = 2.78 nC (Typ.)
•    Low Crss = 2.04 pF (Typ.)
FDD850N10LD:
•    RDS(ON) = 61 mΩ (Typ.)@ VGS = 10 V, ID = 12 A
•    RDS(ON) = 64 mΩ (Typ.)@ VGS = 5.0 V, ID = 12 A
•    Low Gate Charge = 22.2 nC (Typ.)
•    Low Crss = 42 pF (Typ.)

Both:
•    Fast switching
•    100% avalanche tested
•    Improved dv/dt capability
•    RoHS compliant

Packaging and Pricing Information
Price:  in 1,000 quantity pieces
FDD1600N10ALZD:             US$0.49
FDD850N10LD:                    US$0.57

Availability: Samples available upon request
