Products, Materials + Tools | Aug 12, 2013

GlacialPower Announces Two New Drivers for 12-57V Indoor LED Lighting

GlacialPower, a division of the Taiwanese technology manufacturer, GlacialTech Inc., is pleased to announce two new GlacialPower LED drivers for constant voltage (CV) and constant current (CC) LED lights – GP-RS45P and GP-RS60P – available in several options ranging from 12V DC to 57V DC. The drivers are also available with a 3 in 1 dimming (1-10V/PWM/Resistor) function.

Features:
•    Class 2/II plastic driver housing design
•    Double insulated wiring
•    Universal AC input 90~305V AC
•    High power conversion efficiency: up to 89%
•    Constant current and constant voltage operation
•    Built-in active PFC (Power Factor Correction) function

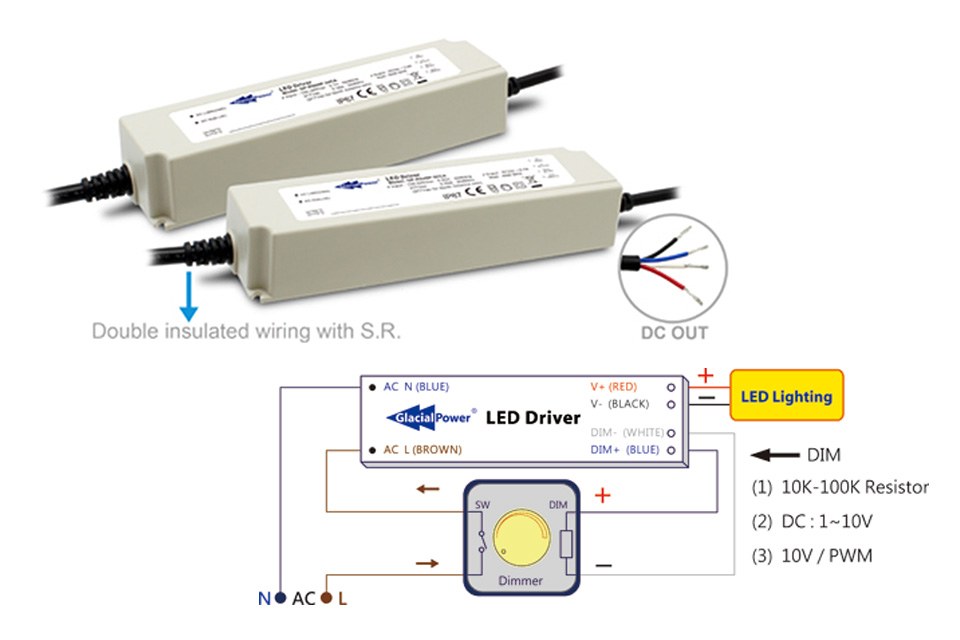

•    3 in 1 dimming function (optional)
•    Protection: OVP / SCP / OTP
•    IP67 approved
•    Limited power supply (LPS) power unit


Both of the drivers are ideal for any indoor LED lighting solutions, as the IP67 approved plastic housing protects the drivers from possible dust or water damage such as rusting. Further, the double insulated wiring design ensures that if the wire is externally pulled, the strain relief bushing to the circuit board will not be exposed, preventing possible electricity leakages.

The GP-RS45P and GP-RS60P LED drivers offer a range of different options for indoor LED lighting needs. The output voltage of the two LED lights range from 12V DC to 57V DC. The GP-RS45P LED drivers deliver up to 48W and the GP-RS60P LED drivers up to 60W of power to the LED. For LED driver producers — safety standard certification UL8750 Class 2/II has been applied for and currently under review, however these drivers specifications fully satisfy the criteria of UL1598 fixture safety standard. These specifications combined with cost-effective pricing and durable plastic housing makes these drivers excellent options for practically any constant voltage and constant current LED indoor lighting needs.

The drivers have a power conversion efficiency rate of up to 89%, which makes them highly energy efficient. Furthermore, true to the reputation of GlacialPower, the two new LED drivers are highly secure. In addition to the IP67 approved plastic housing the drivers have three different protections: Over Voltage Protection (OVP), Short-Circuit Protection (SCP) and Over-Temperature Protection (OTP).

GlacialPower's R&D team developed these LED drivers with the aim to eliminate the need for electronic transformers and to provide more energy-saving and environmentally-friendly LED products. GlacialPower's LED driver technology is expected to lead a new trend in innovation and become an essential feature for all LED lighting products. GlacialPower will introduce additions to its line of LED drivers with GP-RS25 and GP-RS35 during the fourth quarter of 2013.

About GlacialTech Inc:

GlacialTech Inc., is a diversified provider of cooling, power supply, and PC enclosure solutions for consumer and industrial applications. Thanks to its strong relationships with LED semiconductor manufacturers as well as thermal, SMPS and engineering leaders worldwide, GlacialTech leverages world-class engineering, efficient manufacturing and materials of the highest quality to create market-leading products. Under the GlacialPower brand, GlacialTech provides drivers, battery chargers and open frame power supplies as well as other customized solutions. Please visit the company homepage at www.GlacialPower.com.
