Products, Materials & Tools | Oct 14, 2016

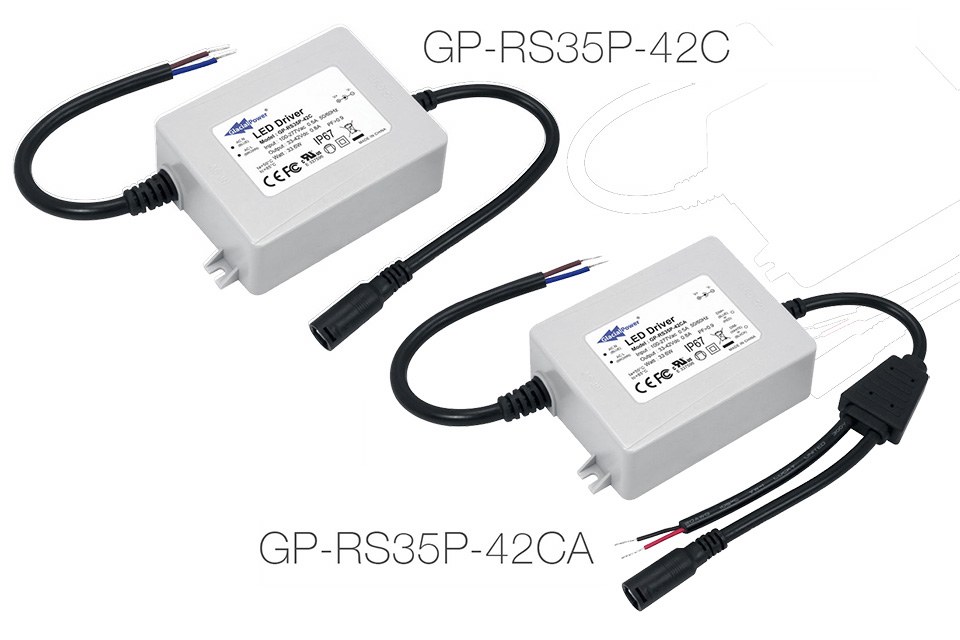

GlacialPower Introduces New 33.6 W LED Drivers

GlacialPower, a division of the LED technology manufacturer GlacialTech Inc, is today announcing the launch of a new pair of LED drivers, the GP-RS35P-42C and the GP-RS35P-42CA. Both drivers provide a rated power output of up to 33.6W for LED lights from 33V to 42V DC, and they are particularly suitable for interior lighting applications.

•    Universal AC input from 90 to 305 VAC
•    Constant Current and Constant Voltage modes
•    Built-in Active PFC Function
•    Protections: OVP, SCP, OTP
•    3 in 1 dimming function (DC 0-10 V, PWM, and Resistor)
•    IP67 rated for environmental protection
•    Compliant with ErP EU 1194/2012, Stage 2 directives for energy related products
•    No Load consumption is less than 1 W
•    Set up time is less than 0.5 sec at 230 VAC
•    Protected by a fully isolated plastic case
•    DC Jack connector easy for installation and maintenance

These new drivers’ DC output to the LEDs is supplied via a DC jack connector, which allows for quick and easy installation and maintenance of the driver and its associated LED units. In addition to these features, the GP-RS35P-42CA also supports a wide range of dimming functions, while the GP-RS35P-42C is perfect for applications in which dimming is not required. A wide nominal input voltage range of 100 to 277 VAC provides easy electrical compatibility in almost any environment across the world. Both constant current mode and constant voltage modes are supported.

Both drivers are highly energy efficient and compliant with relevant EU requirements. A typical use case for these drivers would be power-saving interior LED downlighting for residential or commercial scenarios with a low installation and maintenance budget, and the drivers’ versatility ensures many other potential applications exist.

Multiple LED dimming control options:

In order to supporting a wide variety of lighting scenarios and LED modules, the GP-RS35P-42CA version of this product provides analog DC voltage dimming controlled by an external voltage from 0 to 10 V DC, and also offers PWM dimming from 500 Hz to 3 KHz, as well as resistance dimming mode controlled by a resistance from 0 to 100 KΩ.

Full range of LED lighting safety and device protection features:

The GP-RS35P-42C and GP-RS35P-42CA both offer fully isolated plastic cases, which provide IP67 rated protection against dust and moisture. Over-voltage protection (OVP), over-temperature protection (OTP) and short circuit protection (SCP) are all built in to the driver. To ensure lighting quality and prolong LED lifetime, these new drivers offer a clean, low distortion DC output with full system energy cost reductions and maximum ripple and noise of 250 mV.

Efficient, power saving LED drivers:

At full load these new drivers provide an excellent power factor of greater than 0.98 at 120 VAC, more than 0.95 at 240 VAC, and more than 0.9 at 277 VAC. In line with the latest international standards, this power factor provides electrical efficiency that is not only better than competing LED drivers, but is also a huge improvement compared to lighting technologies of the past, making these drivers ideal for legacy lighting system upgrade and replacement.

EU standards and other safety and energy efficiency directives are closely followed, thanks to GlacialPower's years of design and manufacturing experience in this field. Both drivers offer full compliancy with the important European directive on energy-related products, (ErP) EU 1194/2012, Stage 2.

For greater power efficiency, the drivers’ maximum no load power consumption always remains under 1 W at 230 VAC. As well as being efficient, the power output is smooth and clean, to protect LEDs and avoid maintenance issues. Leakage current is less than 0.25 mA at 230 VAC. For responsive performance, both drivers provide a start up time of less than 0.5 seconds at full load.

Find out even more about the GP-RS35P-42C and GP-RS35P-42CA at GlacialPower's website:

About GlacialPower:

GlacialPower, the power division of GlacialTech, manufactures Switch Mode Power Supply (SMPS) solutions for LED lighting applications. GlacialPower provides LED Drivers and power supplies with a wide wattage range for a variety of applications. GlacialPower power supplies use attractive and contemporary design to deliver quality products that possess innovative features and ease of usability for customers. For details, please visit at
