Components | Electronics | Driver Modules | Outdoor Applications | Oct 18, 2019

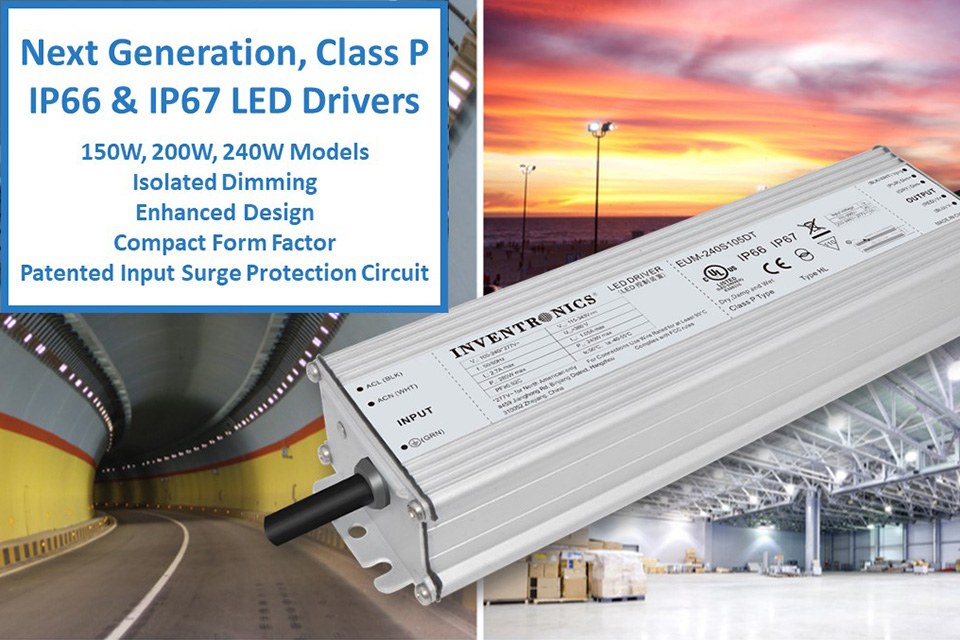

Inventronics Introduces Next Generation Platform, IP66/IP67 LED Driver Family with UL Class P

Inventronics has introduced an entirely new family of programmable, IP66/IP67 LED drivers designed with a next generation platform. They provide OEMs even more design flexibility with UL Class P, a more compact housing and industry-leading surge protection.

The EUM-DT family is designed with the latest, next generation platform equipped with an enhanced transformer design, optimized components that provide lower costs without sacrificing quality or performance and a new design methodology to support a warranty Tc of 80ºC. They are highly reliable, and their robust protection allows for longer lifetimes up to 106,000 hours.

Each series provides a multi-layer of protection which includes over-voltage, over-temperature, and short-circuit protection. Utilizing a new proprietary circuit, the drivers are still able to maintain an industry-leading surge protection of 6kV (differential mode) and 10k V (common mode) while passing typical hi-pot testing for luminaires without any secondary operation. The rugged, extruded-metal housing, which utilizes a proprietary encapsulation process, is IP66 and IP67 rated and specially designed to operate in demanding applications such as high bay, high mast and roadway lighting.

The EUM-DT family also allows for extreme design flexibility. They are UL Class P Listed providing the freedom of substitution without new testing and bring your products to market faster. Their programmable interface and constant-power operation allow for in-house customization which achieves optimal results and various current configurations without the need of powering on the driver. They offer 3 constant-power, programmable series delivering 150 W up to 240 W at output currents from 700mA to 6700mA with more power levels releasing later this year. Their ultra-compact design is smaller than previous generation Inventronics drivers, allowing them to fit inside a multitude of luminaires.

The EUM-DT family supplies improved safety with a wide range of isolated dimming options to remain compliant with all standards including the new UL May 2020 requirements. These dimming controls include isolated 1-5 V, 1-10 V, PWM and multiple timers.

Production quantities of the EUM-150SxxxDT, EUM-200SxxxDT and EUM-240SxxxDT are available now.

For a full datasheet please check the Inventronics website www.inventronics-co.com. To receive a quote please visit www.inventronics-co.com/sales/ or contact the company at sales@inventronics-co.com

About Inventronics:

Headquartered in Hangzhou, China, Inventronics is a world class enterprise specializing in the design, manufacture, marketing and sales of reliable & innovative LED driver products, and a leading supplier of LED drivers to the global market. Learn more at Inventronics-co.com
