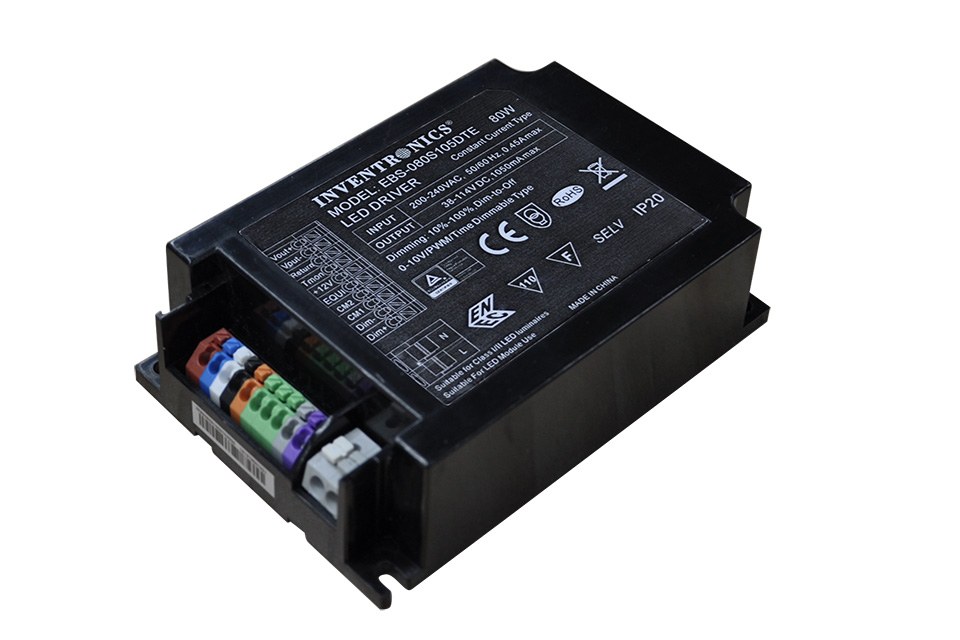

Inventronics Releases a Compact Family of Full-Featured Programmable IP20 LED Drivers

Inventronics has announced the release of the EBS Series of 40 W, 80 W and 160 W full-featured, constant-current programmable IP20 LED drivers that are designed to be extremely cost effective. They operate from 176-305 Vac input and the plastic housing is IP20 rated which allows for even more cost reductions when you need a full-featured LED driver but not the costs associated with an IP67 rating. The Zhaga compatible square design makes it the perfect choice for the more compact and slimmer European street luminaires where the standard driver form may be too large to accommodate.

The EBS Series utilizes convenient push terminals instead of cabling that provides flexibility and easier installation while reducing production and installation costs. The EBS Series is suitable for use in outdoor luminaries of Protection Class I and II, built-in use for outdoor applications and they can also be upgraded to become an ‘independent’ LED driver so you can mount them outside a luminaire enclosure for IP20 applications.

Each EBS Series offers 2 constant-power, programmable models delivering up to 40 W, 80 W and 160 W at output currents from 450 mA to 1050 mA.  Each highly efficient model provides a 12 V / 200 mA auxiliary output and dim-to-off with low standby power consumption for even great energy savings. The EBS-xxxSxxxDTE models can be programmed for 0-10 V, PWM or time dimming with 3 timer modes.

The rugged thermal design of these drivers enable them to run cooler, significantly improving reliability and extending product life. The lifetime of these drivers is calculated to be at least 100,000 hours when operating at 80% load.  These drivers also feature all-around protection which includes: over-voltage, over-temperature for both driver and external LED array, and short-circuit protection as well as thermal sensing and protection for the LED module.

You can increase your ease of installation and reduce production times even further by pairing the EBS Series with the Inventronics PRG-MUL2 programming tool. This combination furnishes fast, off-line mass programming capabilities that allows auto programming at the push of a button through user friendly PC based software.

This new family is approved to ENEC, TUV, CE, CB, and Double Insulation standards. Production quantities of EBS Series are available now. For a full datasheet please check the Inventronics website (www.Inventronics-co.com) or contact the company at sales@inventronics-co.com

About Inventronics:

Headquartered in Hangzhou, China, Inventronics is a world class enterprise specializing in the design, manufacture, marketing and sales of reliable & innovative LED driver products, now a leading supplier of LED drivers to the global market.  Learn more at www.Inventronics-co.com
