Products, Materials + Tools | Sep 09, 2016

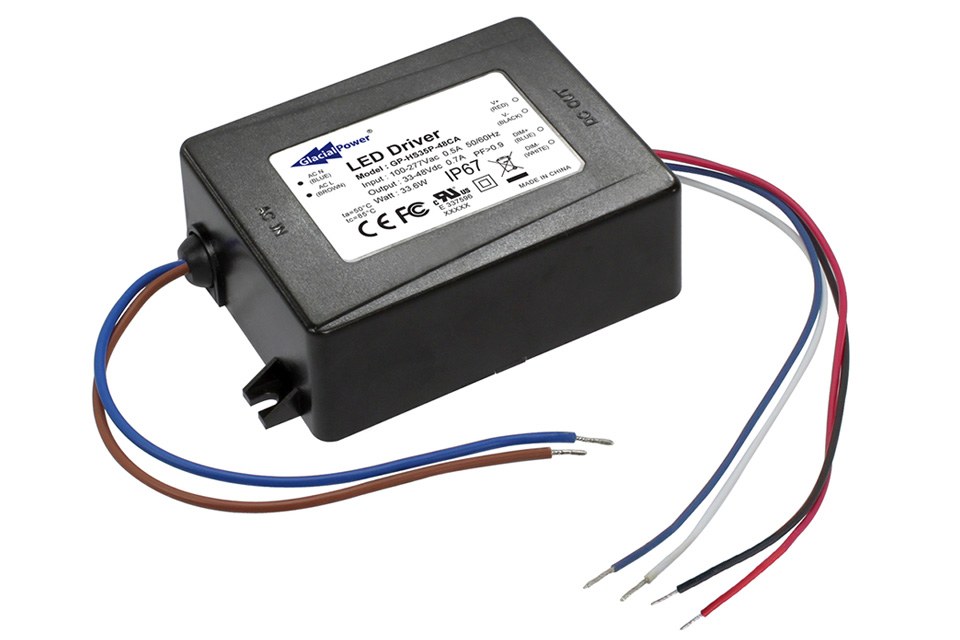

New Dimmable, Energy Efficient 33.6 W LED Driver From GlacialPower

GlacialPower, a division of LED technology manufacturer GlacialTech Inc, is pleased to announce a new LED Driver, the GP-HS35P-48CA, with a rated power output of up to 33.6 W for LED lights from 33 to 48 V. This new driver offers energy saving features and a smooth output waveform with low distortion, and it closely follows EU and other directives for safety and energy efficiency. With its compact, durable design that avoids the common maintenance issues that affect competing products, GlacialPower's newest IP67 rated LED driver is ideal for interior and exterior applications. Nominal input voltage range is 100 to 277 VAC, with a maximum input range of 90 to 305 VAC.
New Dimmable, Energy Efficient 33.6 W LED Driver From GlacialPower

GlacialPower's GP-HS35P-48CA produces clean 33 to 48 V voltage, compliant with latest EU directives for safety and power saving

Features:
•    Universal AC input 90-305 VAC
•    Constant current mode
•    Built-in Active PFC function
•    Protections: OVP, SCP, OTP
•    3 in 1 dimming function (DC 0-10 V, PWM, and Resistor)
•    IP67 rated
•    Compliant with ErP EU 1194/2012, Stage 3 directives for energy related products
•    No Load consumption is less than 0.5 W
•    Set up time is less than 0.5 sec at 230 VAC
•    THD less than 20% at 277 VAC
•    The latest EU certification EN61347-1:2015, EN61347-2-13:2014 are already applied for

The LED driver that's ready for EU energy standards

The GP-HS35P-48CA is fully compliant with the critical European directive on energy-related products (ErP) EU 1194/2012, including the most recent Stage 3 level. These European directives aim to significantly enhance the efficiency of energy-related products, particularly with regard to issues such as power factor. In keeping with these requirements, the new GP-HS35P-48CA provides a power factor of greater than 0.98 at 120VAC, more than 0.95 at 240 VAC, and better than 0.9 at 277 VAC at full load.

Meanwhile, under no load conditions, this driver is able to keep its power consumption below 0.5 W at 230 VAC. As well as being efficient, the power output is smooth and clean, to protect LEDs and avoid other issues, with a total harmonic distortion (THD) of less than 20 percent at 277 VAC.

An LED driver designed with the latest safety certification in mind

With GlacialPower's emphasis on product safety and long operating life, the company has already applied for the latest EU certifications EN61347-1:2015 and EN61347-2-13:2014 for the GP-HS35P-48CA. EU certification demonstrates compliance with European standards related mainly to safety.

Fast set up and versatile LED dimming capabilities

The GP-HS35P-48CA LED driver boasts a speedy set up time of less than half a second at 230 VAC. To suit a wide range of lighting applications and LED types, multiple dimming control modes are available, including PWM Dimming, analog dimming controlled by an external voltage from 0 to 10 V DC, and resistance dimming ranging from 0 to 100 KΩ.

Read more about GP-HS35P-48CA in GlacialPower's website: www.glacialpower.com/products/led-driver-DCdimming.htm

About GlacialPower:

GlacialPower, the power division of GlacialTech, manufactures Switch Mode Power Supply (SMPS) solutions for LED lighting applications. GlacialPower provides LED Drivers and power supplies with a wide wattage range for a variety of applications. GlacialPower power supplies use attractive and contemporary design to deliver quality products that possess innovative features and ease of usability for customers. For details, please visit at www.GlacialPower.com
