New Mains-Dimmable LED Lamp Driver from Diodes

Diodes Incorporated (Nasdaq: DIOD), a leading global manufacturer and supplier of high-quality application specific standard products within the broad discrete, logic and analog semiconductor markets, today introduced the AP1694, an AC-DC controller providing a universal high-performance driver solution for a variety of mains-dimmable LED lamp designs. Suitable for both 120V and 230V AC inputs, while supporting non-isolated buck, buck-boost and isolated flyback topologies, this part enables between 10% and 50% reductions in total BOM costs.

Features:
•   Primary Side Control for Output Current Regulation without Opto-coupler
•   Boundary Conduction Mode (BCM) Operation to Achieve High efficiency
•   High PF and Low THD
•   High Efficiency without Dimmer
•   Wide Range of Dimmer Compatibility
•   Dimming Curve Compliant with NEMA SSL6
•   Low Start-up Current
•   Tight LED Current
•   Tight LED Open Voltage
•   BJT Transistor Driver
•   Dynamic Base Driver Control
•   Valley-mode Switching to Minimize the Transition Loss
•   Easy EMI

Internal Protections:
•   Under Voltage Lock Out (UVLO)
•   Leading-edge Blanking (LEB)
•   Output Short Protection
•   Output Open Protection
•   Over Temperature Protection

The controller uses Diodes' patented PFM technology to tightly regulate LED current and achieve a high power factor and low total harmonic distortion. By operating in boundary-conduction mode, the AP1684 also assures high efficiency and low EMI driver characteristics. As a primary side controller, this part removes the need for opto-coupler and secondary-side control circuitry, and being inherently stable, eliminates the need for loop compensation.

The AP1694 delivers a 5% initial LED current accuracy, meeting the requirements of most mains-dimmable LED lighting applications and is compatible with a wide range of different dimmers, including both leading edge and trailing edge types. It achieves deep dimming down to 1%, complies with the NEMA SSL6 standard for dimming curves and meets the requirements of the IEC6100-3-2 harmonic standard.

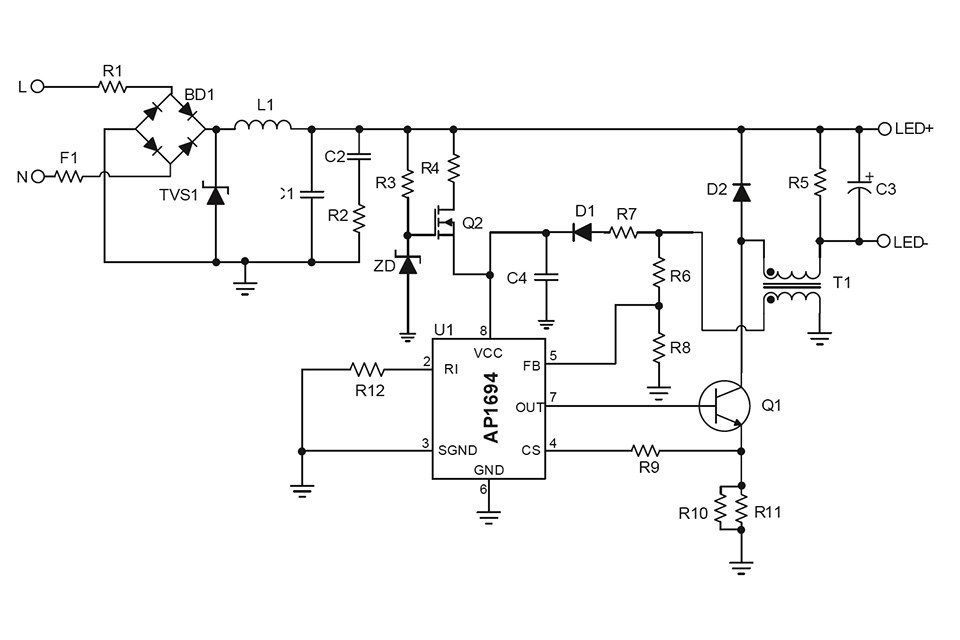

Provided in the small form factor SO-8 package and requiring only 26 external components in buck topology, the AP1694 driver controller offers designers of mains-dimmable LED lamps a higher power density with a simpler and smaller total circuit footprint. The device also integrates comprehensive protection features, including open-load detection, over-voltage, short-circuit and overtemperature protection. For further information, visit the Company's website at www.diodes.com.
