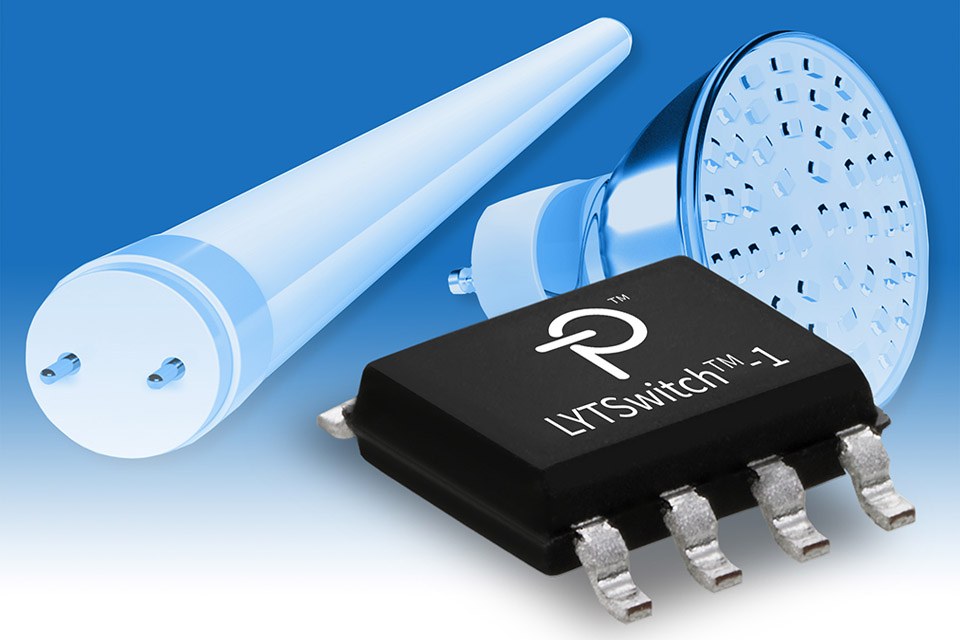

Power Integrations' LYTSwitch-1 Reduces Complexity in Bulbs, Tubes and Ballasts

Power Integrations (Nasdaq: POWI), the leader in high-efficiency, high-reliability LED driver ICs, today announced its LYTSwitch™-1 single-stage, non-isolated, buck topology LED driver IC family. Featuring a very compact footprint, the IC enables the design of LED bulbs and tubes with high constant-current accuracy while using a minimum number of components. A novel driver algorithm ensures high power factor (PF) and low total harmonic distortion (THD) while maintaining very high efficiency.

Housed in a compact SO-8 package, LYTSwitch-1 ICs are greater than 93% efficient with a PF of over 0.9 and THD as low as 15%. Devices can be used in a low-side buck topology for reduced EMI or in a high-side buck topology which simplifies design. Delivering up to 22 W without a heatsink, the universal input (100 - 308 VAC) ICs incorporate a 725 V MOSFET for high reliability. Designers can make use of small, off-the-shelf inductors due to a unique peak current control algorithm. The new devices meet all applicable international standards including: DOE 6 (external power supply), CEC Title 20 and 24, ENERGY STAR® SSL, EN61000-3-2 (C) plus China and India standards.

Comments Hubie Notohamiprodjo, director of product marketing at Power Integrations: “Low system complexity and high performance make LYTSwitch-1 ICs ideal for both commercial and residential lighting applications. The low component count and compact size make these LED driver ICs easy to fit into space-challenged applications such as tube end caps, small form factor candles and GU10 bulbs, as well as low cost A19 and decorative-filament lamps.”

In common with all Power Integrations products, LYTSwitch-1 LED driver ICs have a host of protection features including thermal foldback with end-stop shutdown, short circuit protection, input and output OVP, overcurrent and SOA protection.

LYTSwitch-1 IC samples are available now. Devices are priced at $0.26 in 10,000-piece quantities. Reference design DER-548 is available for download now from the Power Integrations website at https://www.power.com/lytswitch-1

For additional information, please contact Power Integrations or their local representatives, visit the PI website or download the LYTSwitch-1 Datasheet and Reference designs DER-541 - 16.75 W Non-Dimmable, Non-Isolated Buck LED Driver and DER-548 - 20.4 W Non-Dimmable, Non-Isolated Buck LED Driver

About Power Integrations:

Power Integrations, Inc. is a leading innovator in semiconductor technologies for high-voltage power conversion. The company’s products are key building blocks in the clean-power ecosystem, enabling the generation of renewable energy as well as the efficient transmission and consumption of power in applications ranging from milliwatts to megawatts. For more information please visit www.power.com
