Supertex's Enhanced HV9910C Offers Simple, Cost-Effective Design Solution

Supertex, Inc. introduced HV9910C, an open loop, current mode, universal high brightness LED driver IC. It is ideal for general and decorative LED lighting, flat panel display backlighting, and other DC/DC or AC/DC input basedapplications.

Features:
•    Switch mode controller for single switch LED drivers
•    Enhanced drop-in replacement to the HV9910B
•    Open loop peak current controller
•    Internal 15 to 450V linear regulator
•    Constant frequency or constant off-time operation
•    Linear and PWM dimming capability
•    Requires few external components for operation
•    Over-temperature protection

Applications:
•    DC/DC or AC/DC LED driver applications
•    RGB backlighting LED driver
•    Back lighting of flat panel displays
•    General purpose constant current source
•    Signage and decorative LED lighting
•    Chargers

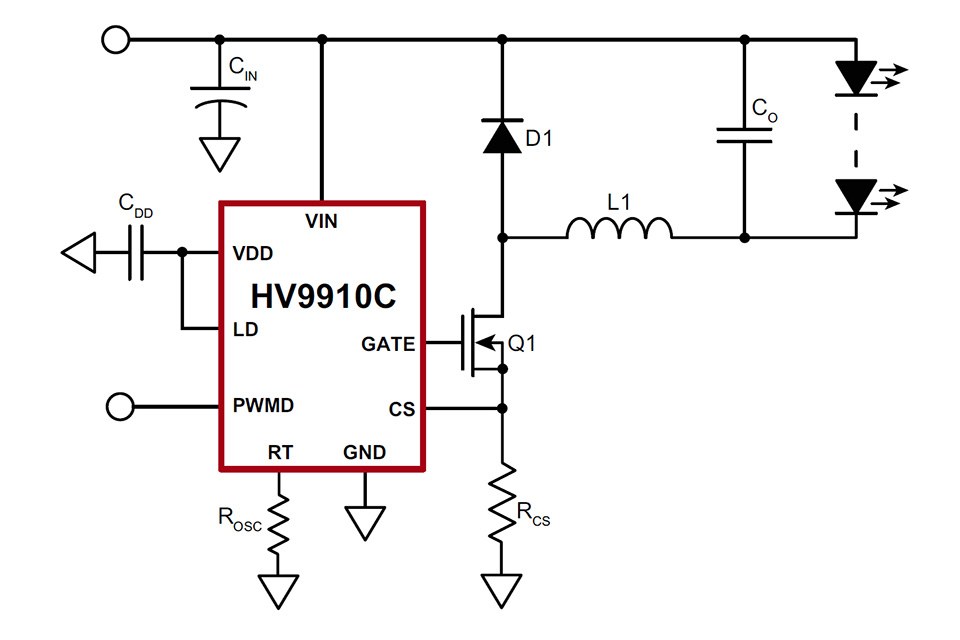

HV9910C is an enhanced drop-in replacement to the HV9910B, designed to convert high voltage supplies (85V – 265VAC rectified) or (15V – 450VDC) to a constant current source for powering a string or a combination of strings of high brightness LEDs. It can be programmed to operate in either a constant frequency or constant off-time mode and includes a 15 – 450V linear regulator which allows it to work from a wide range of input voltages without the need for an external low voltage supply.

“HV9910C requires only three external components (apart from the power stage) to produce a controlled LED current making it an ideal solution for low system cost”, states Alex Mednik, Application Engineering Director at Supertex. “Furthermore, the low component count allows for higher reliability and minimum board space.”

HV9910C is available in a lead(Pb)-free/RoHS compliant 8L SOICN and 16L SOICN package (HV9910CLG-G and HV9910CNG-G, respectively). Samples are available from stock. Lead-time for production quantities is 4-6 weeks, ARO. Pricing is USD$0.36 each for the HV9910CLG-G and USD$0.46 each for the HV9910CNG-G in 1K quantities.

For additional information, please visit www.supertex.com or download the HV99C datasheet

About Supertex:

Supertex, Inc. is a publicly held mixed signal semiconductor manufacturer, focused in high voltage analog and mixed signal products for use in the medical, LED lighting, printer and display, industrial and telecommunication industries. Supertex product, corporate and financial information is readily available at www.supertex.com.
