Products, Materials + Tools | Mar 21, 2013

Permlight Releases a New Garage Canopy and Low Bay Light Engine

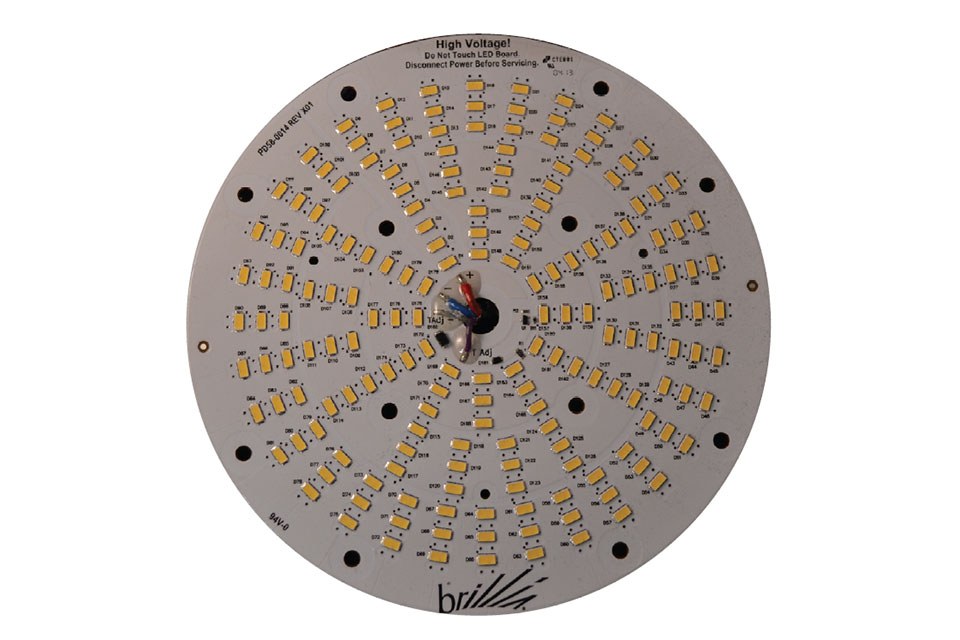

Permlight introduced the GC light engine which is a scalable platform designed as an economical LED engine for garage canopies up to 7700 lumens at over 100 LPW engine efficacies. This will easily outperform up to 175W metal halide or 3 x 42W CFL lamps with energy savings and extended lifetimes.

Features & Benefits:
•    High Brightness replaces up to 150W metal halide or 3x 42W CFL
•    8” diameter module is ideal size for traditional HID luminaries
•    Constant current design produces 107 LPW system efficacy, 122 LPW Module
•    Dimmable with 0-10 VDC
•    Integral Thermadjust® technology for extreme environments
•    Patented intelligent thermal design uses copper clad board
•    Easily configured into existing and new luminaires
•    Available in a variety of color temperatures

Part Number

CCT
[K]

Light
Output
[lm]

AC Power
[W]

System
Efficacy [lm/W]

CRI

Beam
Angle
[deg]

O-10
VDC
Dimmable

BEP 180 GC - 50 - 01

5000

7,700

72

107

85

120

Yes

BEP 150 GC - 50 - 01

5000

6,410

60

107

85

120

Yes

BEP 120 GC - 50 - 01

5000

5,130

49

105

85

120

Yes

BEP 099 GC - 50 - 01

5000

4,235

41

103

85

120

Yes

Standard versions are available with a CCT of 5000 K and a  CRI of 85. Other color temperatures are also available on request, e.g. 4000 K and 3000 K. Lumen output for the 4000 K version is reduced by 6%, and for 3000 K version by 12%, compared to the 5000 K products.
