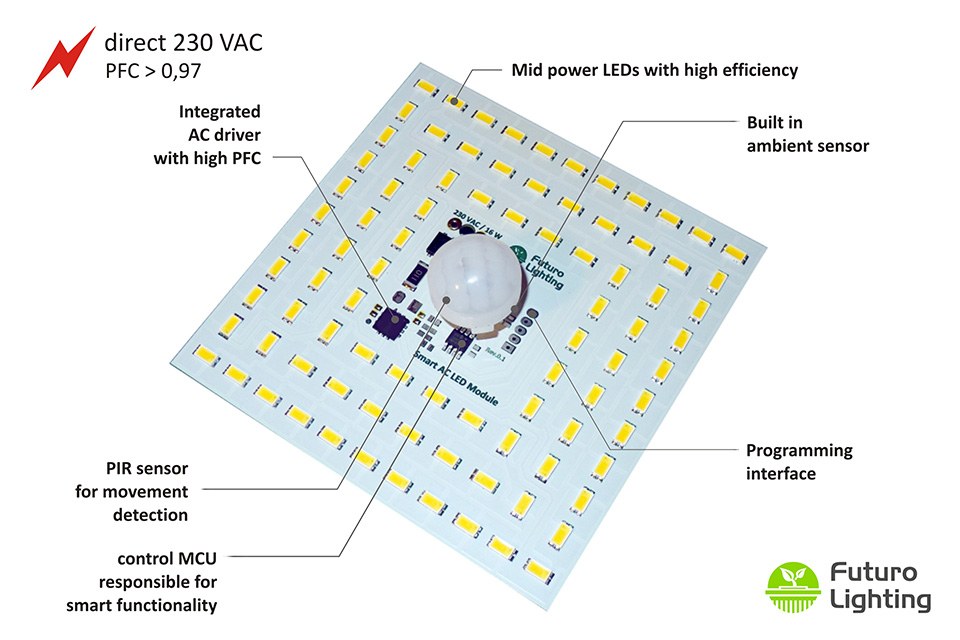

Smart AC LED module 12W - A Compact LED Solution, Operating Directly from 230 VAC

FuturoLighting, A company focused on LED lighting solutions, introduces a smart AC LED module operating directly from 230 VAC network. Module integrates AC driver with high PFC above 0,97 offering ON/OFF and dimming functionality with stand-by consumption below 0,5 W. The module was designed in several versions covering basic, triac dimmable, analogue dimmable and smart functionality.

Dimensions of the module are 100 x 100 mm with height of 5 mm for basic and 25 mm for smart version. It is first integrated approach of an AC driver together with movement sensor and smart behavior. Practically these modules are electrically behaving as real incandescent bulb (resistive load). Smart version offers corridor functionality with adjustable delay time, where stand-by level can be adjusted from 0 to 80% through programming interface directly on the module. Specialty of this solution is integrated dimming behavior that makes light change during switching ON and OFF of the module visual smooth. Smart module has implemented ambient sensor for recognition of day/night and its threshold level can be easily adjusted through programming interface as well.

Smart AC LED module can be populated from various LED brands. Current design accepts Osram Duris E5, Samsung LM561, LiteON 5630, LG and other similar foot print mid power LEDs. It must be noticed that used AC conversion principle is not flicker free and is mostly suitable for cost sensitive applications where Class I is acceptable. This module can be customized according to customer requirements. Design files of the AC LED module as well as measurement reports are available for sale in design package. In case of interest, feel free to contact us.

More information including few application examples can be found oon the FuturoLighting Website or in product leaflet http://www.fulit.eu/docs/smartac12_lft.pdf

About FuturoLighting:
FuturoLighting is a LED lighting focused company based in Slovakia, located in the small town of Piestany, known worldwide for its health spa, natural healing sources – thermal mineral water and unique sulphuric mud. FuturoLighting develops and produces customized LED light fittings for demanding environments. The company concentrates on lighting solutions which require high energy efficiency, long lifetime and easy maintenance. FuturoLighting's competency is based on a long experience of working in the electronics industry.
