From Khatod Think-Tank to a Tank in Lighting - For Your Extreme Applications in LED Lighting

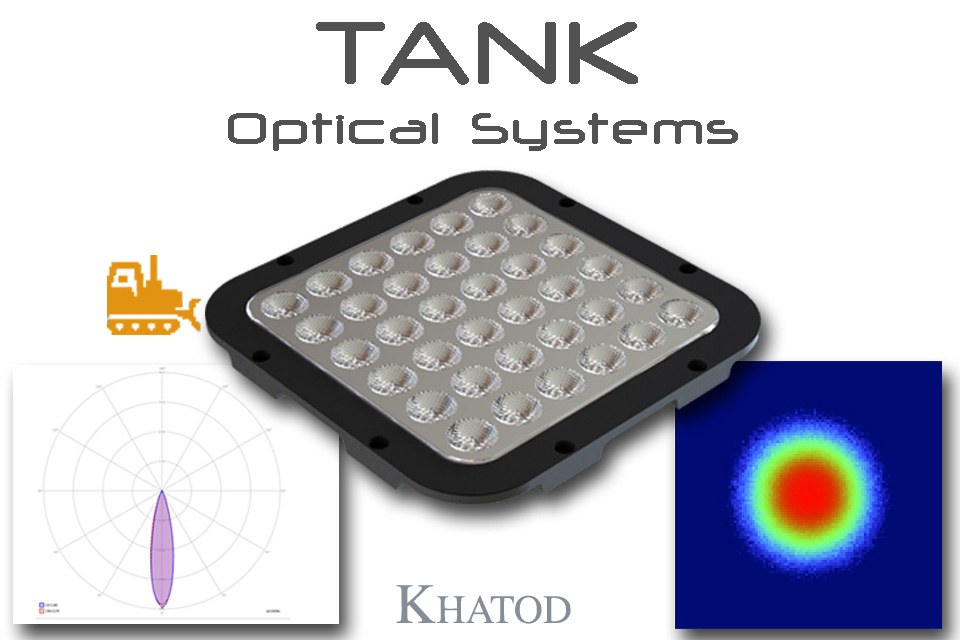

Tank Optical System is a square array made up of 36 lenses, for most popular LEDs. Engineered for use in hard jobsite conditions of construction industry and manufactured to the highest of standards, Tank meets a great variety of LED Lighting applications, from light towers to portable lighting. Its robust structure withstands hard handling, while maximizing the scene lighting in large yards as well as in confined spaces. On request, available IP protected with integrated silicone gasket.

Features:
•    High Precision Injection Molded Optical Modules
•    Designed for most popular LEDs
•    Optic Type: square 36-lens array
•    Material: Optical Grade PMMA
•    Dimensions: 171.98 mm side
•    Lens pitch: 22.00 mm
•    Beam angles: Medium, Nema 3
•    Lighting efficiency: over 85%
•    Two holes on each side allow the insertion of screws to fasten the module to the LED panel
•    Equipped with a holder in black PC, ensures robust and firm housing in the final application
•    Allows the LED panel to be fully embedded into the back of the module
•    On request, IP protected, rating IP65. The silicone gasket is placed into the perimeter edge groove.

Typical Applications are any application in LED Lighting, Indoor & Outdoor, requiring robust, long life, safe and reliable service:

•    Construction, Manufacturing, Industrial, Event Areas.
•    Emergency Operations Areas:  light towers as well as in portable lighting, mounted on a tripod, portable pedestals, etc. for use in accident scenes, hard-to-reach areas, road and urban works.
•    Large yards, Workplaces, Wide Public Places.
•    Special Applications in Confined Spaces: tanks, silos, storage bins, hoppers, vaults, excavations, pits, in construction areas.
•    General Lighting in Wide Areas: Garden Light, Residential, Commercial, Retail, Shop, Architectural, Hospital & Hospitality Light, Canopy, Petrol Gas Station, Parking Light, Industrial Light, Professional Light


Khatod Tank fits any application in LED Lighting, Indoor & Outdoor, requiring robust, long life, safe and reliable service. Illuminating large yards, workplaces and wide public places, or lighting up confined spaces such as tanks or pits in construction areas, whatever the job, Khatod Tank performs lighting features not found in most conventional lighting.

Mounted on a tripod, portable pedestals, or portable lights, provides a powerful and rugged lighting in hard-to-reach areas such as in accident scenes, road and urban works.

Khatod Tank is available IP protected, rated IP65, on request. The silicone gasket, placed into the perimeter groove, ensures protection against powder and water ingress making Khatod Tank excellent for outdoor applications or indoor applications in damp and wet environments.

Khatod Tank is equipped with a holder in black PC which ensures robust and firm housing in the final application and allows the LED panel to be fully embedded into the back of the module.

For additional information, please visit  www.khatod.com/Khatod/Page.aspx?tank_optical_systems or contact Khatod at khatod@khatod.com

About Khatod:
Khatod products leverage three decades of hands-on experience with the toughest challenges in making lenses in a wide range of applications and environments. Our ability in designing and manufacturing customized optics for LED Lighting is already history. Khatod is able to meet the expectations of the most demanding individuals looking for the latest in LED Technology: exclusive products, cutting-edge engineering, research and experimentation. The result is the highest in technology, the easiest in usability, the most cost-effective in business.
