Home > Components & Tools > Optics > LEDiL Introduces the Veronica Family to Protect LEDs from Harsh Environments
Products, Materials + Tools | Aug 12, 2013

LEDiL Introduces the Veronica Family to Protect LEDs from Harsh Environments

LEDiL’s new Veronica family represents an innovative way of designing TIR optics. A single molded piece that triples as an optical element, structural holder and a sealing surface.

Applications:
•    Outdoor architectural lighting
•    Facade lighting
•    Display and billboard lighting

Key Features:
•    IPX8 suited
•    Tape protects the LED from potting agent during the installation
•    The round, slightly larger version has optimal optical performance but needs to be potted using potting resins with higher viscosity
•    The square version has the same footprint as the STRADA-SQ lenses, making it more versatile to use

Veronica Family Members:
C13528_Veronica-RS:
•    Typical1 FWHM ~10°
•    Diameter 26 mm
•    Height 12.2 mm
•    Mounting with glue and potting resin
•    Precision-molded from high grade optical PMMA
•    UL94 HB rated material with a wide operating temperature range
•    ROHS and REACH compliant

C13529_Veronica-O:
•    Typical1 FWHM ~55+14°
•    Diameter 26 mm
•    Height 12.2 mm
•    Mounting with glue and potting resin
•    Precision-molded from high grade optical PMMA
•    UL94 HB rated material with a wide operating temperature range
•    ROHS and REACH compliant

CA13724 Veronica-SQ-RS / C13727 Veronica-SQ-RS:
•    Typical1 FWHM ~11°
•    Diameter 22.5 x 22.5 mm
•    Height 12.2 mm
•    Mounting with adhesive tape or glue
•    Very low-viscosity potting resins can be used
•    Precision-molded from high grade optical PMMA
•    UL94 HB rated material with a wide operating temperature range
•    ROHS and REACH compliant

CA13726 Veronica-SQ-O / C13728 Veronica-SQ-O:
•    Typical1 FWHM ~56+12°
•    Diameter 22.5 x 22.5 mm
•    Height 12.2 mm
•    Mounting with adhesive tape or glue
•    Very low-viscosity potting resins can be used
•    Precision-molded from high grade optical PMMA
•    UL94 HB rated material with a wide operating temperature range
•    ROHS and REACH compliant

Make Veronica your weapon of choice for challenging environments and outdoor applications. Special attention paid to ensure easy ingress protection – making Veronica suitable for applications requiring IP ratings up to IPX8. Two lens types with real spot and oval beam patterns already exist, and more are on the way.

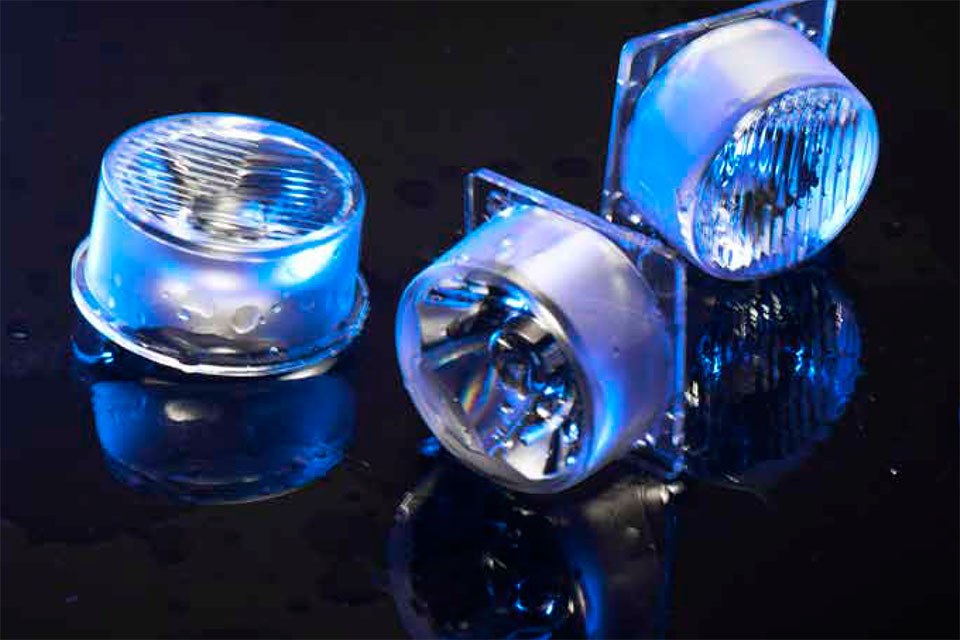

Veronica is available in two form factors: the round, slightly larger version is optimized for optical performance whereas the square Veronica-SQ has adhesive tape for easy installation and a slightly smaller footprint.

About LEDiL:
The only true specialist in the field of secondary optics for high-power and lighting-class LEDs, LEDiL has been producing precision-engineered optics and reflectors since 2002 and now boasts nearly 1000 standard products optimized for use with LEDs produced by the world’s prominent LED manufacturers. Custom solutions are also commonly developed with minimal end-user tooling investment required. With production in Finland and China and a global network of authorized distributors, LEDiL’s products are market-competitive and readily available.
