Featured | Products, Materials + Tools | Jan 07, 2016

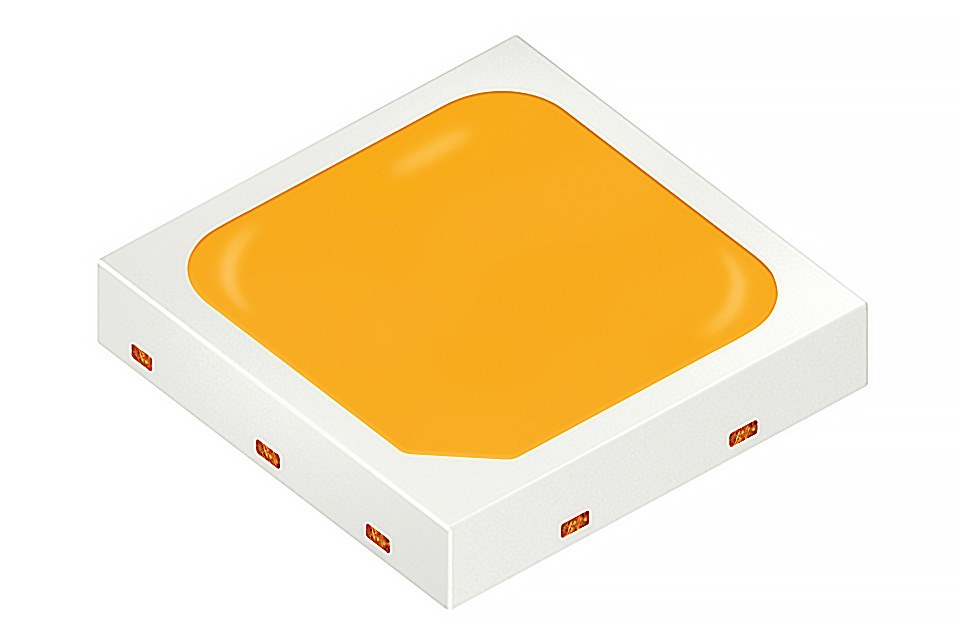

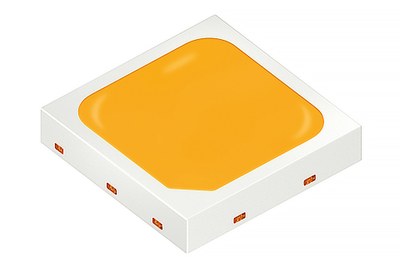

Consumer Lighting Solutions with the New DURIS® S 5 Portfolio

The further improved and expanded new DURIS® S 5 family consists of various white and now also colored medium power LEDs with compact dimensions and excellent efficiency, offering manufacturers and designers even more versatility and flexibility.

DURIS® S 5 White provides flexibility in forward voltage and luminous flux with high lifetime even at high temperature. New phosphor, new lead frame and an upgrade of the chip lift the LEDs to a new level of performance.

For smart lighting solutions and all kinds of colored lighting applications, customers now can rely on the new DURIS® S 5 Color. There are four color versions – Red, Amber, Green and Deep Blue – offering high efficacy and excellent temperature stability. The footprint of 3.0 mm x 3.0 mm complies with industrial standards. All red, amber, green and deep blue DURIS® S 5 Color versions can be used in color mixing systems, as well as in combination with white LEDs. They are all based on the same chip technology using phosphor conversion to generate the saturated red, amber and green colors. Therefore they all feature the same electrical behavior and are compatible with the DURIS® S 5 White, which greatly simplifies driver design. In addition, the red and amber DURIS® S 5 versions are best in their class for lumen maintenance and temperature stability between 25° and 85° Celsius, reducing the complexity of color management in different conditions.

The use of Red and Amber in combination with white LEDs can compensate for missing colors in the white spectrum, thereby increasing the color rendering index (CRI) with rich Ra values. Further characteristics include an epoxy-based package and a footprint of 3.0 mm x 3.0 mm that complies with industrial standards. The green color versions offer an extremely high efficacy of 170 lm/W – a value which is three times higher than that of comparable standard green color LEDs. This reduces assembly costs as customers need fewer DURIS® S 5 Color LEDs to achieve the same brightness level for their applications and can be more flexible in their PCB design. Brightness levels are high: 28 lm for red, 45 lm for amber, 170 lm for green and 420 mW for deep blue.

For additional information, please visit the DURIS® S 5 website

About Osram:
Osram, based in Munich, is a globally leading lighting manufacturer with a history dating back more than 100 years. The portfolio ranges from high-tech applications based on semiconductor technology, such as infrared or laser lighting, to smart and connected lighting solutions in buildings and cities. OSRAM had around 33,000 employees worldwide at the end of fiscal 2015 (September 30) and generated revenue of almost €5.6 billion in that fiscal year. The company is listed on the stock exchanges in Frankfurt and Munich (ISIN: DE000LED4000; WKN: LED 400; trading symbol: OSR).
Additional information can be found at www.osram.com.
