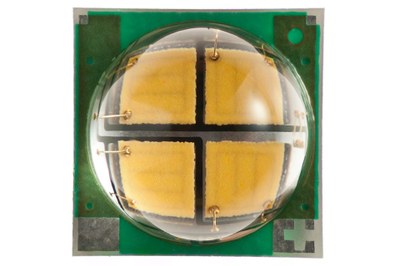

Cree Adds EasyWhite™ Technology to XLamp® XM-L Series: A Lower-Cost Solution for 25-Watt Equivalent Replacement Lamps

Cree, Inc., a market leader in LED lighting, announces the industry’s first lighting-class LED component that combines the high light output and small footprint of the XLamp® XM-L LED package with Cree’s unique EasyWhite™ color mixing technology. The new XM-L EasyWhite LEDs reduce the cost and complexity associated with binning and color mixing, as well as using multiple discrete LEDs. This can enable customers to reduce the price and improve the performance of LED solutions for compact directional lighting, such as 20-25 watt halogen MR, PAR and B10-style (candelabra) replacement lamps.

Features:
• Available in 4-step and 2-step EasyWhite bins at 2,700K, 3,000K, 3,500K, 4,000K CCT.
• Wide range of operating current - up to 2A @ 6V
• 85° C binning and characterization
• Available in 6V and 12V versions
• Low thermal resistance: 2.5° C/W
• Wide viewing angle: 115°
• Wide variety of CRI choices: standard CRI as well as 80, 85, 90 minimum CRI.
• Electrically neutral thermal path
• Unlimited floor life at ≤ 30ºC/85% RH
• Reflow solderable - JEDEC J-STD-020C

In these applications, previous single LED solutions were not able to achieve enough light output to match the incumbent incandescent products. Traditional multi-LED configurations complicate the overall system design and have the added disadvantage of not emulating the look of a light bulb’s filament. The XM-L EasyWhite LED enables a single LED component to deliver the performance and design simplicity needed for 25 watt replacement lamps.

At just 4 watts of power, XM-L EasyWhite LEDs produce up to 340 lumens at an operating temperature of 85 C in warm white (3000K) in a single component. Like XLamp MT-G LEDs, XM-L EasyWhite LEDs are characterized at 85 C, allowing customers to accurately select XM-L LEDs at a specific color temperature. The XM-L EasyWhite is available with the industry’s tightest LED-to-LED color consistency, replicating the uniformity of incandescent light bulbs.

“XM-L EasyWhite LEDs give customers the best of both worlds: the color consistency of an EasyWhite array in the compact size of a discrete component,” said Mike Watson, Cree, senior director, marketing and product applications, LED Components. “In 2009, Cree was the first LED manufacturer to eliminate binning for LED components with our innovative EasyWhite color mixing technology. XM-L EasyWhite LEDs, along with the recently introduced XLamp MT-G EasyWhite LEDs, accelerate the adoption of LED lighting into applications traditionally addressed by energy wasting halogen sources.”

XM-L EasyWhite LEDs are available in 2-step MacAdams Ellipse color points. They are also available in either a 6V or a high voltage 12V configuration, which enables the use of efficient, small and low-cost drivers. XM-L EasyWhite LEDs have the same low profile dome and 5mm x 5mm footprint as the current XM-L LED family.

XLamp XM-L EasyWhite LEDs are available now in sample and production quantities with standard lead times. XM-L EasyWhite LEDs are available in both standard CRI and high CRI (minimum 85 and 90) versions at multiple color temperatures. To locate a distributor, please visit www.cree.com/buyxlamp.

About Cree:
Cree is leading the LED lighting revolution and making energy-wasting traditional lighting technologies obsolete through the use of energy-efficient, environmentally friendly LED lighting. Cree is a market-leading innovator of lighting-class LEDs, LED lighting, and semiconductor solutions for wireless and power applications.
Cree’s product families include LED fixtures and bulbs, blue and green LED chips, high-brightness LEDs, lighting-class power LEDs, power-switching devices and radio-frequency/wireless devices. Cree solutions are driving improvements in applications such as general illumination, backlighting, electronic signs and signals, variable-speed motors, and wireless communications.
For additional product and company information, please refer to www.cree.com/. To learn more about the LED Lighting Revolution, please visit www.creeledrevolution.com/.
