Products, Materials & Tools | Oct 13, 2014

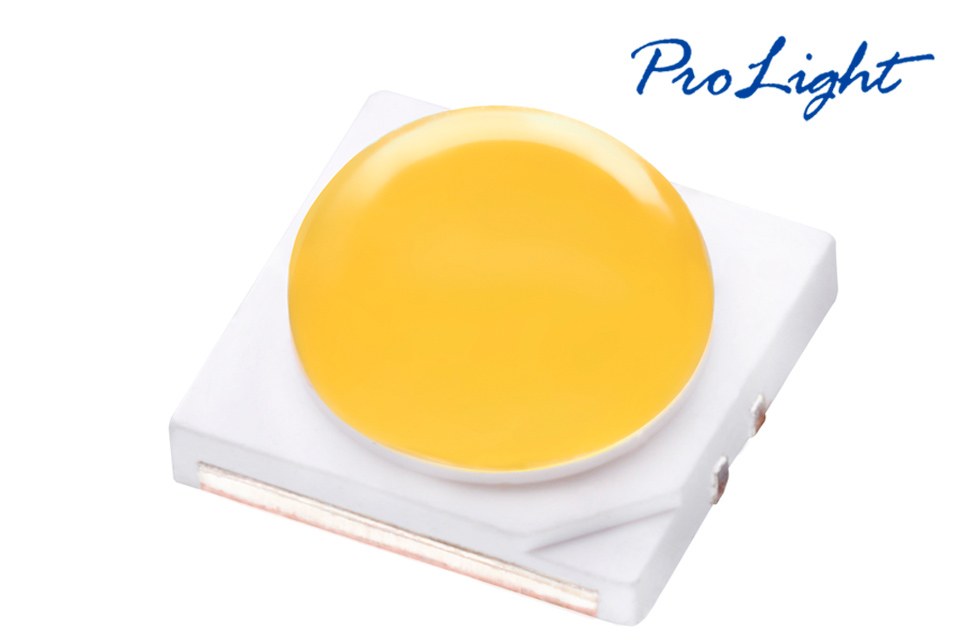

ProLight High-Current LED-Grande 3535

ProLight’s Grande 3535 is a high-current LED in single chip package. The light output of Grande3535 can reach 360 lm at the current 1200 mA. Grande 3535 adopts ProLight’s exclusive technology which can solve silicon chap and heat resistance problems to provide the best lm/$. ProLight’s Grande 3535 will be exhibit at Booth: 1A E38 in Hall 1 at Hong Kong International Lighting Fair. Welcome to visit us and to find out ProLight excellent products.

Specification:
Size: 3.45x3.44
Watt: 5W (1200mA @ 3.6V)
Lumen: 360

Features:
High Thermal Eutectic Technology
Grande 3535 adopts ProLight’s High Thermal Eutectic Technology which can reduce heat resistance similar to flip chip. In the lifetime test, the aging trend of Grande 3535 is almost the same as flip chip.
Special Silicone Formula
Grande 3535 adopts optical grade silicone formula which can avoid large lumen depreciation caused by silicon chap when energy is too intensive.
Exclusive Phosphor Coating Technology
Grande 3535 uses patented phosphor coating technology. This technology will resolve light uniformity issue faces when using horizontal die which emits in all direction. The package is suitable for applications that use 2nd optics such as directional lighting and wall washer.

ProLight’s Grande 3535 is a high-current LED in single chip package. The light output of Grande3535 can reach 360 lm at the current 1200 mA.

For additional information, please visit www.prolightopto.com or contact sales@prolightopto.com

About ProLight Opto Technology Corp:
Founded in October 2004, ProLight Opto Technology Corporation is a professional manufacturer of LED packaging, dedicated to the research, development, and manufacturing of mid-to-high-power, high-reliability LED packaging. Through our products, we create value for our customers with best-in-class optics and heat dissipation. The main applications of our products include stage lighting, in door & outdoor billboard displays, commercial lighting, handheld lights, automotive lighting, other special-purpose lighting.
