SemiLEDs Introduces 10W Integrated RGBW LED

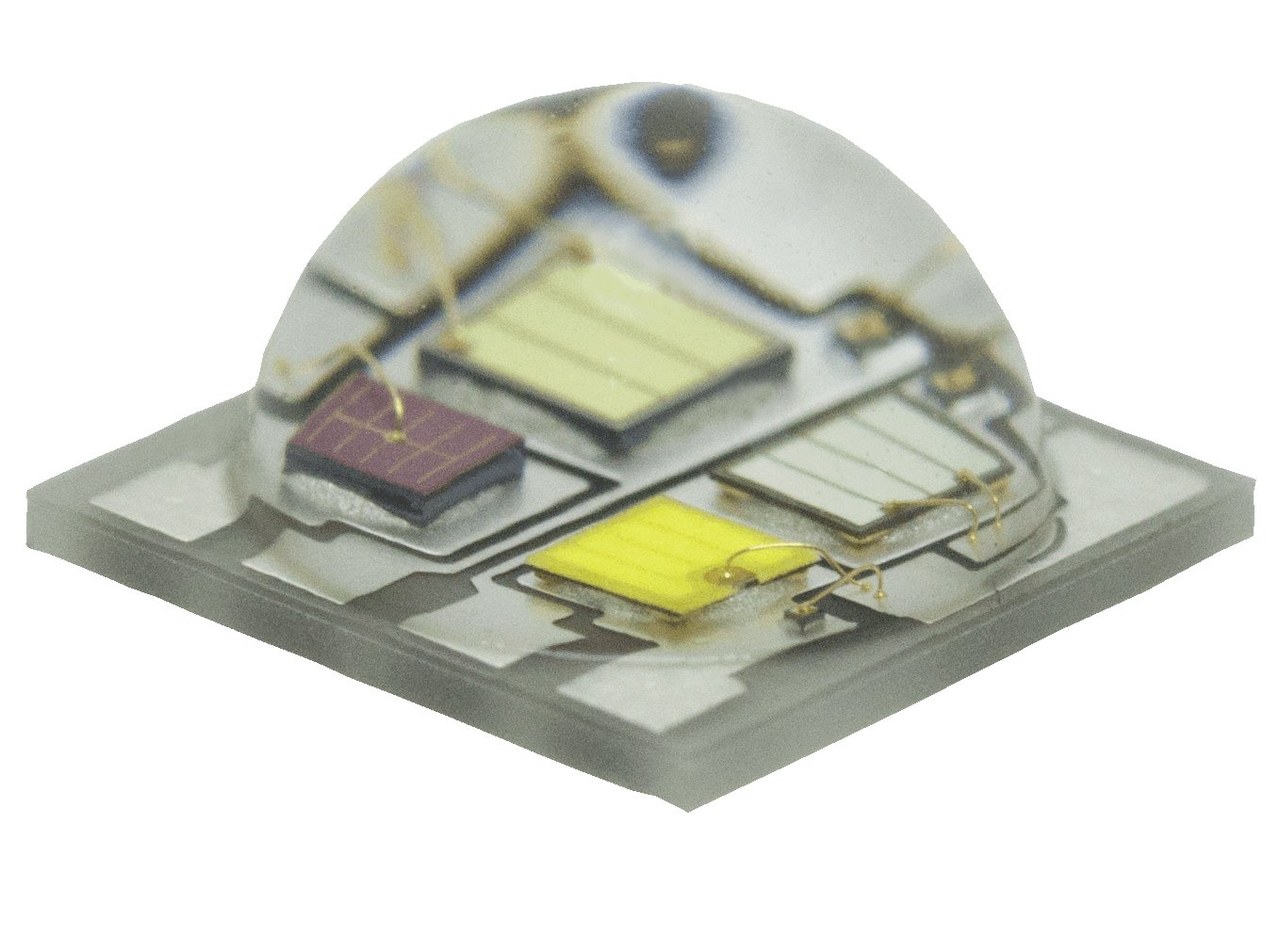

SemiLEDs Corporation, a world leader in vertical LED technology solutions, today announced the introduction and release of the 10-Watt M63 RGBW integrated 6363 LED. The 4-channel M63 RGBW delivers over 410 total lumens of combined red, green, blue and white light output. The compact 6.3mm x 6.3mm dimensions enable the M63 RGBW to fit in a wide range of color-changing applications, including entertainment (stage lights, backdrops and spotlighting), large scale displays, and color-adjustable luminaires for building façade, wall washing or specialized interior luminaires.

“The M63 RGBW demonstrates a new level of LED product integration from SemiLEDs”, commented Dr. Ilkan Cokgor, Executive VP of Sales and Marketing for SemiLEDs. “By combining three colors, plus an independent phosphor-coated white emitter, onto a single LED package, our customers will be able to better optimize the optical and thermal properties of their design, while minimizing the manufacturing complexities of their luminaires or large scale displays. This integrated approach is enabled by our well-validated and robust metal vertical LED product portfolio, which can be reliably driven harder to deliver higher than average lumen density and increase the lumens per dollar,” Dr. Cokgor added.

The integrated package is the first to bring together SemiLEDs vertical, white chip, and ceramic packaging technologies. Measuring just 6.3mm on a side (39.7 square mm/.06 square inch), the compact multi-color LED opens the door to arrays with cumulative lumen-densities in excess of 6000 lumens per square inch. Beyond just the size and potential for high-lumen densities, the square footprint also greatly simplifies color mixing and integration with secondary optics, including narrow beam spotlights which benefit from the symmetry and depend upon minimized source sizes. When compared to a strictly RGB source, the addition of discrete white to the color changing LED architecture enables a broader spectrum and more natural white palette to be projected. The white source in the M63 RGB delivers 100 lumens per watt at a correlated color temperature (CCT) of 6300K to 8000K. By its nature, an RGBW LED should include a cool-white source to compliment the additive nature of the colors in the integrated device.

“Every current technology trend is towards higher integration, both to reduce component count and simplify the final design, and that carries with it a ripple effect that continues into process engineering and manufacturing,” continued Dr. Cokgor. “As a result of its broad technology offering, SemiLEDs is in a somewhat unique position to reliably deliver these higher levels of integration, as reflected in our new M63 RGBW. High quality LED manufacturers will continue to differentiate and add value to the industry by driving increasing integration at both the component and subsystem level,” he concluded.

For product information, please visit, email

About SemiLEDs Corp:

SemiLEDs develops and manufactures LED chips and LED components primarily for general lighting applications, including street lights and commercial, industrial and residential lighting, along with specialty industrial applications such as ultraviolet (UV) curing, medical/cosmetic, counterfeit detection, and horticulture. SemiLEDs sells blue, green and UV LED chips.
