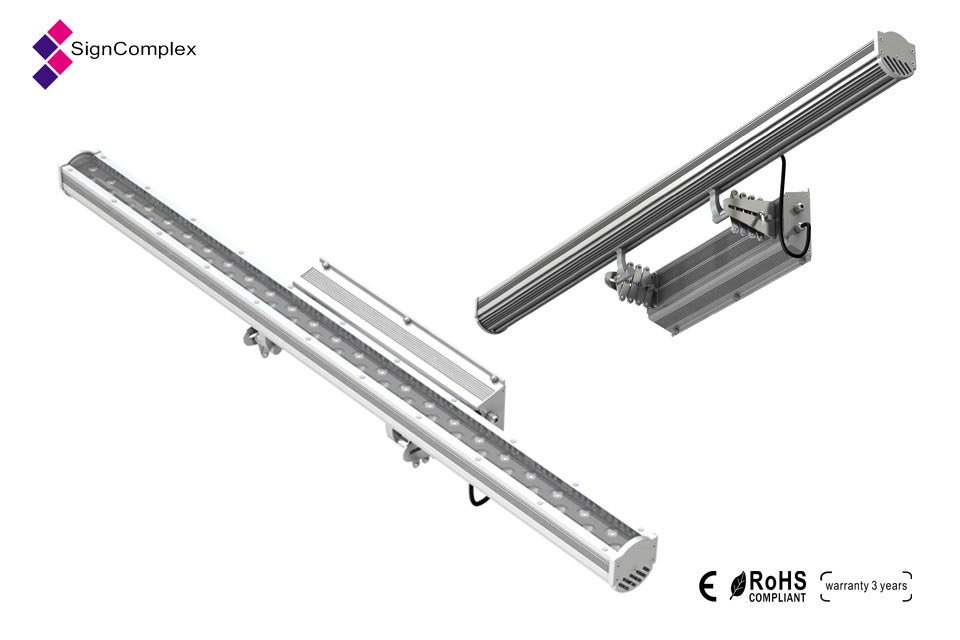

Signcomplex 150W Wallwasher

Features: • Property designed built- in 150W driver saves external power supply and extends connection • Property designed built- in DMX controller, directly connecting DMX console • Stretchable housing extends highlight on architectural objectives • Enormous light delivering effects • High waterproof performance • Silver oxidization with major aluminum parts preventing corrosion • Large scale of heat management area for long life

Technical Specifications:
Input voltage:     AC100-240V/50-60Hz
Input current:     2A Max
Power:              150 W
PF                      ≥0.9
Control Mode:     DMX512
XL-150-AW-RGB-01: Built-in program, needs to set DMX address, needs to match the USB DMX Interface Controller.
XL-150-AW-RGB-02: No built-in program, do not need to set DMX address, and ordinary DMX controller used together.
LED type:          Edison 3 in 1 RGB LED
LED Quanty:     48 LED
Beam angle:     25 or 38
Housing:          Aluminum + tempered glass
Rate:                IP 65
Operating Temperature: -10-40 C
Storage Temperature: -20-60 C
Protection against electric shock: level I
GW:                 10.2kg
NW:                  9kg

Further Properties:
• Custom - designed built-in driver 150W driver saves external power supply and extends connection
• Custom - designed built-in DMX controller, directly connecting DMX console
• Stretchable housing extends highlight on architectural objectives
• Enormous light delivering effects
• High waterproof performance
• Silver oxidization with major aluminum parts preventing corrosion
• Large scale of heat management area for long lifespan

For additional information see:
http://www.signcomplex.com/newproducts_2011_1105.asp
