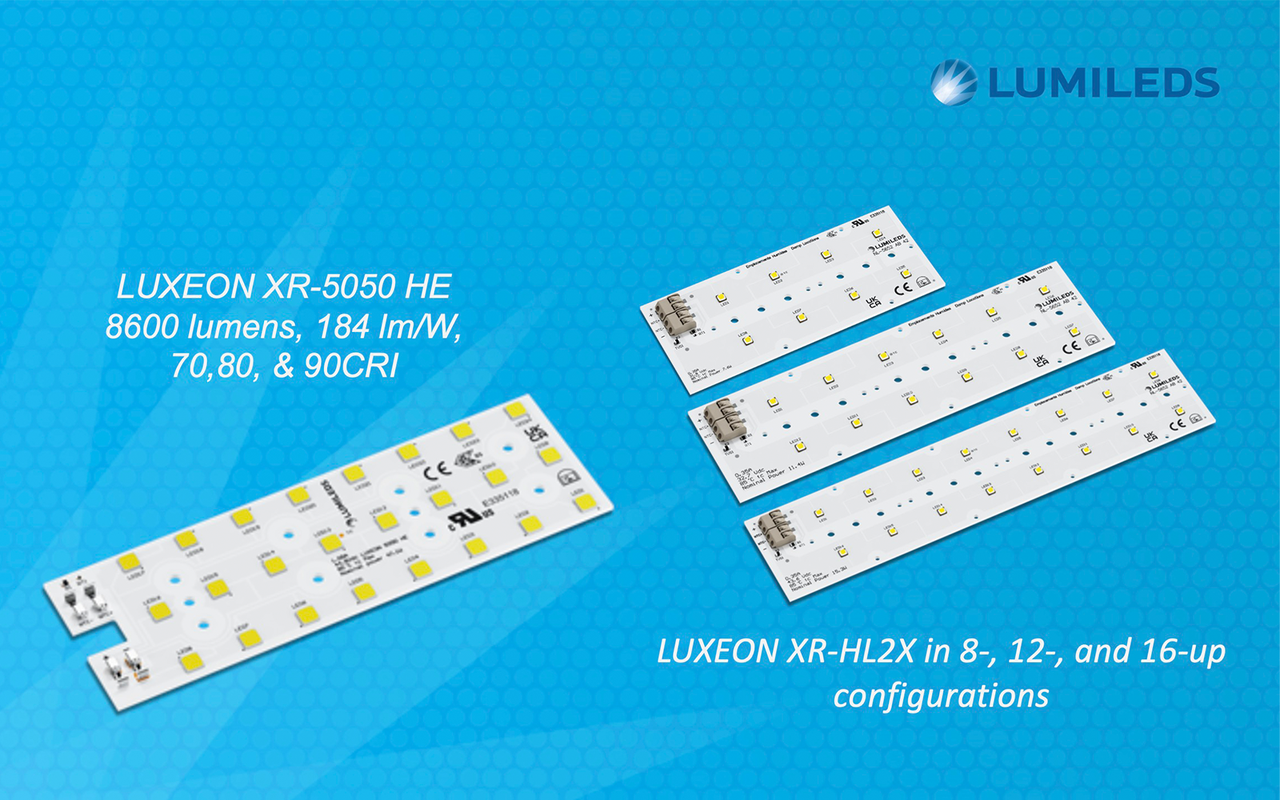

LUXEON XR-HL2X and XR-5050 HE Standard Modules Provide a Faster Path to Lighting Solutions

Utilizing two of Lumileds most popular and powerful LEDs, the company has released two new standard integrated modules, LUXEON XR-HL2X and LUXEON XR-5050 HE. Both offer lighting engineers a faster, simpler way to realize powerful, highly efficient lighting solutions. Standard optics are available for all the new boards, and both offer typical efficacy of 184 lumens per Watt.

LUXEON XR-5050 HE
With light output exceeding 8600 lumens at 184 lumens per Watt, ≤ 3SDCM color control, and 70, 80, and 90CRI options across the CCT range, LUXEON XR-5050 HE is a highly efficient solution. Both indoor and outdoor lighting, such as architectural, historical, high bay, pedestrian and roadway and sports lighting, can be realized more quickly and efficiently with the new LED boards from Lumileds.

“The energy crisis is top of mind for all and every advance is important. LUXEON XR 5050 HE delivers the efficacy in a robust format with proven LUXEON 5050 HE LEDs in a format that speeds time to market,” said Benjamin Khoo, Product Manager. “With immediate availability of standard optics and drivers, this is perhaps the most efficient and appropriate solution for high output energy saving fixtures.”

LUXEON XR-HL2X
For typical light output levels ranging from 1400 to 2800 lumens, in 3000 and 4000K, 70CRI, with board level color control ≤ 5 SDCM, the LUXEON XR-HL2X is an excellent selection. The standard 8-up, 12-up, and 16-up boards use the Zhaga footprint and are compatible with off-the-shelf drivers, optics, and heat sinks. For many low bay and outdoor area lighting solutions, LUXEON XR-HL2X is exactly what is needed and eliminates the need to design and test boards and configurations.

Both of the new standard solutions use factory selected LEDs for color and performance consistency mounted on an MCPCB substrate that provides thermal efficiency and mechanical robustness. Both have UL8750, ENEC, CE, and UKCA approbations.

Complete product information and datasheets for LUXEON XR-5050 HE and LUXEON XR-HL2X LED can be found at https://lumileds.com
