Edison Opto | UE Series | SSL | Featured | Aug 01, 2023

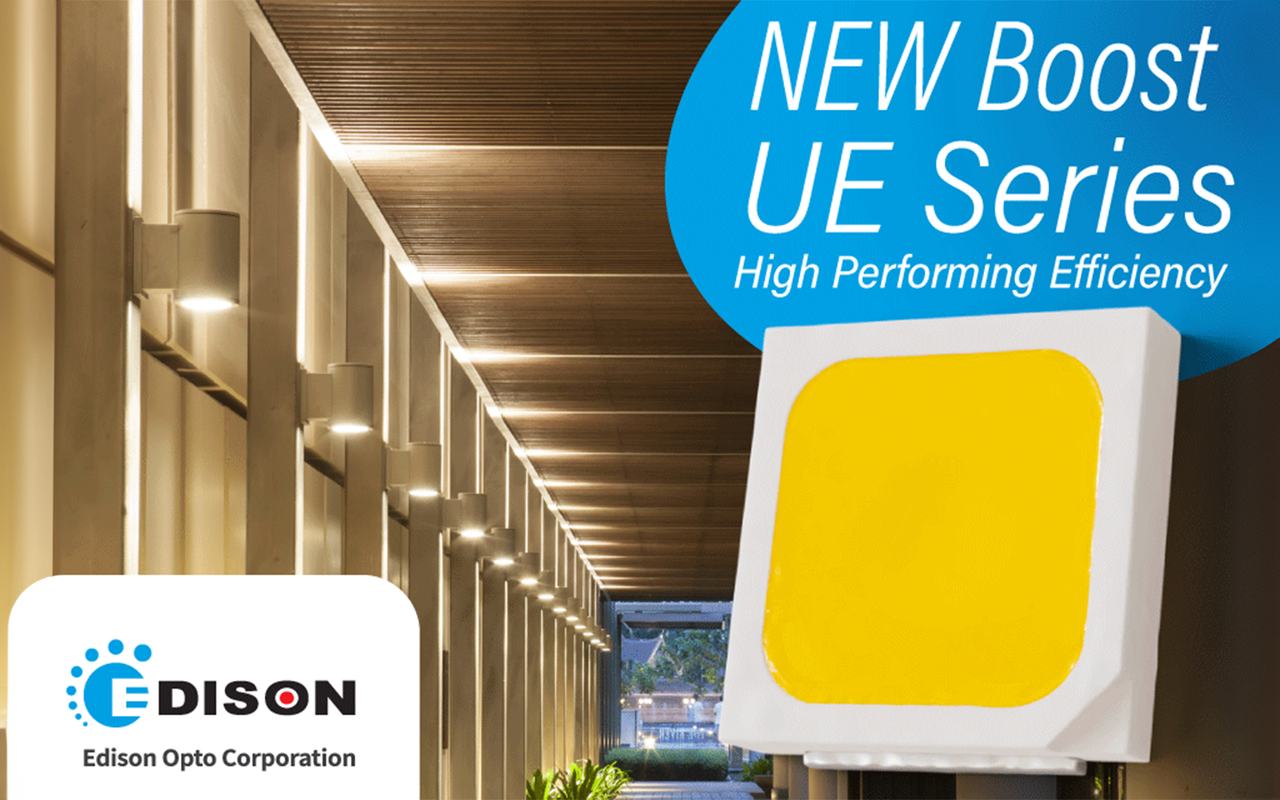

NEW Boost UE Series High Performing Efficiency

The PLCC UE series features ultra-high efficiency and is almost equal to a loose part of CRI. The compact package size of the PLCC UE offers high flexibility in lamp design and expands the range of applications. With the outperforming efficiency, We optimized the UE series for use in Down Light, Tri-proof Light, Pendant Light, General Lighting, and boutique and luxury apparel stores.

The many features of the PLCC UE series offer numerous advantages and benefits.  The series's high reliability enables it to produce a high light output from low-profile general lighting fixtures.  The PLCC UE series have high color consistency.  They possess high energy efficiency with an output of 230lm.  Color variation of LED light stays within the Macadam "3-Step/5-step" ellipse from the chromaticity center.  The durability of the chip is well tested and reported at L80>72000 hours.  Color temperature options range from 5000k to 3000k.  The chips are compliant with the ANSI C78.377 Standard.

The features of the PLCC UE series not only offer benefits in performance but in the manufacturing process.  We based the chip of the series on Blue InGan technology.  They are suitable for all SMT assembly methods compatible with the IR reflow process.

Highly environmentally friendly, all the chips are mercury-free.  Plus, they are compliant with CO2 reduction policies and are RoHS compliant.  Ideal replacements for halogen and CDM lamps.  The best combination of luminous, color uniformity, and efficiency.

Read more about the
NEW Boost UE Series High Performing Efficiency

About Edison Opto:
Edison Opto from New Taipei, Taiwan, was built in 2001 as the parent company and Subsidiary Edison Opto USA Corp. to service North American base customers. The company’s mission is to deliver customers a complete LED product line from components to modules as an integrated design manufacturing service to support customers manage every issue while designing LED lighting products.
