HCL | Components | LED Modules | Apr 29, 2020

GlacialLight - New Natural Sunlight GL-LMR50-12-24V-NL with DC Input Voltage

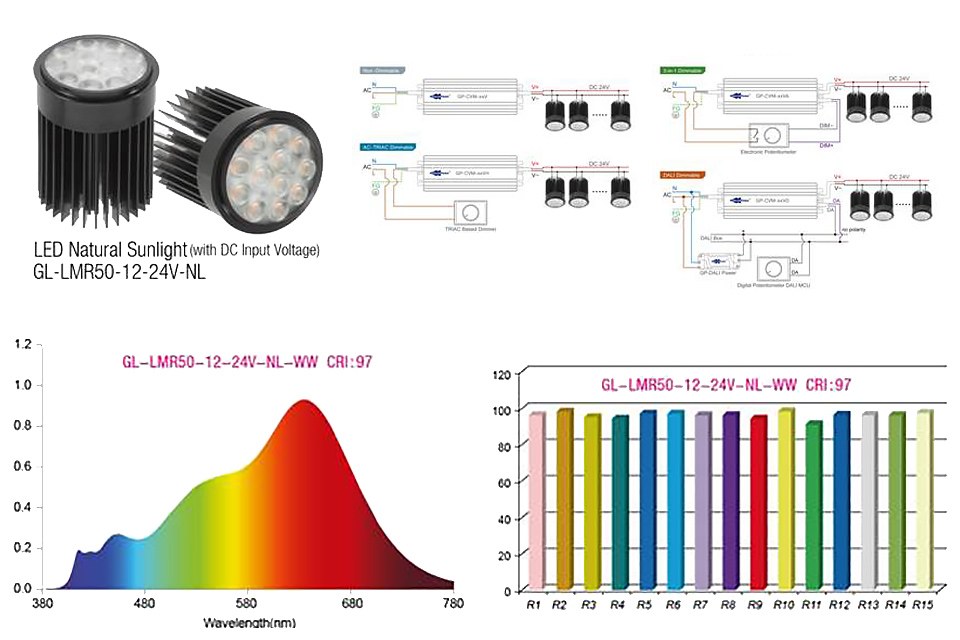

GlacialLight, the LED lighting division of GlacialTech Inc., announces the natural sunlight GL-LMR50-12-24V-NL with DC 24 V of 3000 K warm white. With a CRI of 97, as well as the CQS (Color Quality Scale) is up to 97. The color fidelity index (TM-30-15 Rf) and color gamut score (TM-30-15 Rg) are close to natural sunlight. It can be non-dimmable and dimmable with given the appropriate DC electrical signal; the brightness can be freely adjusted with DC constant voltage PWM signal. GlacialPower GP-CVM constant voltage series driver provides non-dimmable and most popular three dimming functions include AC-TRIAC dimming, 3-in-1 dimming and DALI dimming for greater lighting flexibility and are suitable for GL-LMR50-12-24V-NL.

Features:
•    High CRI is 97
•    High CQS is 97
•    TM-30-15 Rf is up to 95
•    TM-30-15 Rg is up to 103
•    DC 24 V input voltage and polarity insensitive
•    30° and 40° beam angle available
•    Can be dimmable with given the appropriate DC electrical signal (typ. PWM)
•    Optional round and square housing accessories in black and white colors
•    Optional single, double and triple housing accessories
•    Mistake-proofing design for user friendly
•    Expandable design of installation lighting fixtures

The GL-LMR50-12-24V-NL offers the round and square single housing in black and white colors for optional. Besides that, it also provides round double housing and round triple housing. The beam angle comes in 30° and 40° degrees, making this new product a flexible lighting solution for any space. The elegant, simple design with rounded lighting fixture makes it perfect for creating the lighting atmosphere. The GL-LMR50-12-24V-NL is well suitable use for spot lighting, residential lighting, commercial lighting, hallway lighting and cabinet lighting.

The GL-LMR50-12-24V-NL features a mistake-proofing design to connect a DC 24 V power input for user friendly. The installers do not need to distinguish the polarity between the positive and the negative poles of power input; it makes easily and avoids damaging the units with wrong polarity power input. This new product also comes in a parallel expandable design. It can directly connect lots of DC lighting fixtures with one constant voltage driver if it provides enough watts. It saves extra LED drivers fee and working hours.

The natural sunlight GL-LMR50-12-24V-NL with high color rendering index 97 produces a continuous spectral distribution across all wavelengths and no color gaps, just like the spectral distribution of sunlight. It is uniquely designed with full spectrum technology that you can see each color as nature light and always real.

For more information about the GL-LMR50-12-24V-NL, please visit http://www.glaciallight.com/products/Natural-Sunlight_GL-LMR50-12-24V-NL.htm

About GlacialLight:

GlacialLight, the lighting division of GlacialTech, manufactures LED lighting solutions for indoor/outdoor applications and both residential and commercial uses. As well as having a wide range of finished LED lighting products, GlacialLight also offers its clients the option of customizing products for specific needs. - www.GlacialLight.com
