Home > Products & Services > GlacialPower Launches LED Constant Voltage TRIAC Dimming Drivers for Low Voltage Areas
SSL | Components | Driver Modules | Nov 02, 2020

GlacialPower Launches LED Constant Voltage TRIAC Dimming Drivers for Low Voltage Areas

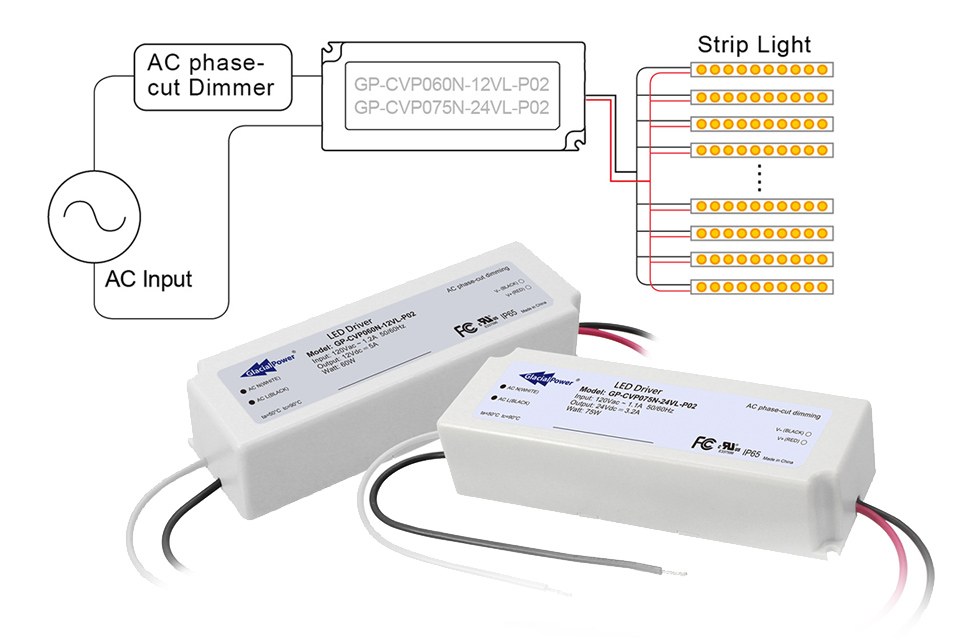

GlacialPower, the power division of the LED technology manufacturer GlacialTech Inc, announces the new GP-CVP060N-12VL and GP-CVP075N-24VL LED constant voltage driver are suitable for low voltage areas. They are available in 12V DC output rated power of 60 W and 24V DC output rated power of 76.8 W. These drivers support TRIAC dimming function, and appropriate for LED strips and under-cabinet lights application in places such as restaurants, jewelry shop, home and theater.

Features:
•    AC input range from 108 to 132 VAC
•    Constant voltage mode
•    Work with leading edge and trailing edge TRIAC dimmers
•    AC phase-cut dimming
•    IP65 rated
•    Safety protections include OVP, OCP, SCP, and OTP
•    Appropriate for LED strips application
•    RoHS compliant

The dimming adjustment output of the GP-CVP060N-12VL and GP-CVP075N-24VL LED drivers range from 5% to 100%. They provide a smooth dimming curve without flicker. The drivers feature AC phase-cut dimming also compatible with leading edge and trailing edge TRIAC dimmers for a wide range of applications. As well as fulfill the AC dimming requirement in the LED lighting market. Both the typical power conversion efficiency is 83%. They support an AC input voltage range from 108 to 132 VAC.

The fully isolated case design enables an operation temperature range of -20°C to 50°C, means that LED driver can be used in most environments. Additionally, with IP65 approval as well as four different protections: Over-Voltage Protection (OVP), Over-Current Protection (OCP), Short-Circuit Protection (SCP) and Over-Temperature Protection (OTP), these drivers are highly secure and equipped with a long design lifetime.

Read more information about the GP-CVP060N-12VL and GP-CVP075N-24VL, please visit glacialpower.com/products/led-driver-CV-TriacDIM-CVP-LV.htm

About GlacialPower:

GlacialPower, the power division of GlacialTech, manufactures Switch Mode Power Supply (SMPS) solutions for LED lighting applications. GlacialPower provides LED Drivers and power supplies with a wide wattage range for a variety of applications. GlacialPower power supplies use attractive and contemporary design to deliver quality products that possess innovative features and ease of usability for customers. - GlacialPower.com
