Horticulture | Luminus Devices | Calculator | Simulation Tools | Oct 15, 2020

Luminus Introduces Online Horticulture Calculator

Luminus Devices new horticulture calculator offers system engineers the opportunity to choose from over 30 of Luminus horticulture LEDs and create their own ‘recipe’ for specific luminaires and to save and output a complete LED bill of materials. System designers can select multiple LEDs and establish operating conditions, including current and junction temperature, and calculate for photosynthetic photon flux (PPF), optical power, and electrical power. Engineers can test virtually unlimited variations and immediately see spectral and performance data.

Users can easily create and modify custom horticulture spectral solutions

“Our extensive portfolio of horticulture LEDs span the photo biological spectrum from 360nm to 800nm+. And with three package platforms and five product families, it’s easy for our customers to select the best combination of LEDs to achieve the specific PPF or PPF per Watt that they need,” said Yves Bertic, Senior Director of Global Product Marketing. “With this new calculator, users can create custom solutions and see in real time how changes in their LED product mix will affect key luminaire parameters.

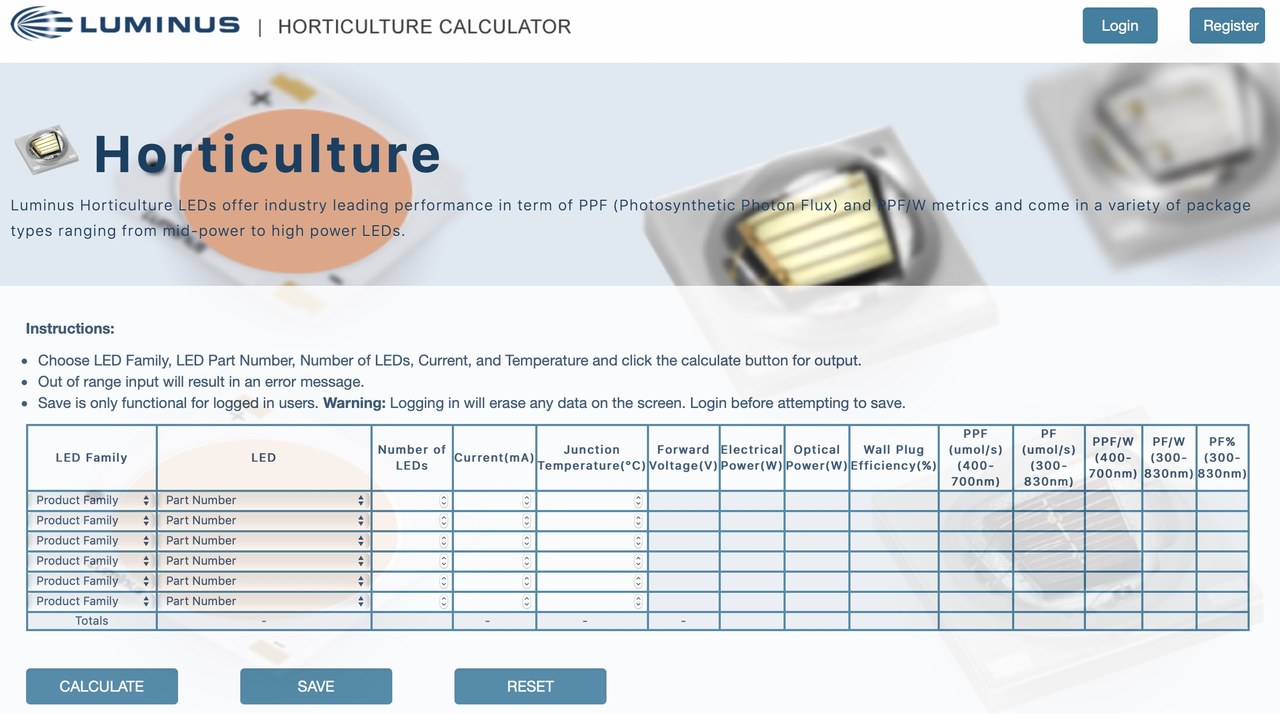

https://calculator.luminus.com/horticulture

Inputs/Selections

  • LED part number
  • Number of LEDs
  • Drive current
  • Temperature

Outputs

  • Forward Voltage (V)
  • Electrical Power (W)
  • Optical Power (W)
  • Wall Plug Efficiency (%)
  • PPF (umol/s) 400-700nm
  • PF (umol/s) 300-830nm
  • PPF/W 400-700nm
  • PF/W 300-830nm
  • PF% 300-830nm

By using the free horticulture calculator, users can evaluate and compare the results of using mid-power and/or high-power LEDs, packaged LEDs and/or COBs, and ultimately produce a bill of materials with specific part numbers for the mix that serves them best.

https://calculator.luminus.com/horticulture

About Luminus Devices, Inc.
Luminus Devices, Inc. develops and markets solid-state lighting solutions (SSL) to help its customers migrate from conventional lamp technologies to long-life and energy-efficient LED illumination. Combining technology originated from the Massachusetts Institute of Technology (MIT) with innovation from Silicon Valley, Luminus offers a comprehensive range of LED solutions for global lighting markets as well as high-output specialty lighting solutions for performance-driven markets including consumer displays, entertainment lighting and medical applications. Luminus is headquartered in Sunnyvale, California. For additional information please visit http://www.luminus.com.

For More Information Contact:
Yves Bertic
Luminus Devices, Inc.
ybertic@luminus.com
