100V Linear LED Driver from Diodes Incorporated De-Clutters Low-Power Lighting Designs

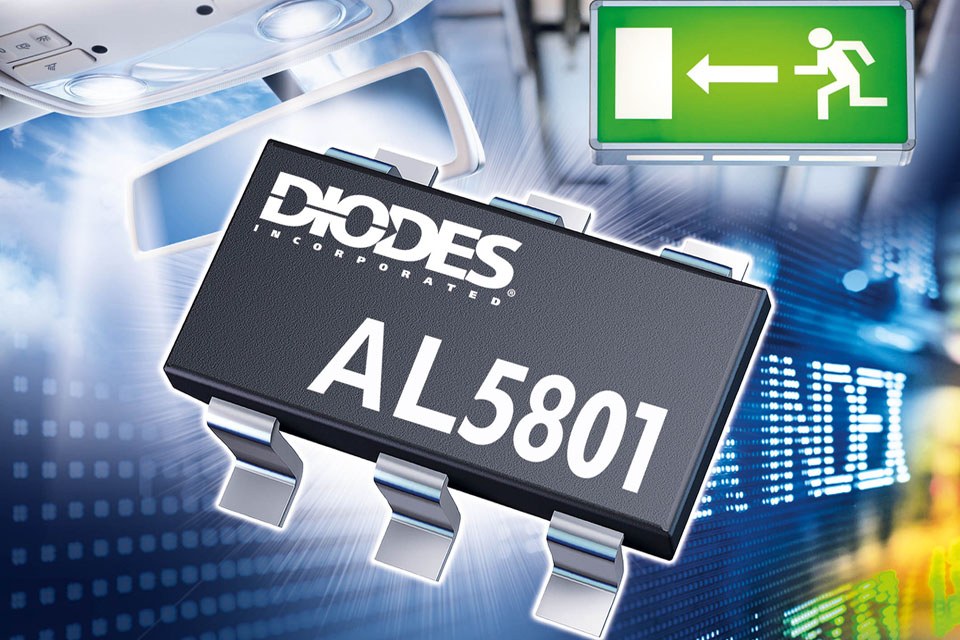

Needing only two additional components, the AL5801 linear LED driver enables designers to simplify automotive interior, signage and general lighting control circuits. Integrating a 100V rated N-channel MOSFET with a pre-biased NPN transistor, this small footprint SOT26 packaged device will drive chains of up to 30 low-power, series-connected LEDs with currents from 20mA to 350mA.

Main Features:
• Feedback pin reference voltage VRSET = 0.56V at +25ºC
• -40 to +125ºC temperature range
• 1.1V to 100V open-drain output
• Negative temperature VRSET co-efficient automatically reduces the LED current at high temperatures
• Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• Low thermal impedance SOT26 package with copper lead frame

The AL5801’s open-drain output operates between 1.1V and 100V, ensuring common 12V, 24V and 48V power rails are supported, while the LED current is set using an external low value resistor. By generating a 0.56V reference voltage across the resistor, the driver’s internal control transistor helps minimize power losses and ensures sufficient supply voltage margin.

Due to the reference voltage’s negative temperature coefficient, the output current is automatically reduced at higher temperatures, helping to protect the LED chain from any damage, thus improving overall circuit reliability. In addition, the AL5801’s wide operating temperature range of -40°C to +150°C means it can be mounted immediately adjacent to LEDs where PCB space is limited.

For applications requiring simple LED dimming, the driver supports PWM output-current regulation, achieved by driving its bias pin with a PWM signal via an external open-collector NPN transistor or open-drain N-channel MOSFET.

The AL5801 100V linear LED driver from Diodes Incorporated is priced at $0.11 USD each in 1k quantities.
For more technical information you may dowload the datasheet or visit Diodes' product microsite
