Code Mercenaries Releases DALI Bus Power Supply

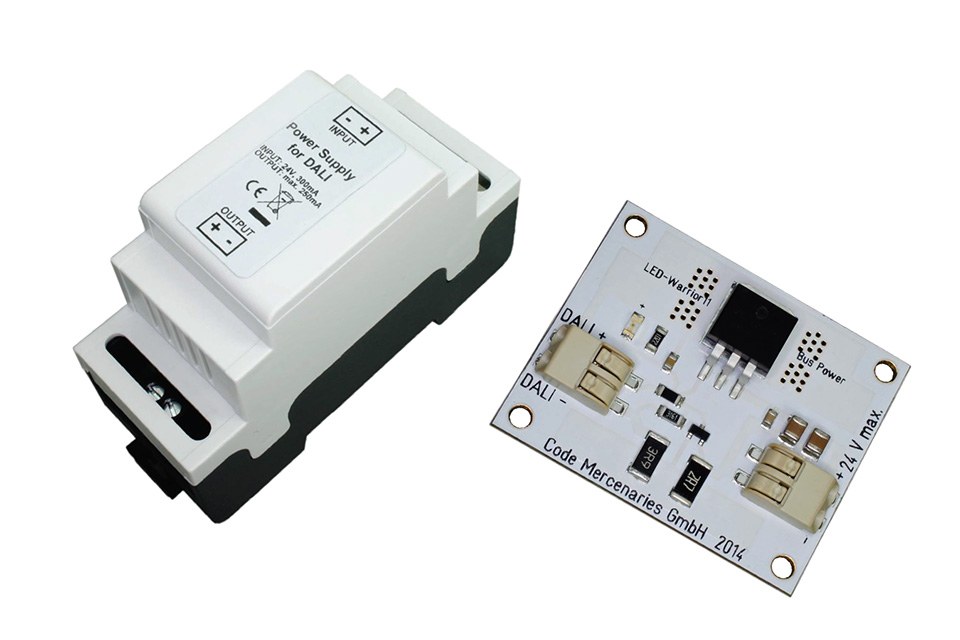

LED-Warrior11 by Code Mercenaries is a low cost option to supply power to a DALI bus. Only a 24 V DC supply is required for LED-Warrior11 to generate the current limited bus power for a DALI system. In many LED installations 24 V DC is already available. Versions for mounting on a DIN rail or as a flat PCB module are available.

Technical Data:
•    DALI bus power supply
•    24 V ±10% DC input, 300 mA
•    Output: typ. 17 V, current limited at typ. 230 mA, max. 250 mA
•    LED for bus power indication and bus traffic indication
•    Size (DIN rail module LW11-DR): 36 x 90 x 58 mm
•    Size (PCB module LW11-MOD): 47 x 38 x 6.5 mm

LED-Warrior11 provides DALI bus power at a fraction of the cost of common DALI power supplies.
For additional information, please visit the LED-Warrior11 product page, download the User Instructions or contact sales@codemercs.com

About Code Mercenaries:
Code Mercenaries is a supplier for the industrial input devices and peripheral manufacturers since 1998. In 2008 Code Mercenaries started to develop and manufacture products for LED lighting applications. Our design philosophy for LED lighting drivers is to deliver maximum efficiency and maximum life cycle to enable the potential of modern LED technology.
