Diodes' High PF Boost LED Driver Reduces Circuit Footprint of Dimmable MR16 LED Lamps

Diodes Incorporated, a leading global manufacturer and supplier of high-quality application specific standard products within the broad discrete, logic and analog semiconductor markets, today introduced the AL8812 DC-DC converter. This device, which features boost, buck and voltage-inverting modes, co-packages a 60 V, 3.6 A-rated power N-channel MOSFET with all primary functions required by a DC-DC controller into the compact DFN6040-12 dual exposed-pad package, enabling a reduction in form factor of MR16 LED lamp circuits.

Applications:
•    Low Voltage LED Lighting such as MR-16
•    General Purpose DC-DC Converter

Features:
•    Operation from 3.0 V to 20 V Input
•    Integrated 60 V, 3.6 A MOSFET
•    Low Standby Current
•    Current Limiting
•    Output Voltage Adjustable
•    Frequency Operation to 100 kHz
•    Precision 2% Reference
•    Totally Lead-Free & Fully RoHS Compliant
•    Halogen and Antimony Free. “Green” Device

With a 6 mm x 4 mm footprint and an off-board profile of just 0.6 mm, the AL8812 converter is comprised of a temperature-compensated reference, a comparator, a controlled duty cycle oscillator with an active current limit circuit, a driver and a high-current output switch.

The AL8812 features an input voltage range of 3 V to 20 V and an output voltage that is fully adjustable up to 60 V. This wide operating voltage range makes the device suitable for medium-voltage LEDs and 12VAC lighting applications, as well as dimmable MR16 LED lamps.

Shut-down current is very low at less than 0.01µA, typical, and its maximum output switch current is 3.6 A. The converter is able to deliver very accurate voltage and current control by incorporating a precision reference with a 2% tolerance.

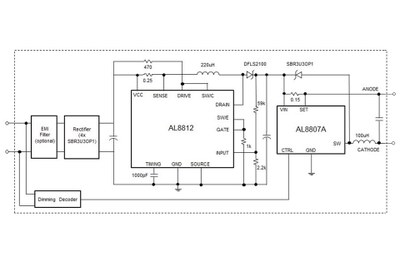

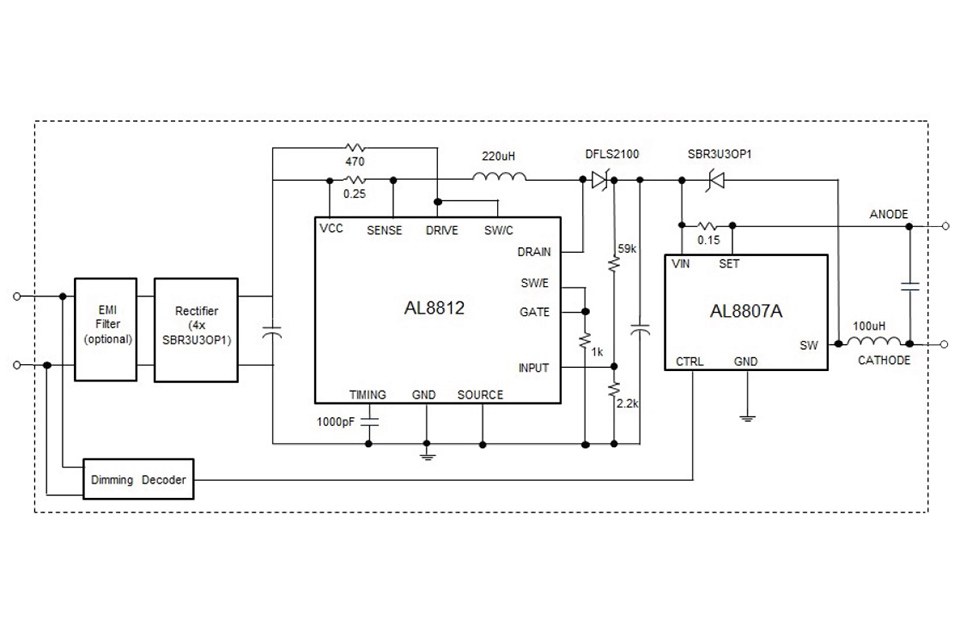

By combining the AL8812 with its AL8807A constant current step-down converter, Diodes Incorporated has produced a two-stage reference design for dimmable MR16 LED lamps that provides good transformer compatibility and low current ripple at a very reasonable BOM cost.

For further information, please visit www.diodes.com or download the AL8812 datasheet
