ELMOS: Efficient High-Voltage LED Controller Family

With the E522.3x chips, ELMOS introduces a new LED controller family. The ICs are designed for input voltages between 5V and 55V and an output voltage of up to 60V in boost mode, and they can be operated – depending on the type – in single and/or dual LED chain mode.

With an ambient temperature range of -40 to +125°C, the ELMOS ICs are made especially for use in harsh environments such as automotive conditions or exterior lighting. Other fields of use are interior house lights and TFT backlighting.

In addition to high robustness, the components offer a great variety in the selection of circuit topologies, such as boost, SEPIC, buck-boost, and buck. The switching frequency can be adjusted to up to 600kHz by means of an external resistor or synchronized with other components in master-slave configuration. Power consumption in sleep mode is only 8µA.

The versatility of the E522.3x controller family is completed by various control and monitoring functions, e.g. protection against short-circuit, overtemperature, overvoltage and undervoltage, and load break.

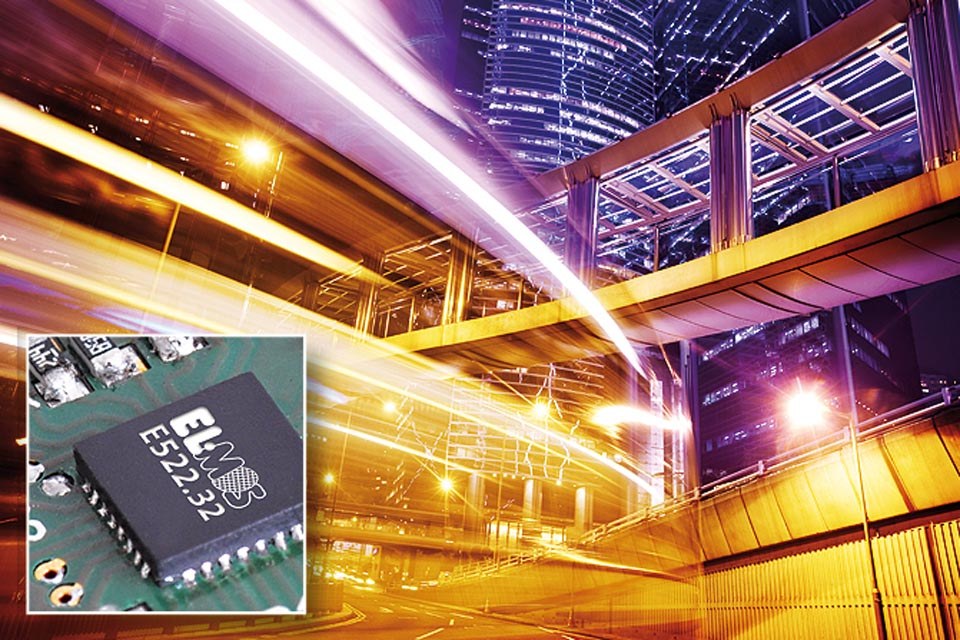

This IC family is supplied in the shape of single or dual controller in a QFN32L5 package.

For more information, application descriptions, and samples, please send an e-mail with the subject “E522.3x” to, visit our website (to the Power Products) on the Internet, or call us at: + 49 231 7549 100.
