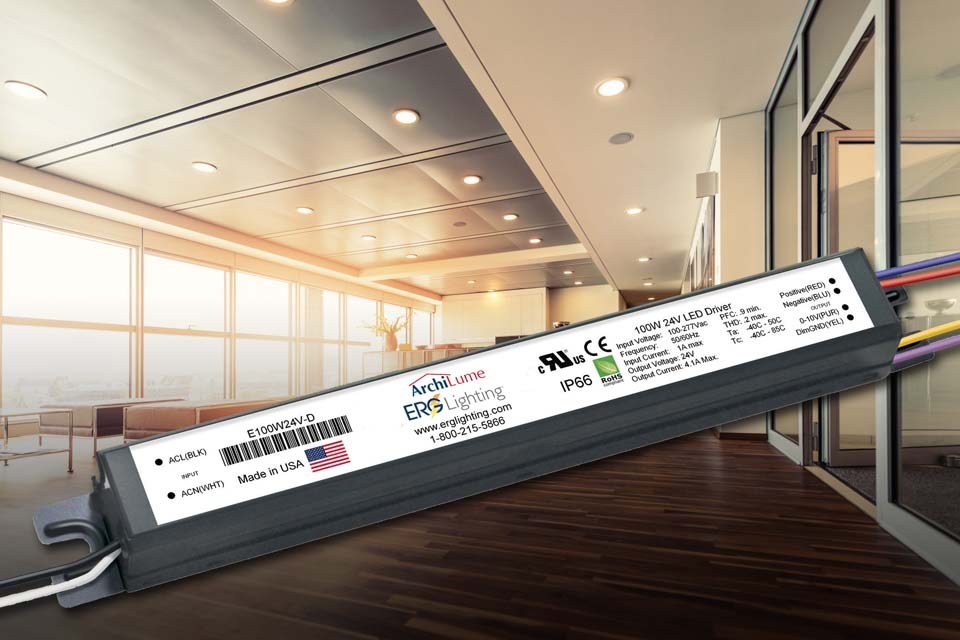

ERG Lighting Announces Ultra-Slim ArchiLume LED Driver Series

The ArchiLume Series of LED drivers from ERG Lighting has the slimmest 100W drivers on the market for illumination applications requiring an elegant look with smooth, flicker-free dimming and constant voltage output up to 100 watts with very low ripple.

They are ideal for applications such as architectural (office, hospitality, commercial, institutional), high-end retail (in-store displays, showrooms), home (kitchen, bathroom) and high-bay lighting.

Available in two versions -- E100W24V and E100W24V-D – both are made and supported in the USA and have safety approvals for the US & Canada with a 5-year warranty.  They provide universal input with minimum power factor correction of 0.90 and maximum total harmonic distortion of 20%. The E100W24V-D features onboard dimming with no flicker, no flashing, and ultra-smooth dimming all the way down to less than 1%. Both drivers measure 17.36” x 1.33” x 1.25” (441 x 34 x 32 mm) to offer the slimmest, sleekest design available.

ERG Lighting is a division of Endicott Research Group, Inc., which has been designing and manufacturing power supplies since 1979. ERG Lighting is ISO 9001 certified and all products are RoHS and REACH compliant.

These drivers are ideal for linear lighting applications where driving multiple strings of LEDs from a single output is required, and can be customized to suit different applications. ERG Lighting complements its ArchiLume family with a range of custom solutions. Options include multiple outputs, ambient light sensing, thermal feedback, a range of dimming control options, and custom mechanicals.

ArchiLume drivers are in production and available for immediate purchase. Standard lead time is stock to 5 weeks. For more information, contact ERG Lighting at ssl@ergpower.com or visit www.erglighting.com.
