Home > Components & Tools > Electronics & Smart Controls > GlacialPower Launches Efficient and Reliable 100 Watt LED Driver
Products, Materials + Tools | Jun 29, 2016

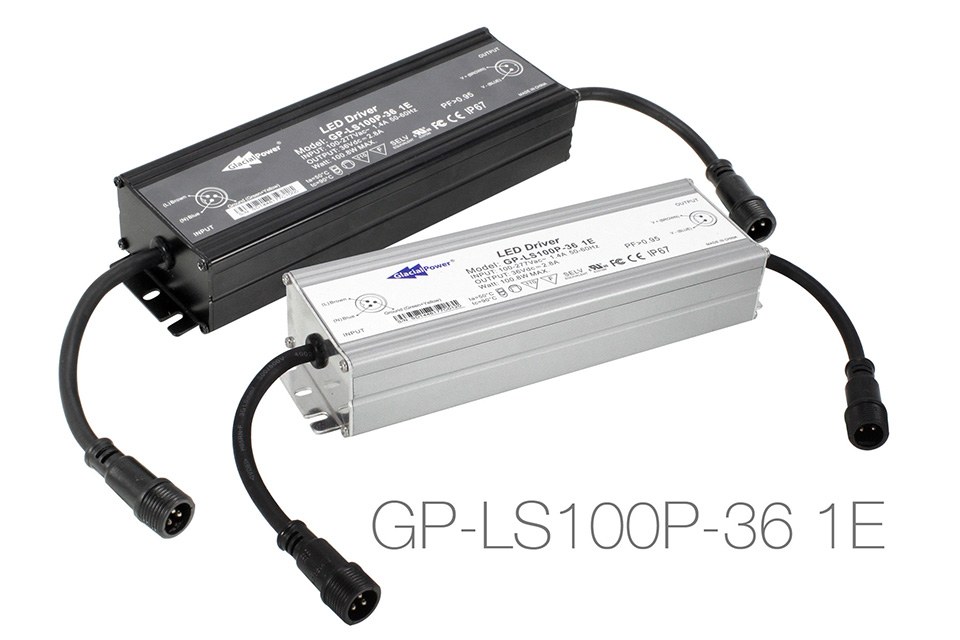

GlacialPower Launches Efficient and Reliable 100 Watt LED Driver

GlacialPower, a division of LED technology manufacturer GlacialTech Inc, is pleased to announce the GP-LS100P-36 1E, a 100 Watt LED driver with a 40V DC output. This rugged and reliable driver is suitable for demanding outdoor or indoor applications – including locations with challenging environmental conditions and fluctuating power supplies – thanks to its very wide input range of 90 to 305 VAC and 47 to 63 Hz, IP67 waterproofing and dustproofing, and full OVP, OCP, SCP, and OTP protection. The GP-LS100P-36 1E is compliant with tough new EU directives for power efficiency, and also offers constant current and constant voltage operation modes.

Key Features:
•    Universal AC input, from 90 to 305 VAC
•    Active Power Factor Correction is built in
•    Safety protections include OVP, OCP, SCP, and OTP
•    Constant current and constant voltage modes
•    IP67 rated for protection from water and dust
•    Compliant with the ErP (EU) No. 1194/2012, Stage 3 directives
•    Consumes less than 0.5W when the unit has no load
•    Takes less than 0.5 seconds to start up at 230VAC
•    Waterproof connectors for convenient maintenance

Efficient and Eco-Friendly:

GlacialPower focuses strongly on environmental protection and power cost reduction with this new LED driver. The driver is fully compliant with Stage 3 of the stringent ErP (EU) No. 1194/2012 directive which aims to greatly enhance the efficiency of energy-related products. The GP-LS100P-36 1E provides active power factor correction for highly efficient use of input power, as well as high power output efficiency. Power consumption is reduced to a very low 0.5 Watts when the unit has no load, in order to easily achieve a much greater energy saving during inactive periods.

Smooth Power, Fast Startup:

The GP-LS100P-36 1E provides high output voltage quality to protect your LED lighting units from harm and also provides a pleasing lighting environment for your staff and customers. The driver's output voltage is clean and stable, with minimal ripple effects and very low noise (below 180 mV), ensuring a constant, flicker-free LED light or other adverse effects. This product provides a highly responsive setup time, under full load, of no more than 0.5 seconds at 230 VAC, and no more than one second at 115 VAC, ensuring extremely timely provision of attractive light on demand, whenever users require it.

Tough, Safe and Reliable:

In order to serve a very wide range of user applications and demands, this versatile LED driver can handle some of the most challenging lighting environments and weather conditions, indoors and out. It is protected from environmental threats by its IP67 rated enclosure, which is both waterproof and dustproof. Safety and long, maintenance-free life is further assured by a full range of electrical and thermal safety features including Over-Voltage Protection (OVP), Over-Current Protection (OCP), Short-Circuit Protection (SCP) and Over-Temperature Protection (OTP).

Specifications

 Model No.

 GP-LS100P-36 1E

Output

DC Voltage

40V

Constant Current Region

30-40V

Rated Current

2.5A

Current Tolerance

-5% ~ +5%

Rated Power

100W

Ripple & Noise (Max.)

180mV

Efficiency at 230 VAC (Typ.)

90%

Voltage Tolerance

-1% ~ 5%

Set up time (Max.)

0.5s / 230 VAC, 1s / 115 VAC, at full load

Input

Voltage Range

90 ~ 305 VAC / 127 ~ 430 VDC

Frequency Range

47 Hz ~ 63 Hz

AC Current (Max.)

1.4A at 115 VAC / 0.7A at 230 VAC

Power Factor

>0.98 at 115 VAC / >0.95 at 230 VAC at full load
(≧0.9 at 230 VAC at 75% load)

THD

<20%

No Load Consumption (Max.)

<0.5W

Inrush Current (Max.)

COLD START 50A at 230 VAC

Leakage Current

<0.75mA / 240 VAC

Read more about the new GP-LS100P-36 1E at GlacialPower's website at  http://www.glacialpower.com/products/led-driver-PFC2.htm

About GlacialPower:

GlacialPower, the power division of GlacialTech, manufactures Switch Mode Power Supply (SMPS) solutions for LED lighting applications. GlacialPower provides LED Drivers and power supplies with a wide wattage range for a variety of applications. GlacialPower power supplies use attractive and contemporary design to deliver quality products that possess innovative features and ease of usability for customers. For details, please visit at www.GlacialPower.com
