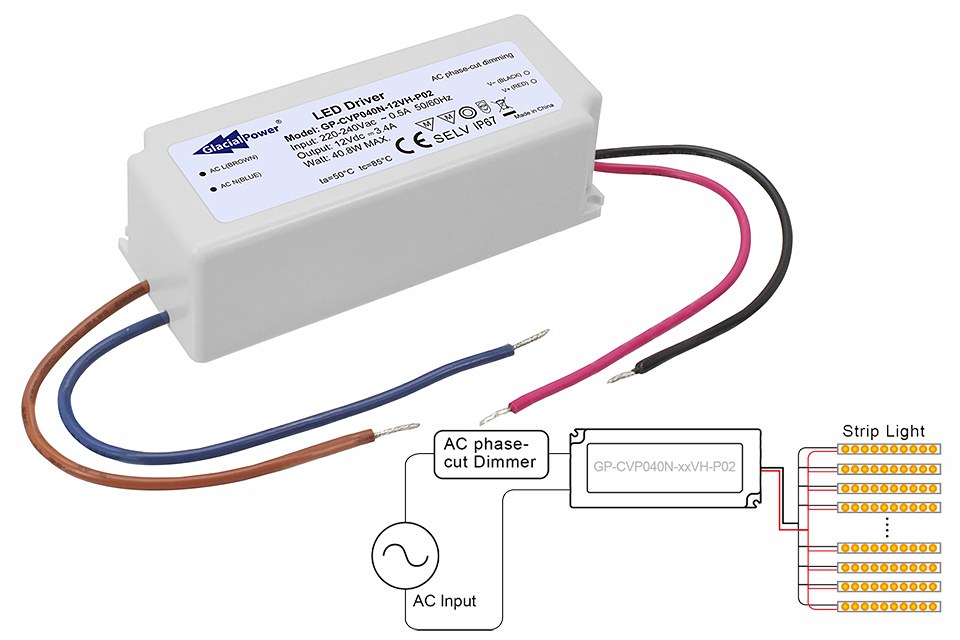

GlacialPower - New GP-CVP040N Series LED Constant Voltage Driver with TRIAC Dimming

GlacialPower, the power division of the LED technology manufacturer GlacialTech Inc, announces the new GP-CVP040N series LED constant voltage driver. It is available in 12 V DC and 24 V DC output rated power of 40.8 W. The driver supports TRIAC dimming function, and appropriates for LED strips application in places such as restaurants, jewelry shop, home and theater.

Features:
•    AC input range from 205 to 256 V AC
•    Constant voltage mode
•    Work with leading edge and trailing edge TRIAC dimmers
•    AC phase-cut dimming
•    IP67 rated
•    Safety protections include OVP, OCP, SCP, and OTP
•    Appropriate for LED strips application
•    2 Years warranty
•    RoHS compliant

The dimming adjustment output of the GP-CVP040N series LED driver ranges from 5% to 100%. Works with leading edge and trailing edge TRIAC dimmers. The typical power conversion efficiency is 82% for 12 V and 84% for 24 V. It supports an AC input voltage range from 205 to 256 VAC.

Specifications:

Model No.

GP-CVP040N-12VH-P02

GP-CVP040N-24VH-P02

Output

Voltage Range

12 VDC

24 VDC

Ripple & Noise (Max.)

0.8Vp-p

0.6Vp-p

Voltage Tolerance

± 5%

± 5%

Dimming Range

5%~100%

5%~100%

Rated Current

3.4A

1.7A

Rated Power

40.8 W

40.8 W

Efficiency (Typ.)

82%

84%

Set up Time (Max.)

0.5S / 230 VAC at full load

Input

Rated Voltage

220~240 VAC

Voltage Range

205~256 VAC

Frequency Range

50/60 Hz

AC Current (Max.)

0.5 A at 230 VAC

Power Factor

> 0.45 at 230 VAC with full load.

Inrush Current (Typ.)

Cold Start 50 A at 230 VAC

Leakage Current (Typ.)

<1 mA / 230 VAC

Protections

Over Voltage

120 % - 150% Output voltage limiting, auto-recovery

Over Current

120% - 150% Constant current limiting, auto-recovery

Over Temperature

110°C - 125°C Temperature limiting, auto-recovery

Short Circuit

Hiccup mode, recovers automatically after fault condition is removed

Others

MTBF

100K hours min. @Ta = 25°C

Dimension
(L x W x H)

107.5x43.5x32 mm; 240 g/pcs

 The fully isolated case design enables an operation temperature range of -20°C to 45°C, which means that the LED driver can be used in most environments. Additionally, with IP67 approval as well as four different protections: Over-Voltage Protection (OVP), Over-Current Protection (OCP), Short-Circuit Protection (SCP) and Over-Temperature Protection (OTP), these drivers are highly secure.

For more information about the GP-CVP040N series, please visit www.glacialpower.com/products/led-driver-CV-TriacDIM-CVP.htm

About GlacialPower:

GlacialPower, the power division of GlacialTech, manufactures Switch Mode Power Supply (SMPS) solutions for LED lighting applications. GlacialPower provides LED Drivers and power supplies with a wide wattage range for a variety of applications. GlacialPower power supplies use attractive and contemporary design to deliver quality products that possess innovative features and ease of usability for customers. For details, please visit at www.GlacialPower.com
