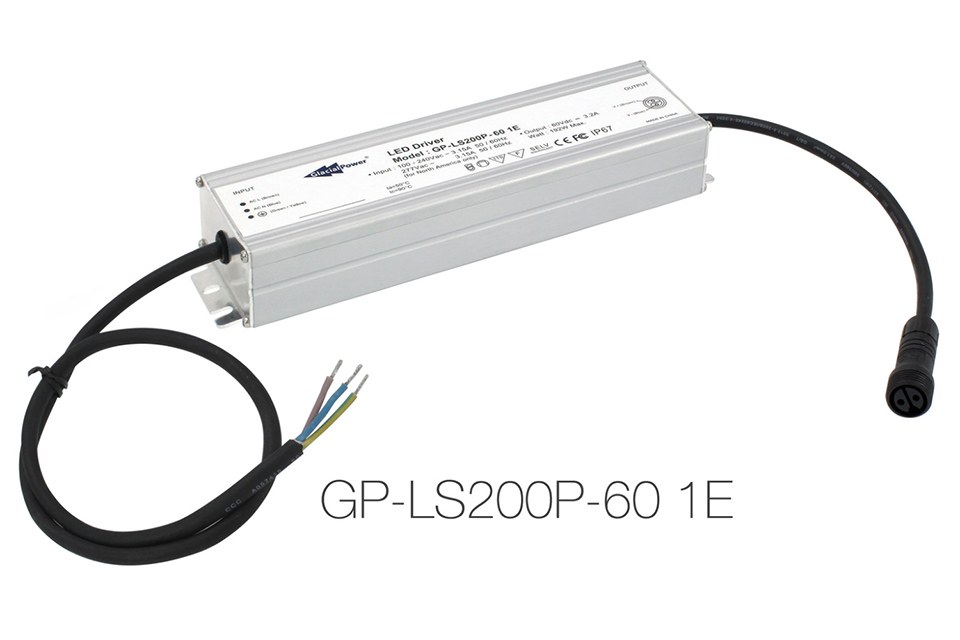

GlacialPower's GP-LS200P-60 1E: A Rugged 192 Watt LED Driver

GlacialPower, a division of LED technology manufacturer GlacialTech Inc., is pleased to announce the new GP-LS200P-60 1E LED driver, providing a 192 Watt, 60V DC output. With IP67 rated environmental protection from water and dust, this newest addition to the company’s range of LED drivers can meet almost any lighting challenge, indoors or outdoors, even in difficult environmental conditions.

Features:
•    Universal AC input, from 90 to 295 VAC.
•    Active Power Factor Correction is built in.
•    Safety protections include OVP, OCP, SCP, and OTP.
•    Constant current and constant voltage modes.
•    IP67 rated enclosure, for protection from water and dust.
•    IP68 waterproof connectors, for convenient maintenance.
•    Starts up in less than 1.5 seconds at 230 VAC.
•    Class I Metal case

The GP-LS200P-60 1E is rugged, reliable, adaptable and very efficient. It handles a wide range of input voltages from 90 to 295 VAC, and 127 to 417 VDC, with support for frequencies of 47 to 63 Hz (the rated voltage is 100 to 277 VAC). The driver offers constant current and constant voltage operating modes.

A safe, energy saving and eco-friendly LED driver
Focusing on reduced power costs and environmental protection, GlacialPower incorporates numerous electrical and thermal safety features across the whole product range. The tough and dependable GP-LS200P-60 1E incorporates features to ensure safe operation and a long, maintenance-free life – these include Over-Current Protection (OCP), Over-Voltage Protection (OVP), Short-Circuit Protection (SCP) and Over-Temperature Protection (OTP).

With active power factor correction the GP-LS200P-60 1E makes efficient use of input power, and the driver also offers high power output efficiency. At full load, power factor is better than 0.98 at 115 VAC, and better than 0.94 at 230 VAC. Even at 80 percent load, the driver still achieves a power factor of at least 0.9 at 230 VAC.

LED driver with IP67/IP68 rating, ready for almost any application or any conditions
The flexible GP-LS200P-60 1E is able to handle a vast range of applications, thanks to its wide input power range support. Protected against environmental threats by its waterproof and dustproof IP67 rated enclosure, the driver handles challenging indoor and outdoor lighting tasks in extreme weather and wet, dirty environments. To save maintenance time and costs, the IP68 rated power connectors can be connected or disconnected without opening the IP67 rated housing.

Stable power ensures this LED driver creates a great lighting environment
To ensuring good lighting quality, without LED flicker, GlacialPower designed the GP-LS200P-60 1E to provide optimal electrical stability. There is minimal ripple in the clean, stable output voltage, with noise levels maintained at less than 600mV. The high output voltage quality also protects your valuable LED units from damage, helping your LEDs reach their maximum possible lifetime, and slashing maintenance and replacement costs. The driver also achieves a startup time below 1.5 seconds at 230 VAC and full load, with a maximum startup time of 3 seconds at 115 VAC and full load.

Specifications:

Model No.

GP-LS200P-60 1E

Output

DC Voltage

60V

Constant Current Region

48-60V

Rated Current

3.2A

Current Tolerance

-5% ~ +5%

Rated Power

192W

Ripple & Noise (Max.)

600mV

Efficiency at 230 VAC (Typ.)

90%

Voltage Tolerance

-1%~+5%

Set up time (Max.)

1.5s / 230 VAC, 3s / 115 VAC, at full load

Input

Rated Voltage

100 ~ 277 VAC

Voltage Range

90 ~ 295 VAC / 127 ~ 417 VDC

Frequency Range

47 Hz ~ 63 Hz

AC Current (Max.)

4A at 115 VAC / 2A at 230 VAC

Power Factor

>0.98 at 115 VAC / >0.94 at 230 VAC at full load
(≧0.9 at 230 VAC at 80% load)

Inrush Current (Max.)

COLD START 80A at 230 VAC

Leakage Current

<0.5mA / 240 VAC


Read more about the new GP-LS200P-60 1E at GlacialPower's website, www.glacialpower.com/products/led-driver-PFC4.htm, or download the datasheet at www.glacialpower.com/products/pdf/GP-LS100P-36%201E.pdf

About GlacialPower:

GlacialPower, the power division of GlacialTech, manufactures Switch Mode Power Supply (SMPS) solutions for LED lighting applications. GlacialPower provides LED Drivers and power supplies with a wide wattage range for a variety of applications. GlacialPower power supplies use attractive and contemporary design to deliver quality products that possess innovative features and ease of usability for customers. For details, please visit at www.GlacialPower.com
