Products, Materials & Tools | Jul 22, 2014

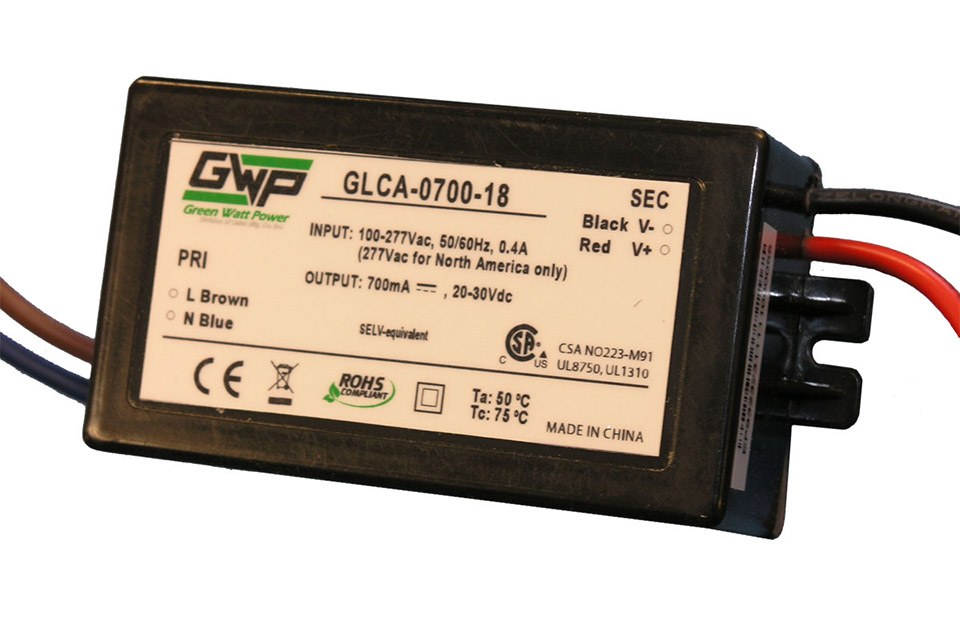

GWP Offers New Compact 18 W LED Power Supply

Green Watt Power, a division of Calex Mfg. Co., Inc., based in Concord California, announces the compact 18 Watt GLCA Series. These constant current LED power supplies offer a more compact solution over the standard Green Watt Power 18 Watt GLC Series which makes the GLCA ideal for space constrained applications. The GLCA has a universal input range of 100 to 305 VAC and offers output currents of 350, 500 and 700mA. The voltage range for the 350mA model is 35 to 52V. The 500mA model has a 28 to 36 V range and the 700 mA offers a 18 to 30 V range. All models are CSA/UL and CE approved and backed by Green Watt Power's Five Year Warranty.

Main Features:
•    Universal AC Input / Full Range (100-305 VAC)
•    100-277 VAC Input for North America
•    CSA/UL Approved
•    CE Approved
•    High Reliability
•    Efficiency up to 80%
•    Over Voltage Protection
•    Short Circuit Protection
•    Over Current Protection
•    Over Temperature Protection
•    Waterproof IP67
•    RoHS Compliant
•    5 Year Warranty

The dimensions of the GLCA are 3.43" x 1.65" x 1.08"H. The 3.43" dimension includes the mounting flanges. The GLCA is fully encapsulated with an IP67 rating. The unit weight is 0.18 Kg. The operating temperature range is -20º to +60°C and the storage range is -40º to +85ºC. All models are RoHS compliant.

The Power Factor Correction for the GLCA is 0.90. Noise and Ripple is 5% maximum. Total Harmonic Distortion is less than 20% for all models. Setup Time is 1.5 s and Rise Time is 200 ms. The Overshoot and Undershoot Response is +/-10%. Input current is 0.4 A at 110 VAC with a full load condition. All models are protected with Over Voltage Protection, Short Circuit Protection, Over Current Protection as well as Over Temperature Protection.

Units are available from stock to 12 weeks. Contact Green Watt Power for pricing. For more information on the 18 Watt GLCA series, go to http://www.greenwattpower.com/pdf/glca18.pdf or contact Green Watt Power at 800-542-3355/925-687-4411 (phone), 925-687-3333 (fax), sales@greenwattpower.com

About Green Watt Power:
Green Watt Power (GWP) is a division of Calex Mfg Co, Inc. and is based in Concord, California. We specialize in power supplies and power solutions with enhanced functionality for LED lighting, Electric Vehicle and related applications.
For the Electric Vehicle market, GWP offers application specific DC/DC solutions as well as chargers up to 1200 Watts. For LED lighting applications GWP specializes in architectural, street, indoor and general purpose lighting, signage, displays and commercial refrigerator and appliance lighting.
Green Watt Power offers a 5 year warranty on all it's products. Our product pricing is among the most competitive found in North America. Our company's growth is a reflection of customer satisfaction - a fact that we take great pride in. We look forward to serving you.
Calex Mfg. Co. Inc. has been in the power supply business for over 50 years with manufacturing facilities in California and Mexico. For more information about Calex, go to the Calex website.
