Products, Materials & Tools | Nov 16, 2010

Introduction DecaLED Touch Panel DMX 4

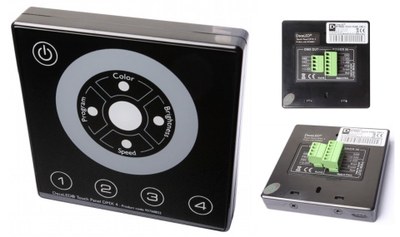

The DecaLED® Touch Panel DMX 4 is a compact LED controller with DMX512 and PWM outputs. The stylish design in glossy black polycarbonate can easily be built into a wall socket. The panel has no buttons but it is pressure sensitive. The device has a user friendly design.

The DecaLED® Touch Panel DMX 4 is ideal for small stand-alone installations where 12V or 24V DC LED products are used, such as DecaLED® Flex RGB, DecaLED® Flex RGB HD and DecaLED® Cove Flex RGB. It is therefor an interesting product for i.e. interior designers, stand builders and restaurants, bars and hotel business.

This panel includes the following features:
• Static color, configured by means of a handy swivel function. 4 color settings can be stored in memory.
• Choose from 10 preset color loops, for which the transition speed and intensity can be adjusted. 4 preferences can be stored in memory.
• Usable as DMX controller.
• When using an external 12V or 24V DC power supply, for example, led strips directly connected to the PWM output.
• Dimming of your choice (0 ~ 4 seconds) for on and off.
• Use up to 2A per channel, in total suited for a maximum of 6A (i.e. 10 meters of DecaLED® Flex RGB).
• Visible indication of the current RGB color on the front of the panel.

Are you interested in this control panel, or do you have another specific question concerning (LED) lighting? Feel free to consult our Sales team at http://www.lagotronics.com/request-information.htm.
