Products, Materials + Tools | Aug 01, 2013

IXYS Announces New High Voltage High Efficiency LED Driver

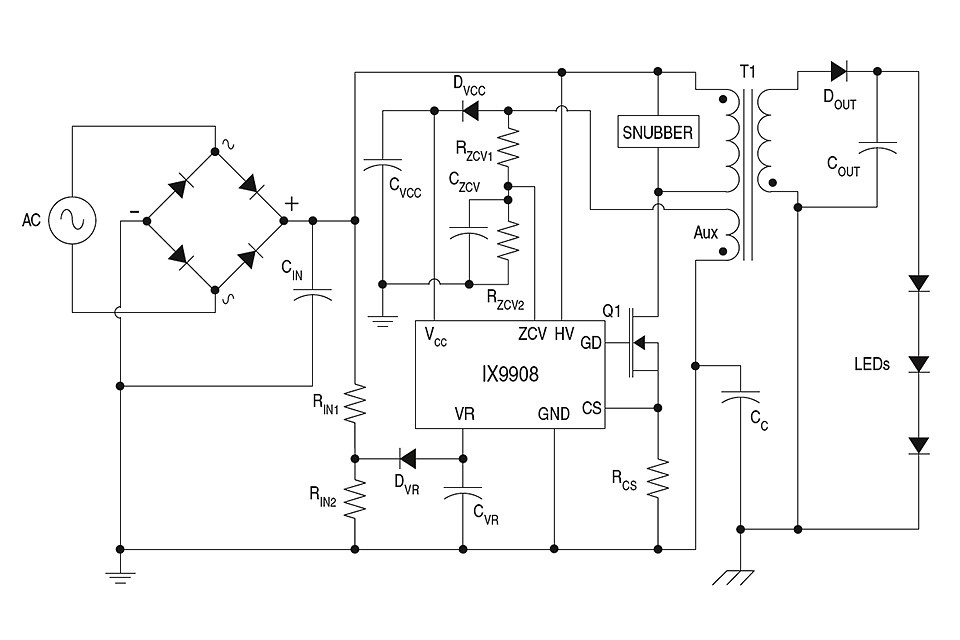

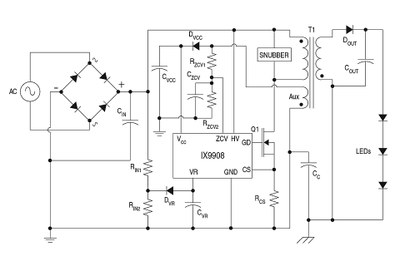

IXYS Integrated Circuits Division (ICD), Inc., a wholly owned subsidiary of IXYS Corporation, announced the immediate availability of the IX9908 High Voltage, Dimmable LED Driver with PFC Control The IX9908 is a quasi-resonant controller that is optimized for dimmable off-line LED lighting applications. The IX9908 incorporates a precise pulse-width modulation (PWM) circuit and cycle-by-cycle peak current control to support flicker-free, phase-cut dimming with a high power factor correction (>98%). Utilizing IXYS ICD's high voltage IC expertise, the IX9908 is rated to 600V, making it suitable for both 120V and 240V offline applications.

Features:
•    Single Stage, Primary Control with PFC and Dimming Features
•    >90% Efficiency
•    Power Factor >98%
•    Wide Operating Voltage Range: Up to 600V
•    Digital Soft-Start
•    Cycle-by-Cycle Peak Current Control Applications
•    Incandescent Bulb Replacement
•    Solid State Lighting
•    Industrial and Commercial Lighting

Applications:
•    Incandescent Bulb Replacement
•    Solid State Lighting
•    Industrial and Commercial Lighting

"It's a significant extension to the lineup of our LED driver products, we offer now a wide range of products for the energy efficient LED lighting industry. Coupled with our wireless MCU-based lighting control applications, with the ZILOG designs, and the IXYS power semiconductors, we again offer our customer the whole solution. Our HVIC designs using our proven rugged technology outperform the competition especially when it comes to higher temperature operation and immunity to latch-up", commented Dr. Nathan Zommer, CEO of IXYS Corporation.

Greater than 90% efficiency can be realized with the IX9908. An integrated high-voltage start up circuit with a digital soft-start provides quick turn on of LED lights. The IX9908 is available in an 8-lead SOIC package which allows for a compact LED driver PCB design.

The IX9908 features extensive protection circuitry against over-voltage, shorted winding, excessive die temperature, and logic supply under-voltage.

The IX9908 is suitable for a wide range of LED lighting applications, including incandescent bulb replacements, decorative lighting, LED tubes, and downlights, and is a cost effective solution for dimmable LED bulbs.

Pricing and Availability:
The IX9908 is available in production quantities. Pricing for OEM quantities of 50KU is $0.43.

For additional information, please contact your local sales representative:
http://www.ixysic.com/home/pages.nsf/locate.rep
or download the IX9908 Data Sheet

About IXYS ICD and IXYS, Inc.:
IXYS Integrated Circuits Division, a leader in the design and manufacture of solid state relays and high voltage integrated circuits, is a wholly owned subsidiary of IXYS Corporation. IXYS Corporation develops and markets primarily high performance power semiconductor devices that are used in controlling and converting electrical power efficiently in power systems for the telecommunication and internet infrastructure, motor drives, medical systems and transportation. IXYS also serves its markets with a combination of digital and analog integrated circuits, power systems and RF GaAs and GaN based products. Additional information about IXYS Integrated Circuits Division and IXYS may be found at www.ixysic.com and www.ixys.com.
