Products, Materials & Tools | Nov 21, 2008

Lagotronics: New DecaLED® Controller 3 Mini

Lagotronics introduces the new DecaLED® Controller 3 Mini. The DecaLED® Controller 3 Mini is designed for 24VDC led installations, in which the power and 8 outputs of the DecaLED® Controller 3, or the high-amperage outputs from the DecaLED® Controller 4 aren't needed.

DecaLED® Controller 3 Mini has a 100W PSU and 2 outputs with screwterminals. The DecaLED® Controller 3 Mini is ideal for installations in smaller venues in which fully RGB lit led products are requested. More information on the DecaLED® Controller 3 Mini and the products that may be used in conjunction with the controller can be found on the dedicated productpage.

The DecaLED® Controller 3 Mini offers a solution for dimming all 12VDC products. The DecaLED® Controller 3 Mini is ideal for installation in small and narrow service rooms. The controller 3 mini combines a driver with a 100W PSU.

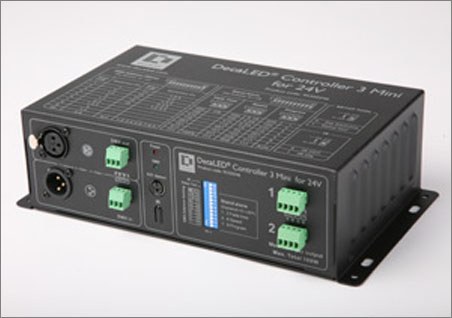

The DecaLED® Controller 3 Mini is a small version of the DecaLED® Controller 3 and the lightest of all 24VDC controllers. The Controller 3 Mini is a professional led controller for led products with a 24VDC input. The DecaLED® Controller 3 Mini is suited for powering and dimming of all 24VDC led products and can handle a maximum load of 6Amps, with a maximum of 3Amps per output. The controller is 243 x 150 x 73 mm and needs a input voltage of 230VAC. The DecaLED® Controller 3 Mini is delivered with a remote controland an external infrared eye. With these accessories and the dipswitches it is possible to select a diversity of standard programs, colours and effects. The Controller 3 Mini is also equipped with professional XLR 3 connector and screw terminals for DMX signals.

There are various accessories available for the DecaLED® Controller 3 Mini like starter cables, spare remotes, spare infrared eye's and the DecaLED® Setup Tool.

Besides the DecaLED® Controller 3 Mini there are two other DecaLED® Controllers available for 24VDC products. The DecaLED® Controller 3, with 8 outputs for more channels and the DecaLED® Controller 4, for large installations that require outputs that can handle longer lengths of Cove Flex RGB.
