MAZeT Presents New JENCOLOR ICs for Photometry at the Light & Building 2012

At this year's Light & Building 2012 trade show in Frankfurt am Main, Germany (hall 4.0, stand F17), MAZeT GmbH will unveil two new ICs for the target application of LED light control. The JENCOLOR MTCSiCF color sensor in its space-saving QFN16 housing (4 x 4 x 0.9 mm) provides colorimetry in accordance with the CIE1931/DIN5033 standard. The sensor outputs send photocurrents and can be directly integrated into LAB/LUV color spaces as XYZ values.
MAZeT Presents New JENCOLOR ICs for Photometry at the Light & Building 2012

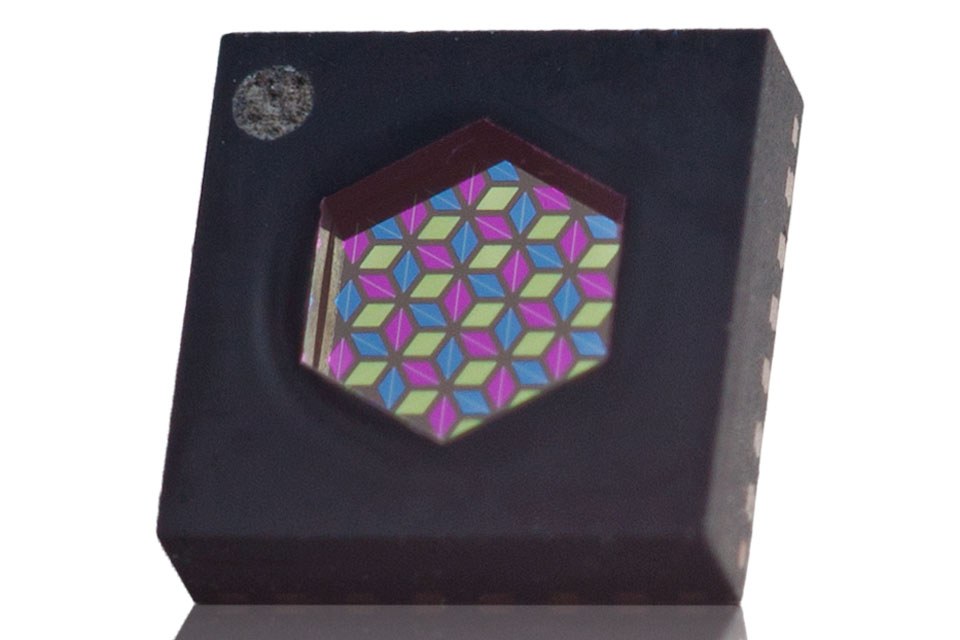

MAZeT's new color sensor MTCSiCF for photometry is placed in a new designed housing

MAZeT's new color sensor MTCSiCF for photometry is placed in a new designed housing

MAZeT's new color sensor MTCSiCF for photometry is placed in a new designed housing

The sensor consists of photodiodes whose spectral sensitivity curves are achieved using interference filters. These filters do not exhibit any demonstrable aging or temperature drift.

The second IC handles signal processing and was specially designed for the three-range JENCOLOR color sensors.  The MCDC04AQ features an ADC whose resolution can be varied over the integration time. The highest resolution is 16 bits and is achieved at an integration time of 1 s. The highest sensitivity is at 20fA/LSB.The MCDC04AQ also offers the option for external synchronization of the measuring process. It is internally temperature-compensated.

The combination of color sensor MTCSiCF with MCDC04AQ is excellently suited for photometry applications (brightness, color and temperature), for determining current values for control of spectrally mixed LED light sources or as sensors for monitor calibration for flat displays with LED backlighting. In addition to JENCOLOR sensor IC products, MAZeT also offers evaluation kits and application support.
