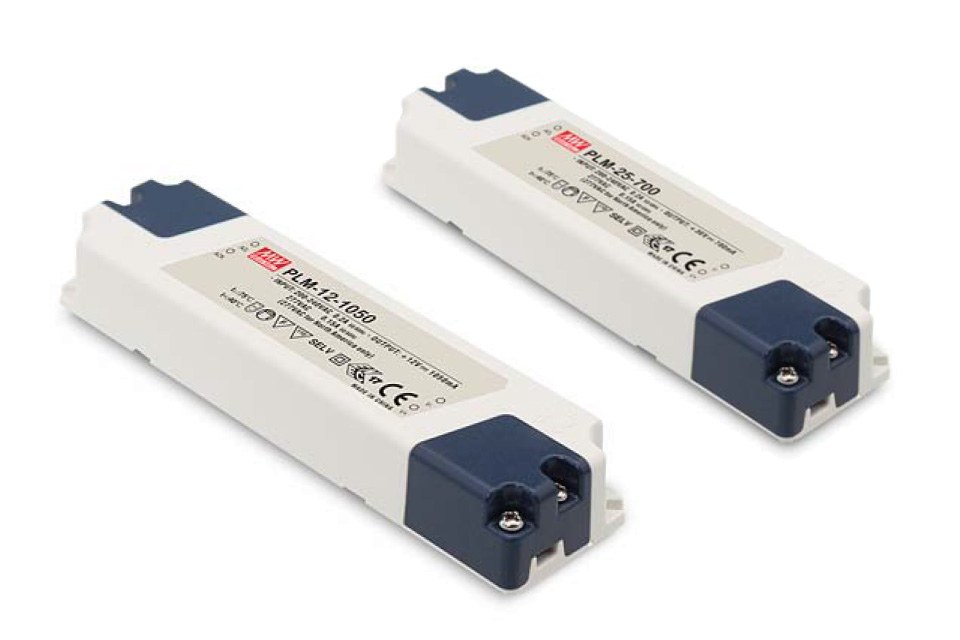

Mean Well Adds 12 W and 25 W Constant Current Versions to Its PLM Driver Sereies

After the launch of 40 W AC/DC economical LED power supply PLM-40 series, MEAN WELL further introduced 12 W/25 W LED power supply with PFC function PLM-12/25 series, to fulfill the lower wattage requirement of the LED lighting market. Featuring 110-295 VAC input range and constant current design, both series have 4 kinds of constant current outputs from 350-1050 mA for selection.

Main Features:
•    110~295 VAC input range
•    Constant current output: 350/500/700/1050 mA
•    Built-in active PFC function
•    No load power consumption < 0.5 W
•    Set up time <500 ms
•    87% high efficiency
•    Plastic case with 94V-0 fire prevention level
•    I/O push clamp terminal block
•    Isolation class II, no FG
•    Cooling by free air convection
•    Working temperature: -30 to +50°C (PLM-12)/ -30 to +45°C (PLM-25)
•    Protections: Short circuit
•    Certificates: UL / CUL / ENEC / CB / CE
•    Dimension (LxWxH): 145x 38x 22 mm
•    2 years warranty

After the launch of 40 W AC/DC economical LED power supply PLM-40 series, MEAN WELL further introduced 12 W/25 W LED power supply with PFC function PLM-12/25 series, to fulfill the lower wattage requirement of the LED lighting market. Featuring 110-295 VAC input range and constant current design, both series have 4 kinds of constant current outputs from 350-1050 mA for selection.

With single stage PFC circuit design, PLM-12/25 series are the cost effective power solutions to reach high PF value (PF>0.9). They also comply with harmonic current limitation per EN61000-3-2 Class C and fulfill the general lighting requirements. Full series features no load power consumption <0.5W and set up time <500ms, which comply with the ErP regulation required by European Union for lighting fixtures.

PLM-12/25 series possess up to 87% of high efficiency, so that they can work between -30~+45°C or +50°C by only free air convection, which fit for the high temperature working environment in closed lighting systems. Enclosed by UL 94V-0 rated plastic case and Class II double isolation AC input design (without FG), these units can effectively prevent users from electrical shock. The I/O terminals are designed with screw-less clamp style terminal block, which allows users a more convenient wiring installation.

The complete series offers built-in short circuit protection function and comply with global lighting certificates per ENEC EN61347-2-13, EN62384, UL8750, CB, and CE, which can greatly guarantee your operation safety. Suitable applications include all kinds of indoor LED lighting like office lighting, commercial lighting, and indoor LED decorative lighting.

For additional information on both new constant current drivers drivers you may visit www.meanwell.com or download the PLM-12 and PLM-25 datasheets.
