Products, Materials + Tools | Nov 14, 2014

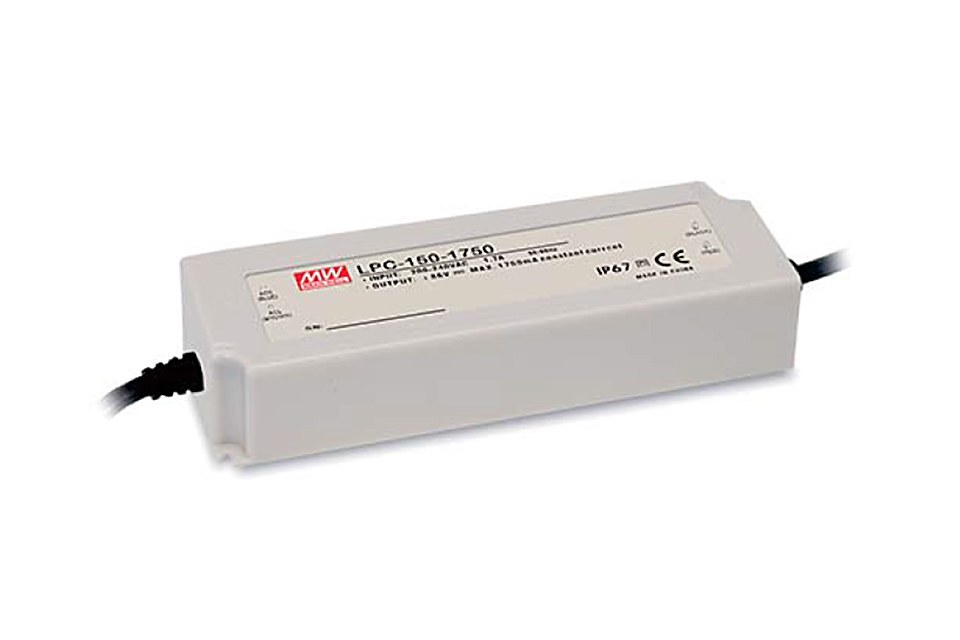

Mean Well's LPC-150 Extends the Power Range of the LP Family to 150W

The LP family, a typical series for the economical line, is widely adopted by the entry-level lighting market; for constant current output applications, this family has offered LPLC-18/LPHC-18 (18 W), LPC-20 (20 W), LPC-35 (35 W) and LPC-60 (60 W). In order to fulfill the requirements for the higher wattage, MEAN WELL extends the wattage up to 150 W, unveiling LPC-150 series. With the Class II (no FG), and non-PFC design, as well as the plastic case, LPC-150 is highly competitive in terms of cost.

Features:
•    180~305VAC input range
•    Constant current (C.C.) output: 350/500/700/1050/1400/1750/2100/2450/2800/3150mA
•    90% high efficiency for entire series
•    Fanless design, cooling by free air convection
•    Working temperature: -25~+50℃
•    IP67 design
•    Class II power unit (no FG)
•    94V-0 flame retardant plastic enclosure
•    Protections : Short circuit / Over voltage / Over temperature
•    Approvals: EN 60950-1/CE
•    Dimension(LxWxH):191 x 63 x 37.5mm
•    2 years warranty

LPC-150 series accepts the input from 180 VAC through 305 VAC and provides ten kinds of models ranging between 350 mA~3150 mA that the related LED applications use the most frequently. The entire series delivers a high efficiency up to 90%; moreover, the interior of this model is fully potted with heat-conducted silicone which effectively enhances the heat dissipation capability, so that without the built-in fan this series can work under -25~+50°C by free air convection. LPC-150 series is verified for the IP67 protection level by the third-party certification institute, witnessing the ability of sufficiently preventing the internal electrical components from the damages of dust and moisture. Other functions cover the short circuit protection, the over voltage protection and the over temperature protection. Suitable applications include decorative/architectural lighting, LED wash wall lamp, and other constant current LED lighting related applications.

Mean Well has been leading in the LED power supply field for years. Our products of various levels – the economical line, the middle class and the high level – have built a supreme credit and rating in the industry.

About Mean Well:
Mean Well is one of the leading switching power supply manufacturer in Taiwan. Established in 1982, it gained ISO-9001 certification in 1994. Our product lines include AC/DC switching power supplies, DC/DC converters, DC/AC inverters and battery chargers.
Mean Well dedicated in developing energy-saving concept products for many years. Since 2006, we started to endeavor the effort to the LED / outdoor power supply development. Thus far, full range of LED power family with more than 100 models from 18W to 240W was launched in the market with utmost success. Most of them are also comply with specific norms of UL1310 Class 2, EN61347-2-13, EN61000-3-2 Class C (harmonic current) and IP64~67. For more details, please visit www.meanwell.com.
