Products, Materials + Tools | Jun 27, 2016

New 1,200/1,500 mA DC-DC CC LED Drivers from Mean Well

Mean Well has released LDD-L (300-1500 mA, step down mode and low voltage input), LDD-H (300-1000 mA, step down mode and high voltage input) and LDB-L (300-600 mA, buck-boost mode and low voltage input) series into the DC-DC LED constant current driver market for years and has been widely adopted. In order to further meet the application demands, Mean Well pushes the output current of LDD-H series up to 1200/1500 mA and is pleased to unveil LDD-1200-1500H/HW models.

Features:
•    Constant current step-down mode
•    Wide input (9~52 VDC) and output (2~46 VDC) range
•    High working efficiency up to 96%
•    Wide working temperature range:-40~+85°C
•    Comply with EMI without any additional components (EN55015 and FCC part 15)
•    Protections:Short circuit / Over temperature
•    94V-0 flame retardant plastic case
•    Built-in PWM dimming and remote ON/OFF control functions
•    FCC/CE approved
•    Dimension (L x W x H):31.8 x 20.3 x 12.2 mm
•    3 years warranty

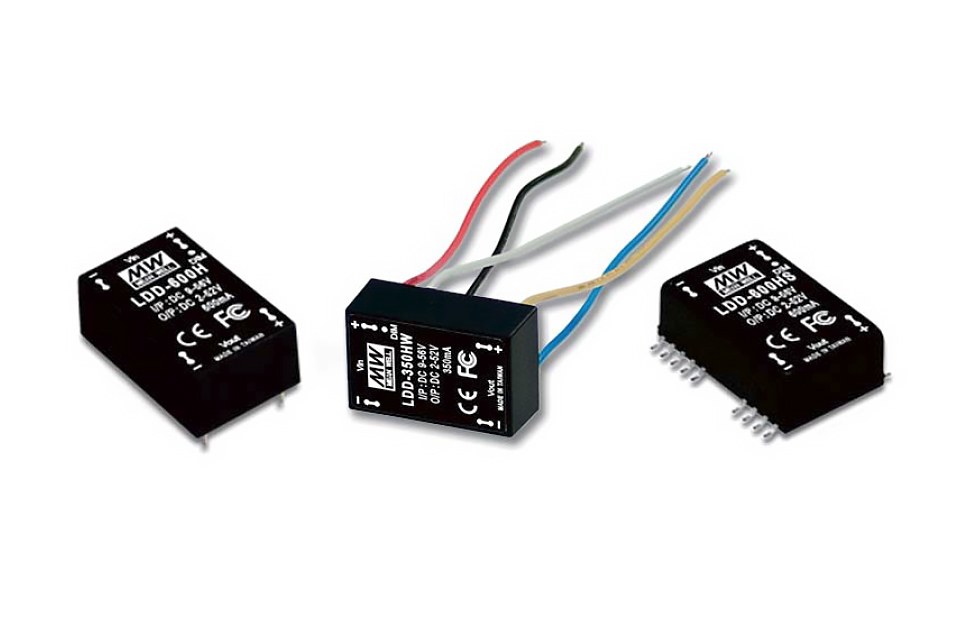

These two series are both constant current step-down mode power module with 9-52 VDC high voltage input and 2-46 VDC output. Having both the PIN style (H-Type) and the wire style (HW-Type), the internally potted design makes them able to withstand water and dust. Both exploit non-isolated buck topology design that the highest working efficiency reaches 96%. The dimension of the whole LDD-H/HW family are all 31.8 x 20.3 x 12.2 mm; it is convenient for those lighting system designers who have already adopted products of Mean Well but require a higher output current to upgrade by using new drivers directly without changing the initial circuit design.

The typical applications of DC-DC LED constant current drivers is to connect them in back of the AC-DC constant voltage type LED drivers, providing a constant current to drive the LED luminaires that reach the stable constant current state and extend the life-span of the luminaires. These products are very suitable to be applied to the outdoor or indoor LED lighting systems which utilize the AC-DC LED drivers of Mean Well, such as: street lighting, landscape lighting, tunnel lighting, household lighting, commercial lighting, and so on.

For additional information, please visit http://www.meanwell.com or download the LDD-H/HW Datasheet

About Mean Well:

Established in 1982, Mean Well is a leading standard switching power supply manufacturers in the world. Mean Well currently operates under five financially independent but cooperating companies in Taiwan, China, USA and Europe. The five companies include Mean Well Enterprises Co., Ltd., Mean Well (GuangZhou) Electronics Co., Ltd., SuZhou Mean Well Technology Co., Ltd., Mean Well USA, Inc. and Mean Well Europe B.V.. Our product lines include AC/DC switching power supplies, DC/DC converters, DC/AC inverters and battery chargers.
